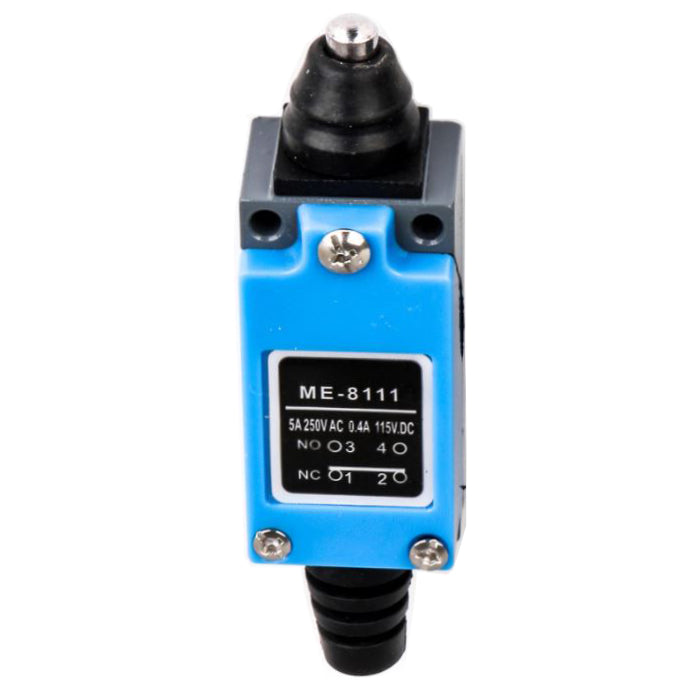

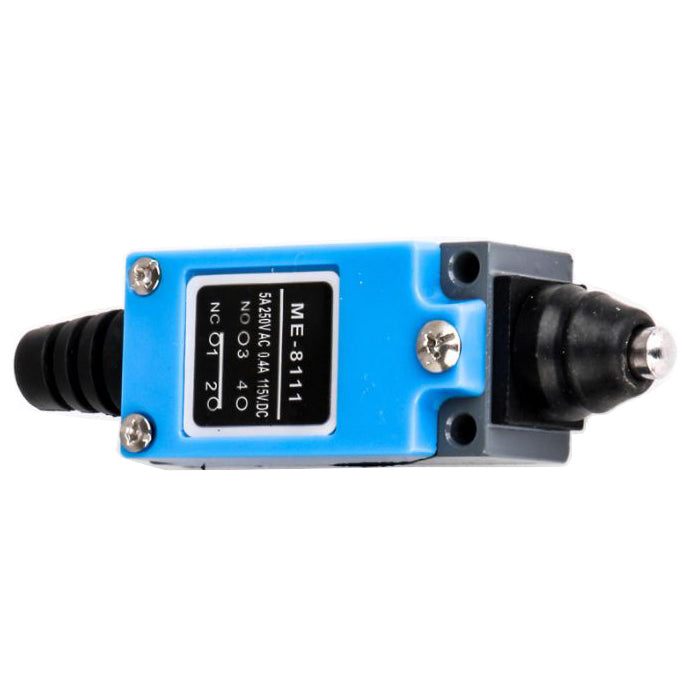

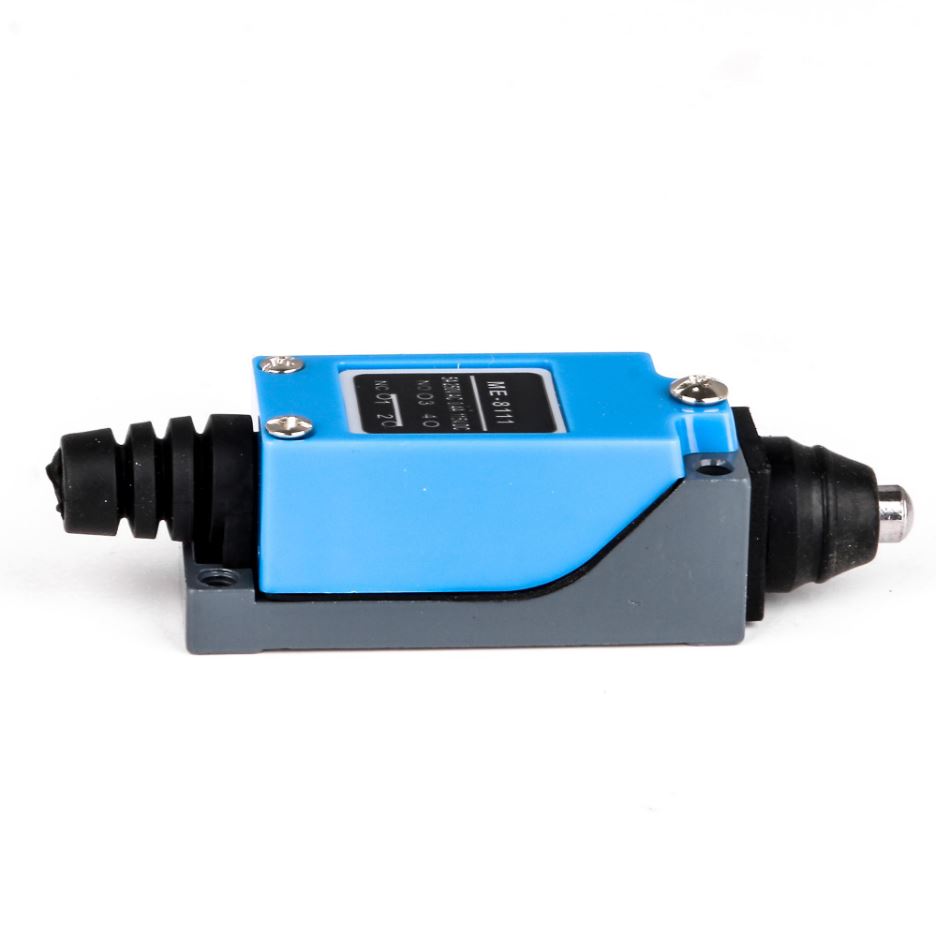

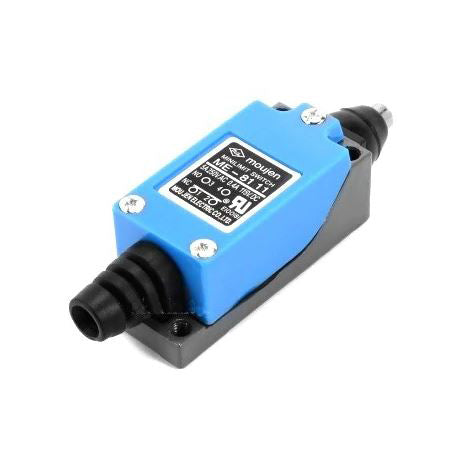

Limit Switch ME-8111, 5A, Plunger, Voltage 250V AC
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Industrial Plunger Limit Switch for Automation
The ME-8111 plunger limit switch offers precise control for industrial machinery, automatic gates, and production equipment. With IP66 protection and a 2NC+2NO configuration, it is a robust solution for demanding environments where reliability matters. Simple screw mounting, automatic reset, and durable construction for daily wear and tear.
What you get with this product
- IP66 protection against dust and water jets — works reliably in workshops, garages, or industrial environments
- Universal 2NC+2NO configuration — connect both normally closed and normally open circuits on the same device
- Automatic plunger reset — returns to its initial position by itself after actuation, without manual intervention
- 5A at 250V AC capacity — supports standard industrial loads for automation and electrical equipment
- Quick mounting with 2 screws — standard hole spacing 56x21mm, stable mounting on any metal surface
- Shock and vibration resistance — plastic and metal housing with rubberized plunger absorbs repeated impacts
How it works and how to install it
The switch is activated by pressing the plunger — ideal for detecting the position of doors, covers, movable arms, or moving parts. Resetting is done automatically by an internal spring when the object withdraws. Mounting requires 2 fixing screws through the 4.5mm holes located at the standard distance of 56x21mm. Electrical connection is made through the 4 terminals (2 normally closed, 2 normally open), allowing maximum flexibility in designing control circuits.
Frequently Asked Questions
Is it water and dust resistant if I install it outside the workshop?
Yes, IP66 protection ensures complete dust-tightness and resistance to strong water jets, making it suitable for outdoor installation or in humid environments.
Can I connect both normally closed and normally open circuits simultaneously?
Yes, the 2NC+2NO configuration means 2 normally closed and 2 normally open independent contacts, usable simultaneously in the same circuit or separately.
How resistant is the plunger to intensive daily use?
The 6.8mm plunger with rubber protection and automatic spring reset is designed for hundreds of thousands of cycles in industrial environments with vibrations and shocks.
Technical Specifications
| Model | ME-8111 |
| Rated Voltage | AC 250V, 5A / DC 115V, 0.4A |
| Contact Configuration | 2 NC + 2 NO |
| Protection | IP66 |
| Actuator Type | Plunger with automatic reset |
| Plunger Diameter | 6.8 mm |
| Mounting Hole Distance | 56 x 21 mm |
| Fixing Hole Diameter | 4.5 mm |
| Overall Dimensions | 99 x 28 x 25 mm (L x W x H) |
| Materials | Plastic, metal, rubber |
| Colors | Blue, gray, black |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. 30-day return policy from receipt. Fast delivery by national courier with SMS and email confirmation.
