Limit Switch ME-8107, Voltage 250V AC 5A, Rotary Length 11.8cm
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun

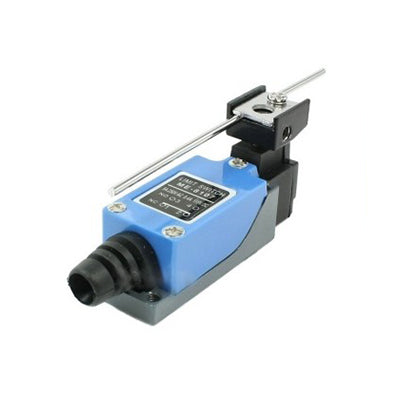

Industrial Limit Switch with Adjustable Rotary Rod 11.8 cm
This ME-8107 limit switch with a movable metal rod on an adjustable arm is the professional solution for automatic control of industrial and household equipment. Ideal for automatic gates, garage doors, machine tools, and automation systems, it offers a 1NC + 1NO contact configuration and resistance at 250V AC 5A.
What you get with this product
- Precise control of equipment stopping and starting — the 11.8 cm rod allows fine adjustment of the activation point
- Simple mounting on any surface — pre-marked fixing holes at 56 x 21 mm, no complex modifications required
- Maximum versatility — works with gates, automatic doors, milling machines, lathes, grinders, and industrial installations
- Industrial durability — resistant plastic housing and metal components for intensive use
- Electrical safety compliant with standards — 1NC + 1NO configuration for complex automation circuits
- Reliable momentary action — instant response to contact, without delays or switching failures
How it works and how to install it
The switch is fixed to the desired support through the two mounting holes, and the metal rod is adjusted so that it is actuated by the movable element of the system. Upon contact, the circuit instantly switches between the NC (normally closed) and NO (normally open) positions, stopping or starting the equipment. Installation requires connecting the three electrical terminals according to the circuit diagram — an electrician can complete the assembly in 15-20 minutes.
Frequently Asked Questions
Does it work with automatic gate systems at 220V?
Yes, it supports up to 250V AC 5A, so it is compatible with most residential and industrial automatic systems.
What does the 1NC + 1NO configuration mean?
It means you have one normally closed and one normally open contact, allowing you to control either the stopping or starting of equipment when the rod is actuated.
Can the rod length or actuation angle be adjusted?
The rod has a fixed length of 11.8 cm, but the arm is rotatable, allowing the actuation angle to be adjusted according to the application.
Technical Specifications
| Model | ME-8107 |
| Rated Voltage | AC 250V 5A, DC 115V 0.4A |
| Contact Configuration | 1 NC + 1 NO |
| Actuator Type | Momentary Rotary Lever |
| Rotary Rod Length | 11.8 cm |
| Overall Dimensions | 120 x 28 x 41 mm (L x W x H) |
| Mounting Hole Distance | 56 x 21 mm |
| Fixing Hole Diameter | 4.3 mm |
| Housing Material | Industrial Plastic and Metal |
| Action | Momentary (on-off, off-on) |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current legislation. You have the right to return within 30 days of receipt, without justification. Delivery is fast by courier, with confirmation throughout the transport.
