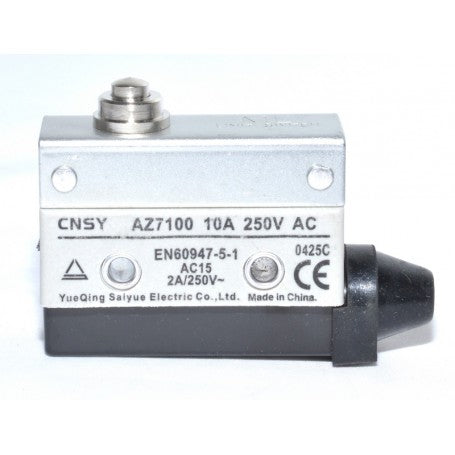

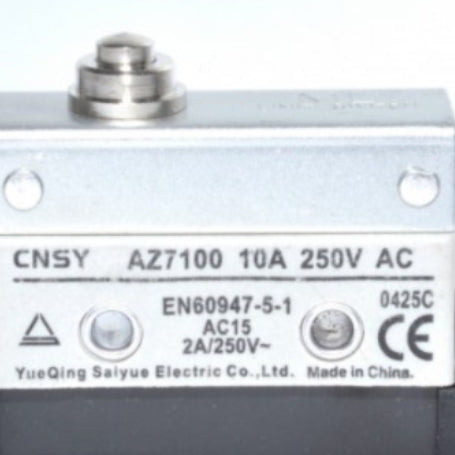

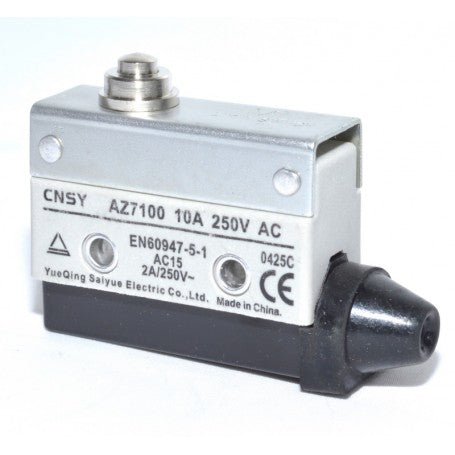

AZ 7100 Push Button Limit Switch, Instantaneous, 10A, Voltage 250V AC
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Industrial Snap Action Limit Switch
Automatically controls equipment and automation systems by detecting mechanical position. This plunger-type limit switch ensures instantaneous stopping or starting of industrial systems, ideal for automatic gates, garage doors, machine tools, and production lines. EN60947-5-1 certified, it supports up to 10A at 250V AC.
What you get with this product
- Quick mounting on any metal or wooden surface — two pre-drilled fixing holes, screws included
- Precise actuation by pressing — a travel of only 2mm ensures instantaneous detection without delay
- Industrial durability — galvanized metal casing resists shocks, vibrations, and difficult working conditions
- Simple connection — two electrical terminals for direct integration into control circuits up to 250V AC
- Certified safety — EN60947-5-1 compliance for use in industrial automation and equipment
- Maximum versatility — compatible with automatic gates, industrial doors, lathes, milling machines, conveyor belts, and control systems
How it works and how to install it
The switch is fixed to the stationary frame of the equipment using the two mounting holes. When the movable element (door, gate, machine table) presses the metal button by 2mm, the electrical contact instantly switches, sending the stop or start signal to the control system. Connection is made via the two AC15 terminals — one wire to common, the other to the control circuit. No advanced knowledge is required, just follow the correct polarization according to the equipment's electrical diagram.
Frequently Asked Questions
Can I use this switch for a 230V automatic gate?
Yes, it is designed precisely for such applications. It supports up to 250V AC and 10A, making it compatible with most residential and industrial automation systems.
How much does the button need to be pressed to actuate?
The actuation travel is only 2mm, enough to detect the position without requiring excessive pressure. This short travel extends the lifespan of the switch.
Does it withstand moisture or dust in the workshop?
The galvanized metal casing and flame-retardant ABS plastic provide good protection in normal industrial environments. For outdoor or very humid environments, additional protection or a junction box is recommended.
Technical Specifications
| Model | AZ7100 |
| Rated Voltage | 250V AC |
| Max Current | 10A |
| Actuation Type | Instantaneous push button |
| Button Travel | 2mm |
| Dimensions | 53/75 x 32/55 x 20 mm |
| Housing Material | Galvanized metal + flame-retardant ABS plastic |
| Color | Gray + Black |
| Standard Compliance | EN60947-5-1, AC15 |
| Manufacturer | YueQing SaiYue Electric Co., Ltd. |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. You have the right to return it within 30 days of purchase. Fast delivery by courier throughout the country, secure packaging for transport protection.
