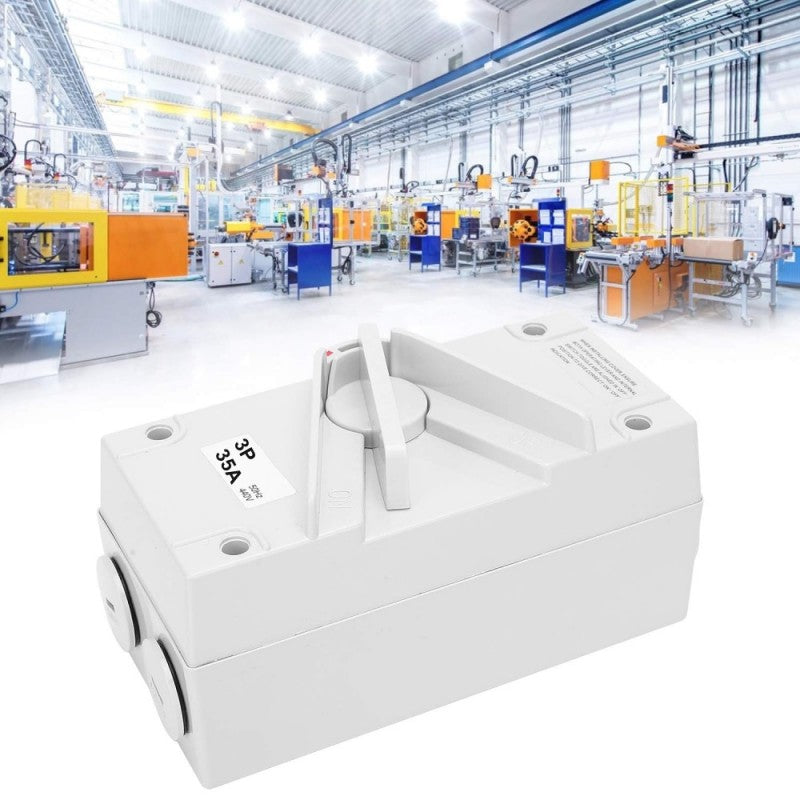

Waterproof Isolator Switch 3P - 35A / 440V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Waterproof 3P Isolator Switch for Safe Industrial Installations
The 3P 35A isolator switch with IP65 protection ensures quick and safe disconnection of industrial equipment in wet or dusty environments. The robust flame-retardant ABS plastic housing resists impact, UV, and chemicals, making it ideal for machinery, production lines, and outdoor installations that require superior protection.
What you get with this product
- Full IP65 protection against water and dust — works flawlessly in aggressive industrial environments
- Safe 440V isolation with 35A capacity — quick disconnection of machinery without risk of electrocution
- Impact-resistant flame-retardant ABS housing — withstands mechanical shocks and high temperatures without deformation

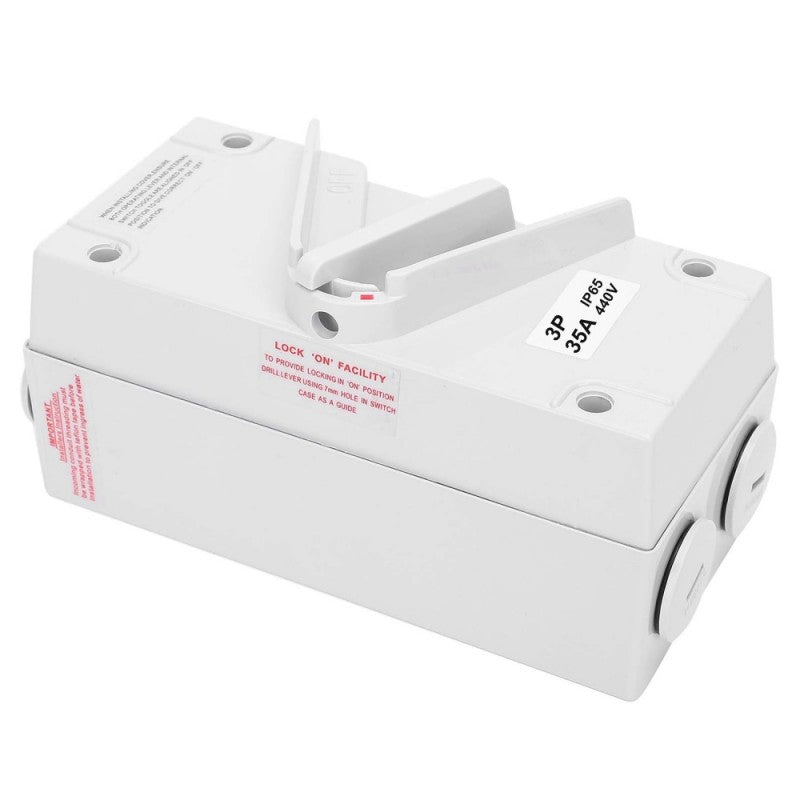

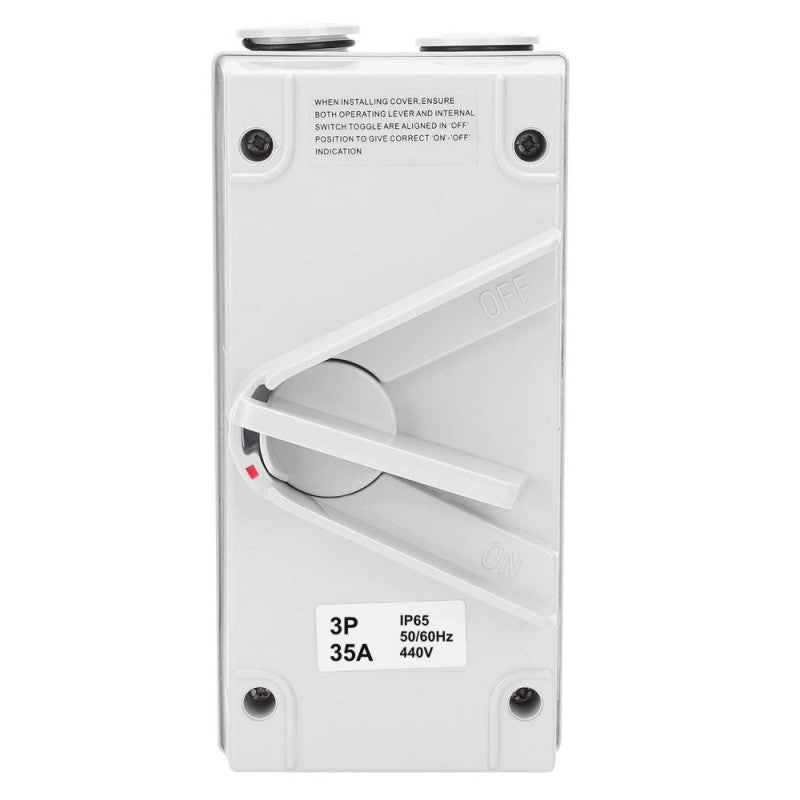

- Visible ON/OFF indicator on the handle — check the switch status at a glance, even from a distance
- Quick mounting with integrated cable glands — connect cables directly into the sealed housing, without additional accessories
- IEC60947-3 AC22A/AC23A compliance — product approved for professional industrial use
How it works and how to install it

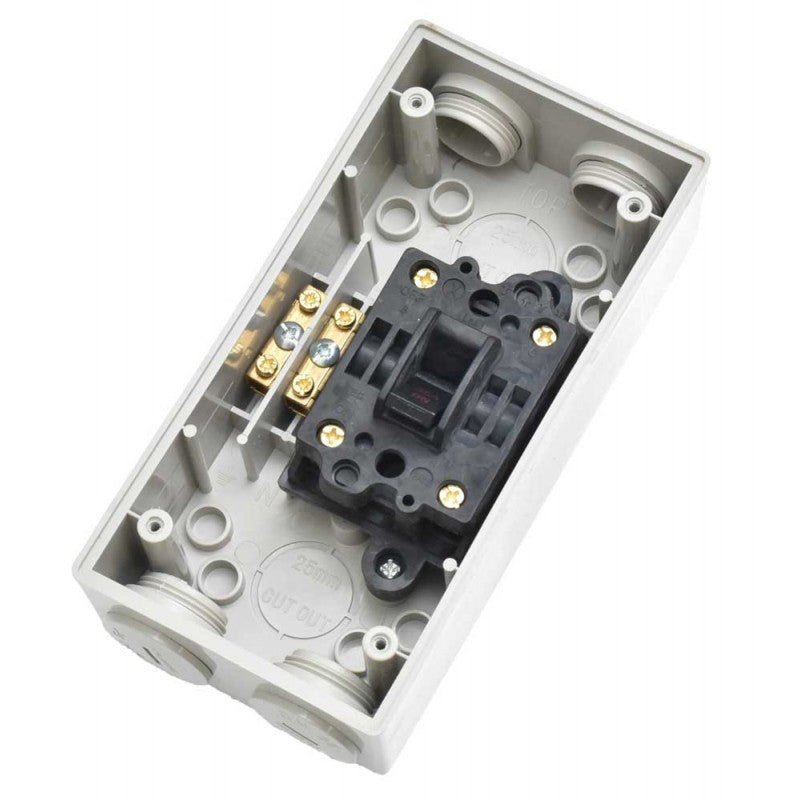

The switch is mounted on a wall or panel using its 4 fixing points, and cables are inserted through the sealed cable glands on the sides. The external handle operates the internal three-pole contact mechanism, allowing simultaneous disconnection of all 3 phases. The position indicator clearly shows whether the circuit is ON or OFF. Installation requires basic electrical knowledge — connect according to the diagram inside the cover, ensuring that the handle and the internal switch are in the same OFF position.
Frequently Asked Questions
Can it stay outdoors all year round, even in winter or rain?
Yes, IP65 protection and UV-resistant material allow outdoor mounting without degradation. It resists humidity, dust, and temperatures between -25°C and +55°C.
Can it be used for a 7.5 kW three-phase motor?
Yes, the 35A capacity at 440V covers three-phase motors up to 15 kW in AC22A operation. Check your motor's nominal consumption before installation.
How do I know it's correctly and securely closed?
The cover locks with 4 screws — tighten uniformly until the sealing gasket is fully compressed around the entire perimeter. The cable glands must be tightened on the cable to maintain IP65.
Technical Specifications
| Rated current | 35A |
| Rated voltage | 440V AC |
| Operational voltage | 240/415V AC |
| Frequency | 50/60 Hz |
| Number of poles | 3P (three-pole) |
| Compliance standard | IEC60947-3 |
| Utilization category | AC22A / AC23A |
| Protection rating | IP65 (waterproof) |
| Housing material | Flame-retardant ABS plastic |
| Dimensions | 160mm x 78mm x 66mm |
| EAN | 0781499725673 |
Warranty and Support
You benefit from a 24-month warranty according to Romanian legislation and a 30-day return policy. Delivery is fast via national courier. The product is securely packaged for transport and comes with installation instructions.
