1-0-2 Changeover Switch with Came 10A/1.7KW
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

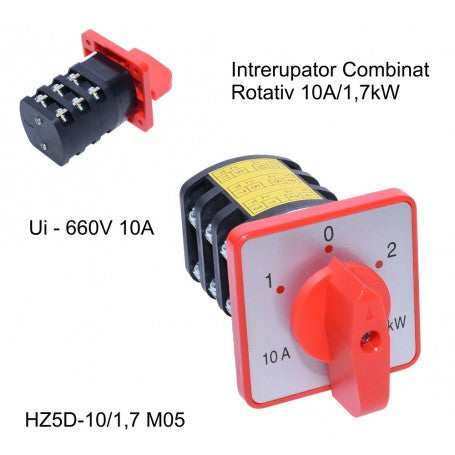

1-0-2 Rotary Cam Switch for Industrial Machines
This 10A cam switch and rotary selector ensures safe control of industrial motors and equipment with three distinct positions. Built for long-term reliability, it supports up to 1,000,000 switching cycles and operates in industrial environments at temperatures between -2°C and +70°C. The professional solution for workshops, production lines, machinery, and electric pumps.
What you get with this product
- Precise control with three operating positions (1-0-2) — quickly select the motor or equipment's operating direction
- Guaranteed industrial reliability — tested for 1,000,000 cycles, withstands harsh continuous working conditions
- Quick panel mounting — simple 51mm diameter cutout, secure fixing with screw clamps
- IP42 protection after installation — resistance to dust and splashing, ideal for industrial environments and workshops
- Supports loads up to 660V AC and 10A — compatible with most single-phase and three-phase industrial motors

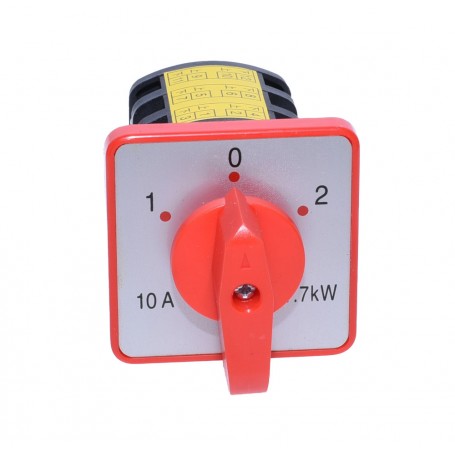

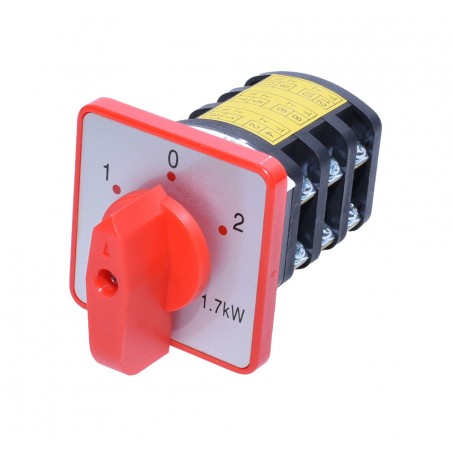

- Clear visual indicator — red knob and visible markings for positions 1, 0, and 2, eliminating operating errors
How it works and how to install it
The switch is mounted by cutting a 51mm hole in the electrical panel or machine casing. Connect the wires to the screw terminals according to the electrical diagram (marked on the body), insert the switch into the hole, and secure it with the included nut. Operation is simple: rotate the red selector to position 1 or 2 to power the desired circuit, and in position 0, the switch completely cuts off power. Suitable for controlling motor rotation direction, selecting between two circuits, or starting/stopping with a neutral position.
Frequently Asked Questions
Can I use the switch to change the direction of rotation of an electric motor?
Yes, it works perfectly for reversing phases in single-phase or three-phase motors, a standard application in workshops and on machinery.
How difficult is it to mount the switch in the electrical panel?
Mounting is simple: cut a 51mm hole, insert the switch, secure with the nut, and connect the wires to the screw terminals. Installation takes less than 15 minutes.
Does it withstand moisture and dust in the workshop?
After correct installation, the switch has an IP42 protection rating, protecting it against dust and accidental splashing, suitable for typical industrial environments.
Technical Specifications

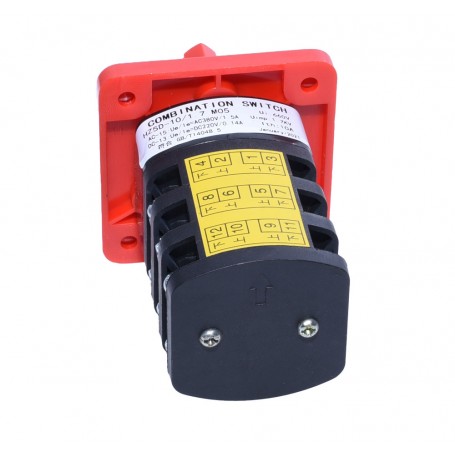

| Model | LW-26203 / HZ5D-10/1,7 M05 |
| Contact type | 3 positions: 1-0-2 |
| Rated amperage | 10A |
| Rated voltage (Ui) | 660V AC |
| Switched power | 1.7 kW |
| Rated thermal current (Ith) | 10A |
| Rated current | AC-15: 380V - 1.5A / DC-13: 220V - 0.14A |
| Action type | Rotary selector |

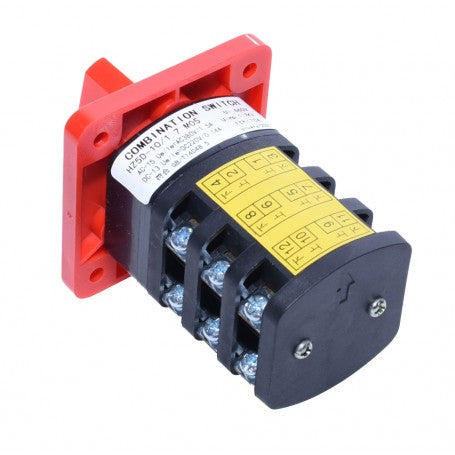

| Terminal type | Screw clamp |
| Protection rating | IP42 (after correct installation) |
| Reliability | 1,000,000 switching cycles |
| Operating temperature | -2°C to +70°C |
| Cutout hole diameter | Ø 51mm |
| Dimensions | 70/95 x 60 x 60mm |
| Material | Heat-resistant plastic and metal |
