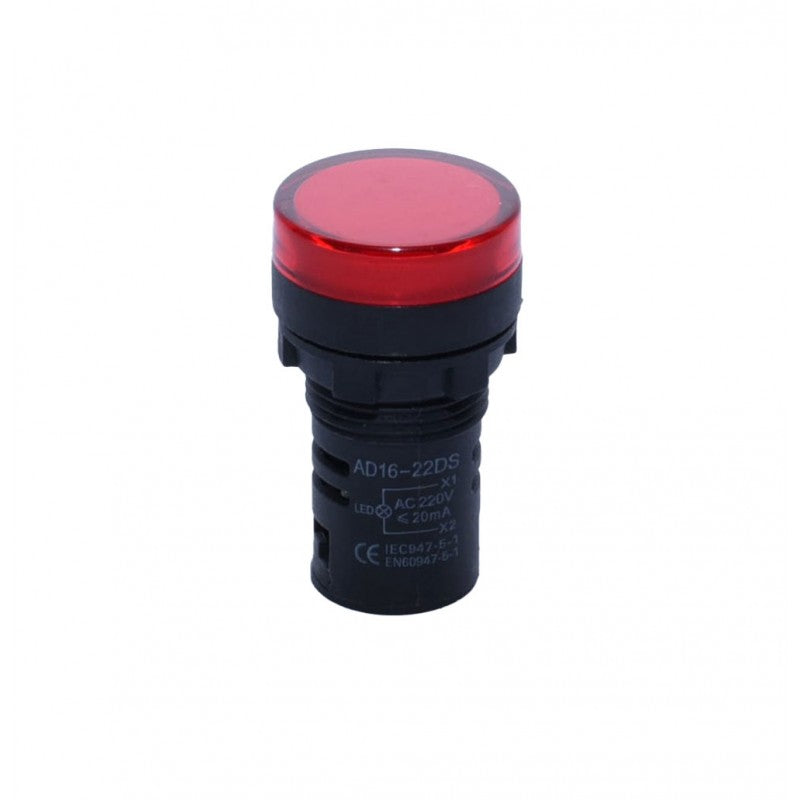

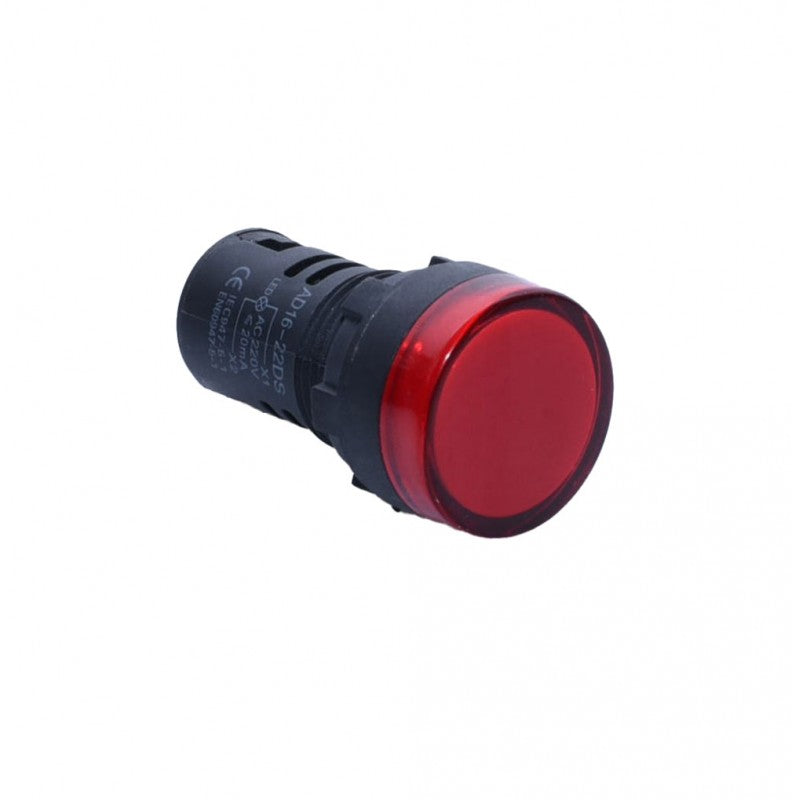

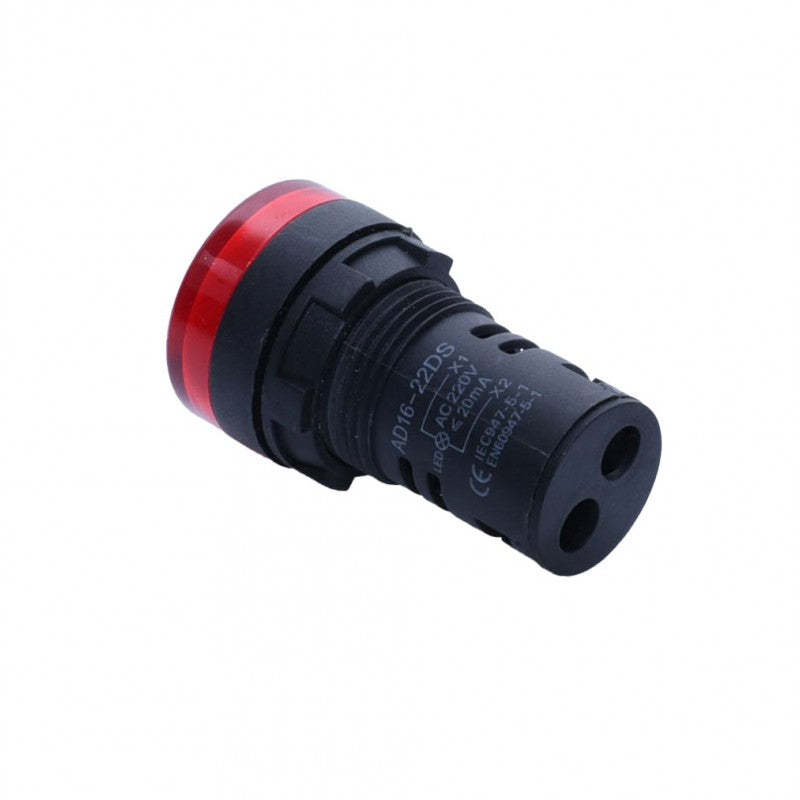

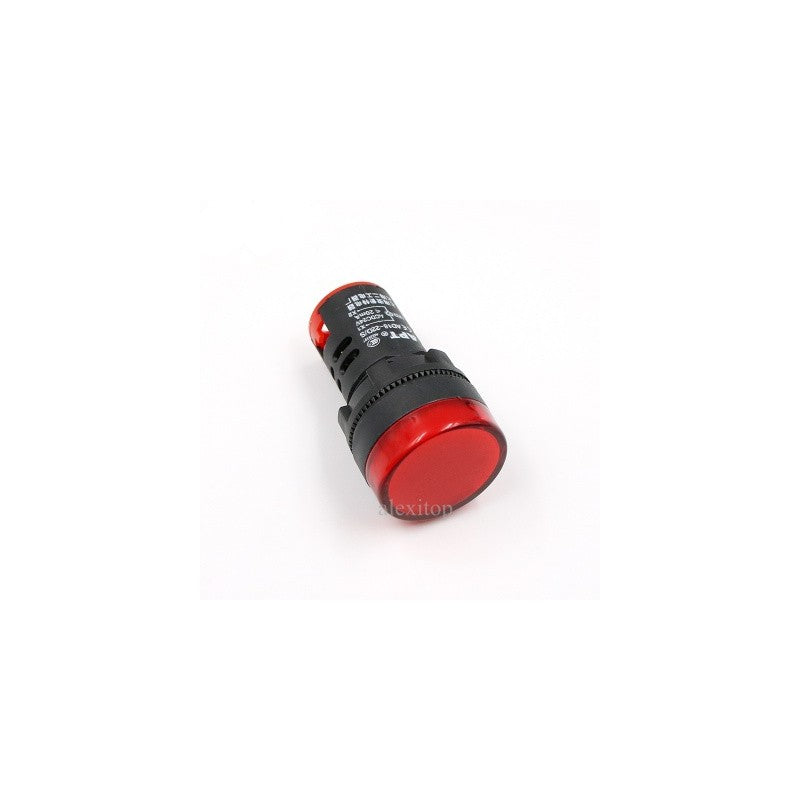

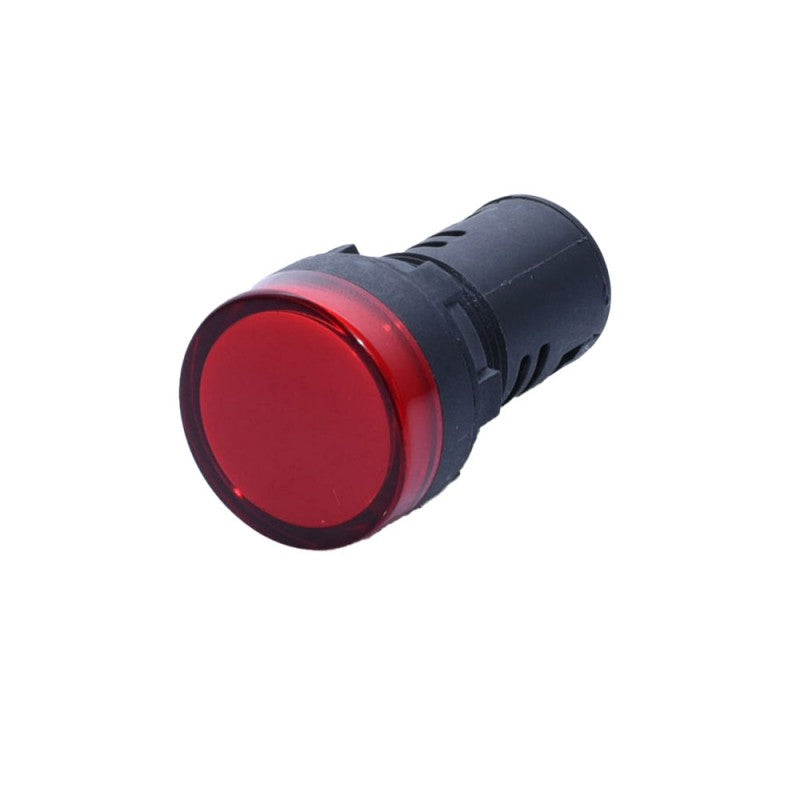

Pilot Light Voltage Indicator 220V, Matte Finish, Red
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Red 220V voltage indicator light for electrical panel
This red 220V AC indicator light allows you to visually monitor voltage presence in electrical installations, control panels, or industrial machinery. Simple installation in a 22mm hole, excellent visibility, and a robust construction from durable plastic make it ideal for professional and DIY applications.
What you get with this product
- Clear visual indication of 220V voltage — instantly see when the circuit is powered
- Quick installation in any electrical panel or enclosure with a standard 22mm hole
- Low consumption of only 20mA maximum — energy efficient and continuous operation without overheating
- Robust construction from industrial-grade plastic — resistance to wear over time
- Compatible with a wide range of applications — automation, industrial machines, distribution panels, household installations
- Intense red color — maximum visibility even in strong lighting conditions
How it works and how to install
The indicator connects directly to a 220V AC power source via two terminals located at the back of the body. When powered, the internal bulb lights up, emitting red light. Installation requires a 22mm hole in the electrical panel, after which the indicator is secured by pressing or using a locking nut. No advanced electrical knowledge is required, but handling with the installation disconnected from the mains is recommended.
Frequently asked questions
What is the indicator's power consumption during continuous operation?
The maximum consumption is 20mA at 220V, extremely low for non-stop operation.
Can it be mounted in a standard electrical panel?
Yes, it mounts in any 22mm diameter hole, standard in most industrial panels and enclosures.
How visible is the indicator in bright light?
The intense red color ensures clear visibility even in strong ambient lighting conditions.
Technical specifications
| Supply voltage | 220V AC |
| Maximum current | 20mA |
| Nominal circuit current | 16A |
| Indicator color | Red |
| Illumination type | Bulb |
| Total dimensions | 29 x 51 mm |
| Mounting diameter | 22 mm |
| Body material | Industrial plastic |
| Finish | Matte |
| Product code | AD16-22DS/V |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian law. Right of return within 30 days of receipt. Fast delivery by courier with parcel tracking throughout Romania.
