Single-Color LED Touch Dimmer 12V/24V-8A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Touch dimmer for 12V/24V monochromatic LED strip
The touch dimmer for monochromatic LED strips allows you to adjust the light intensity between 0 and 100% with a simple touch of a button. Compatible with monochromatic LED strips powered by 12V or 24V DC, this controller integrates discreetly into any residential or commercial lighting installation. The ideal solution for bedrooms, living rooms, terraces, HoReCa spaces, or any project where adjustable light makes a difference.
What you get with this product
- Precise brightness control between 0 and 100% — create the right atmosphere for any moment, from bright task lighting to ambient evening light
- Compatible with 12V and 24V DC monochromatic LED strips — works with most standard LED strips on the market
- Supports current up to 8A — covers installations up to 96W at 12V or 192W at 24V without overheating
- Activated by a simple touch of a button — no moving parts to wear out, intuitive use for any family member

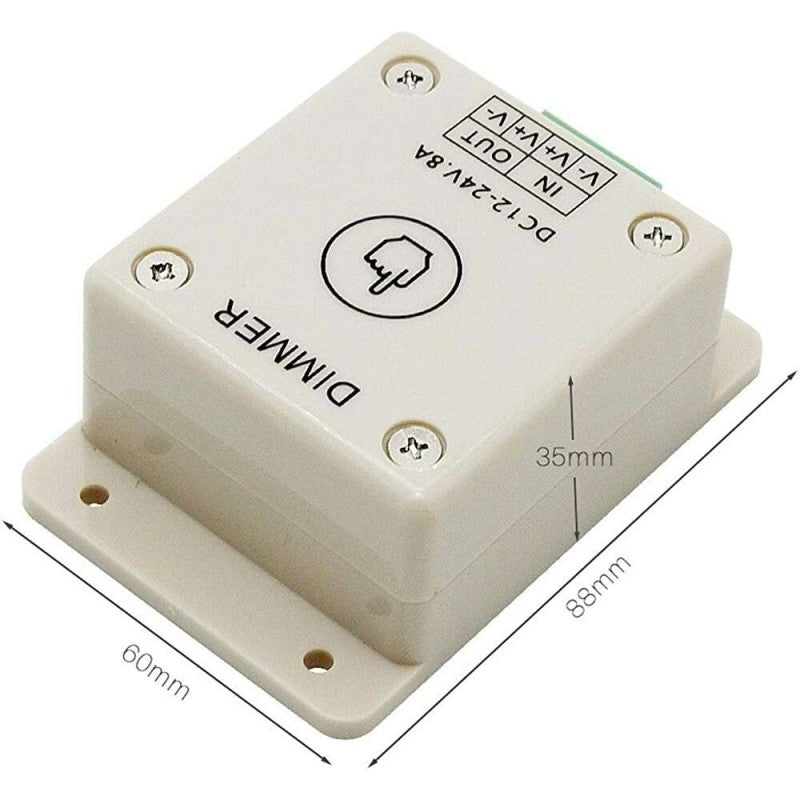

- Robust surface-mount casing — compact dimensions (90 x 60 x 35 mm) and integrated mounting holes for stable attachment to a wall or support
- Extended operating temperature between -20°C and +60°C — also suitable for less thermally controlled spaces, such as garages or covered terraces
How it works and how to install it

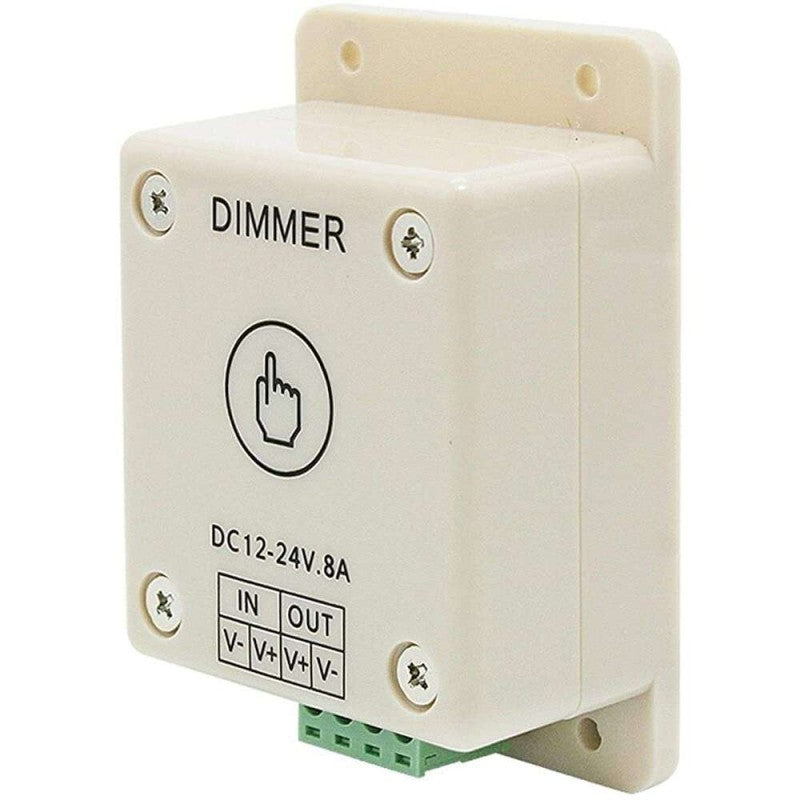

The dimmer connects in series between the DC power source and the LED strip, using the screw terminal block marked IN/OUT visible on the casing — the connections are clearly labeled V- and V+ for input and output. Brightness adjustment is done by repeatedly pressing the touch button, which gradually cycles the light intensity. Installation is simple and does not require advanced electrical knowledge, but for a permanent installation, it is recommended to have the connections checked by a licensed electrician.
Frequently Asked Questions
Does this dimmer work with any monochromatic LED strip?
Yes, it is compatible with monochromatic LED strips that operate at 12V or 24V DC and do not exceed 8A total current per channel.
Can I use this dimmer with an RGB or RGBW LED strip?
No, this dimmer is exclusively designed for monochromatic LED strips with a single color channel. RGB or RGBW strips require a dedicated controller.
What length of LED strip can I control with this dimmer at 12V?
At 12V, it supports a maximum power of 96W, which means approximately 16 meters of LED strip with a consumption of 6W/m or 9-10 meters at 10W/m.
Technical Specifications
| SKU | Q-18A088 |
| Supply voltage | 12V - 24V DC |
| Maximum current | 8A |
| Maximum power at 12V | 96W |
| Maximum power at 24V | 192W |
| Brightness adjustment | 0 - 100% |
| Self-consumption (stand-by) | 1W |
| Operating temperature | -20°C / +60°C |
| Dimensions | 90 x 60 x 35 mm |
| Housing material | Plastic, metal |
| Control type | Touch button |
| Package contents | 1x Touch dimmer, 1x User manual (EN) |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days from the date of receipt, no justification required. Delivery is carried out quickly by courier throughout Romania.
