BNC to HDMI Converter, BNC Female to HDMI Female, ElectroAZ
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

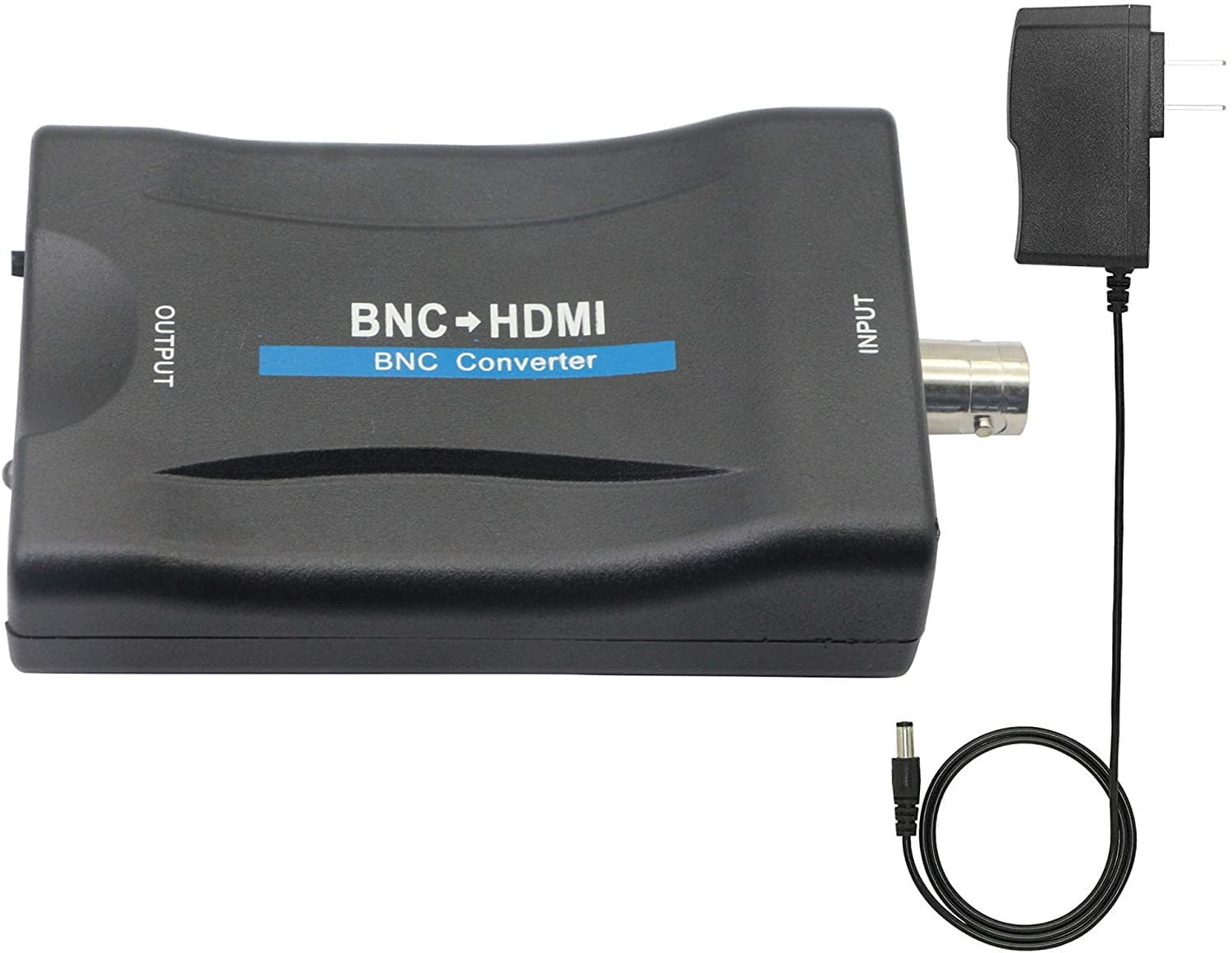

BNC to HDMI Converter for CVBS Analog Cameras
The BNC to HDMI converter transforms the analog video signal from CVBS cameras into an HDMI signal compatible with any modern monitor, HD TV, or projector. It is the practical solution for connecting an analog surveillance system to a regular HDMI screen without replacing existing equipment. It operates in Plug and Play mode, requiring no driver installation or complex configurations.
What you get with this product
- Display images from analog CCTV cameras on any HDMI TV or monitor, without buying a dedicated video monitor
- Instant connection without drivers — the adapter automatically detects PAL or NTSC signals and configures itself
- Automatic upscaling from standard 480i resolution to 720p or 1080p, for a clearer image on HD screens
- Dedicated audio port on the BNC connector — transmit both image and sound to the connected screen
- Compact dimensions and low weight — discreetly mounts next to the DVR or monitor, without cluttering the installation
- Power adapter included in the package — everything you need for connection is already in the box
How it works and how to install
Connect the BNC cable from the camera or analog DVR to the BNC input of the converter, then connect an HDMI cable between the converter's output and the TV or monitor. Power the converter with the included adapter, select the HDMI input on the screen, and the image will appear automatically. No additional settings are required — the device automatically recognizes the signal format (PAL or NTSC) and adjusts the output resolution.
Frequently Asked Questions
Does it work with my AHD, TVI, or CVI camera?
No. The converter is exclusively compatible with CVBS analog cameras. It does not support AHD, TVI, CVI, or SDI signals and cannot convert cable TV signals.
Do I need a separate HDMI cable or is it included in the package?
The HDMI cable is not included. The package contains the converter and power adapter. The HDMI cable must be purchased separately, depending on the distance between the converter and the screen.
What do I do if no image appears on the screen after connection?
Check that the input signal is CVBS analog, that the power adapter is correctly connected, and that the TV or monitor is set to the appropriate HDMI input. A loose BNC connector contact can also cause a lack of image — reconnect the cable firmly.
Technical Specifications
| SKU | EAZ-CON013 |
| Brand | ElectroAZ |
| Product type | BNC to HDMI video converter |
| Input | BNC female (CVBS analog signal) |
| Output | HDMI female |
| Input signal formats | PAL, NTSC (automatic detection) |
| Input resolution | 480i (standard analog signal) |
| Output resolution | 720p / 1080p |
| HDMI standard | HDMI 1.3 |
| HDCP standard | HDCP 1.2 |
| Camera compatibility | Only CVBS analog cameras |
| Incompatible with | AHD, TVI, CVI, SDI cameras, cable TV signal |
| Installation | Plug and Play, no drivers |
| Package contents | BNC to HDMI converter, power adapter |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receipt, without the need for justification. Delivery is made by express courier, with shipping confirmation and package tracking available.
