RGB LED Controller + Touch Panel 5V-24V - 30A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

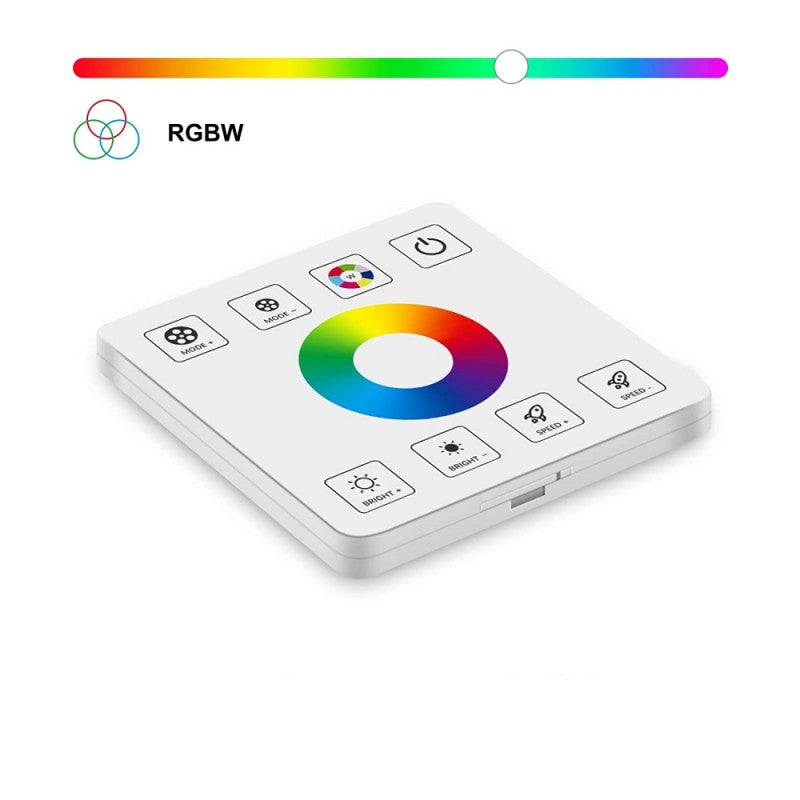

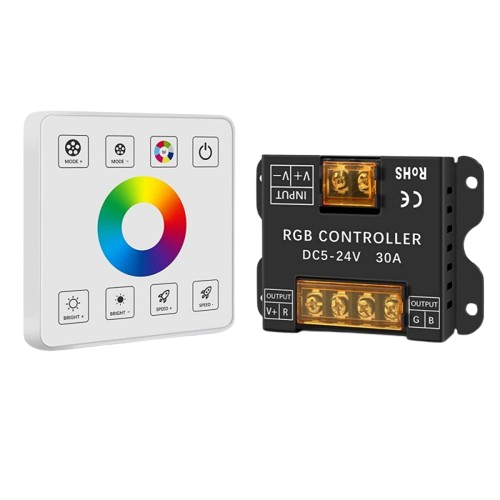

RGB Controller with RF Touch Panel for LED Strips

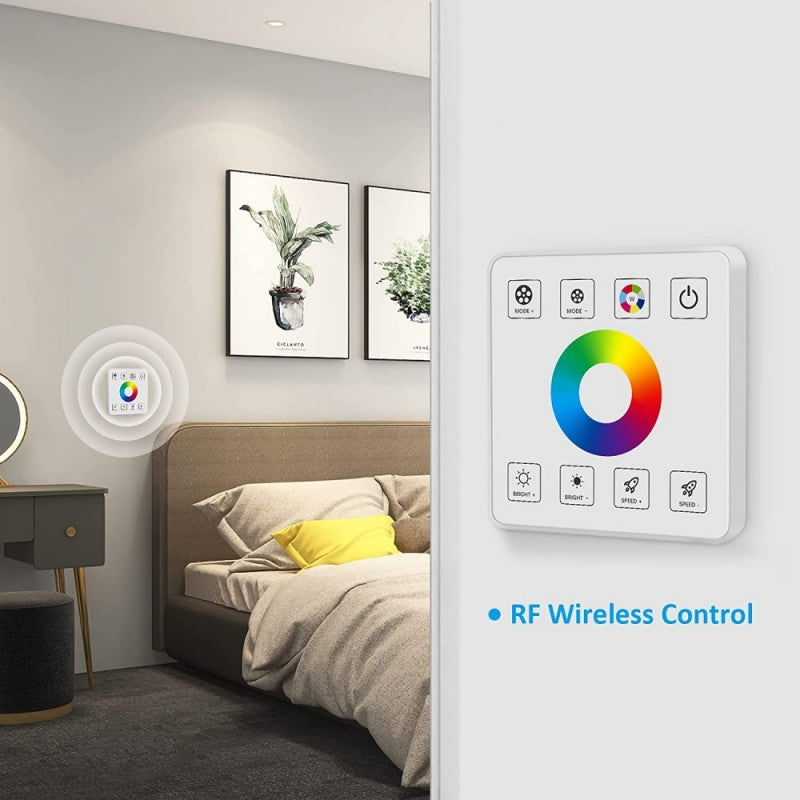

The RGB LED controller kit with wall-mounted touch panel gives you complete control over RGB LED strips in any room, with no wires between the remote control and the receiver. Communication is done via wireless RF signal, meaning you can change color, brightness, and effects directly from the wall, just like a classic switch. Compatible with RGB LED strips powered by DC voltages between 5V and 24V, with a current capacity of up to 30A.
What you get with this product
- Wireless RF control of the RGB LED strip from the wall — no more lost remotes, the panel is fixed

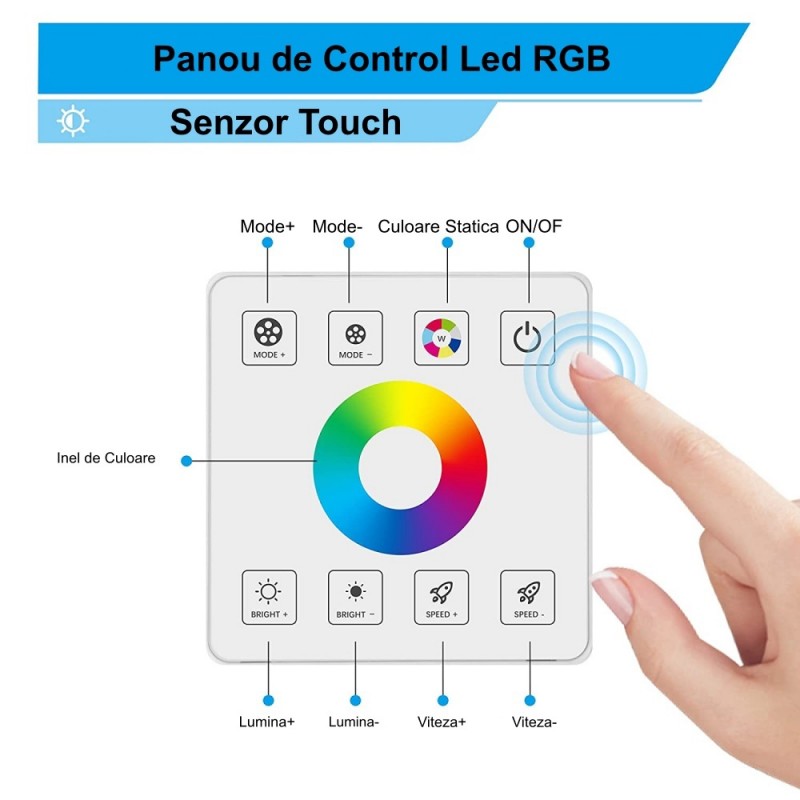

- Complete adjustment of color, brightness, and effect speed from a single intuitive touch panel
- 7 predefined static colors plus dynamic modes — Jump, Gradient, Strobe, and other combinations — for any desired ambiance
- Power-off memory — each time it's turned on, the system resumes the exact mode and color it was in when turned off
- Two installation methods included — adhesive mounting on a smooth wall or screw fixing, no electrician needed
- 30A capacity allows control of long lengths of RGB LED strip without overheating
How it works and how to install

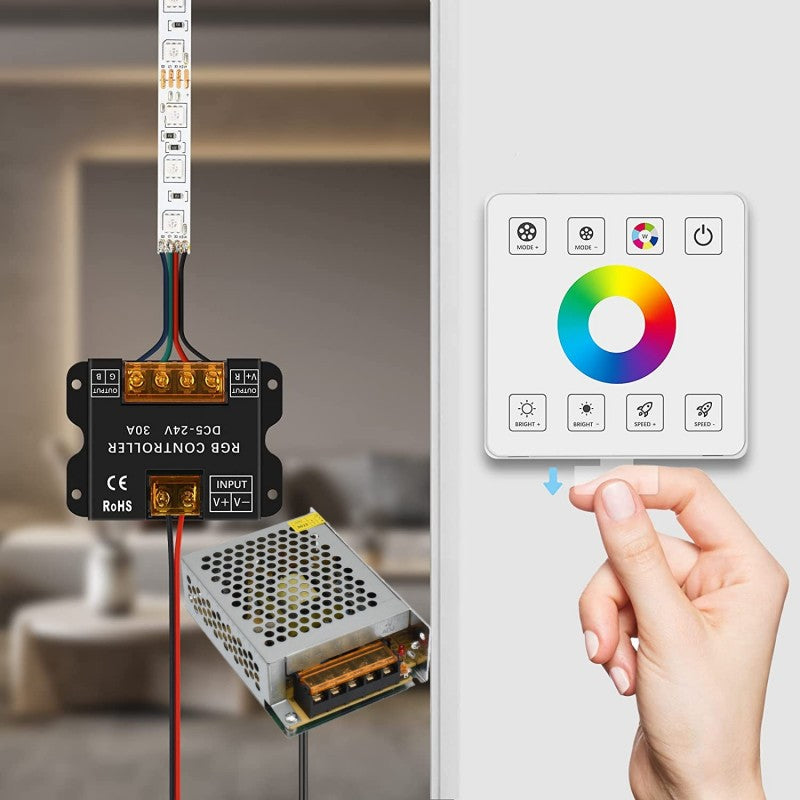

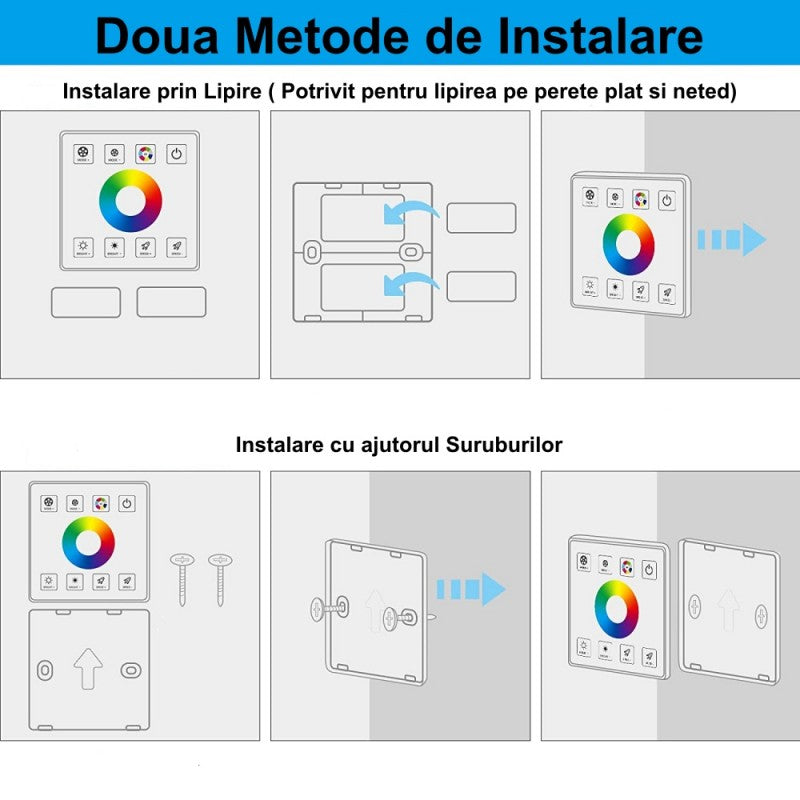

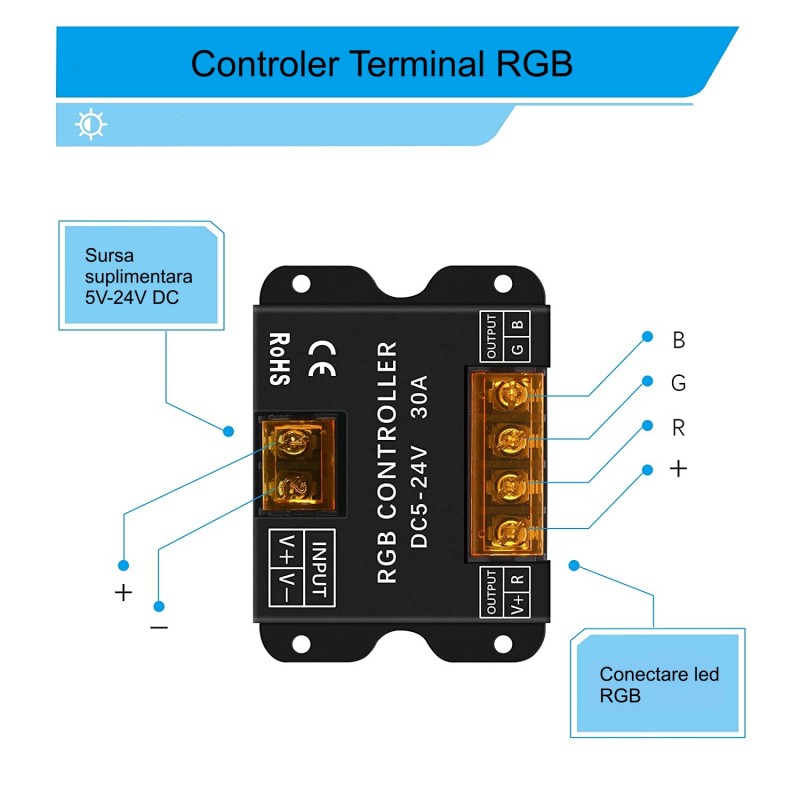

The metal-cased receiver module connects between the DC power source (5V–24V) and the wires of the RGB LED strip — power input on one side, R, G, B outputs on the other. The touch panel communicates with the receiver via wireless RF signal and can be mounted on the wall either by adhesive tape on flat, smooth surfaces, or by screwing it in with two included screws. No cable connection is required between the panel and the receiver, which greatly simplifies installation.
Frequently Asked Questions
Does this controller work with any RGB LED strip?
Yes, it is compatible with any RGB LED strip that operates at DC voltage between 5V and 24V and uses the common signal protocol for R, G, B channels.
What is the range of the touch panel from the receiver?
The RF signal of the panel has a range of approximately 10–15 meters indoors, sufficient for most residential or commercial spaces.
Does this controller change the input voltage or maintain it at the output?
The controller is not a transformer — the input voltage is identical to the output voltage. Make sure the power supply matches the specifications of the LED strip used.
Technical Specifications
| SKU | Q-18A129 |
| Product Type | RGB LED Strip Controller with RF Touch Panel |
| Input Voltage | DC 5V – 24V |
| Maximum Current | 30A |
| Remote Control Signal Type | RF Wireless |
| Control Type | Wall-mounted Touch Panel |
| Strip Compatibility | RGB LED Strip (3 channels: R, G, B) |
| Lighting Modes | 7 static colors, Jump, Gradient, Strobe, and combinations |
| Power-off Memory | Yes |
| Panel Installation Methods | Adhesive mounting / Screwing |
| Receiver Casing | Metal |
| Certifications | CE, RoHS |
| Brand | OEM |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receipt, no justification required. Delivery is fast via courier, with dispatch confirmation and tracking capability.
