Monochrome LED Controller, Touch, 12V/24V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Monochrome LED controller with touch and wireless RF remote control
The monochrome LED controller with touch remote control is the practical solution for adjusting the intensity of any single-color LED strip, powered by 12V or 24V DC. The device uses wireless RF transmission, which means you don't have to point the remote control at the receiver, nor are you limited by direct distance. Suitable for residential, commercial, or decorative applications where you want precise light control without extra cables.
What you get with this product
- Continuous light intensity adjustment from a distance of up to 20 meters, without having to direct the remote control towards the receiver
- Wide compatibility with any monochrome LED strip — works with 3528, 5050, 5630, 5730, and similar types
- Three parallel output channels — you can simultaneously control 3 separate LED strip lines from a single point
- Output power up to 432W at 24V — covers extensive installations without an additional controller

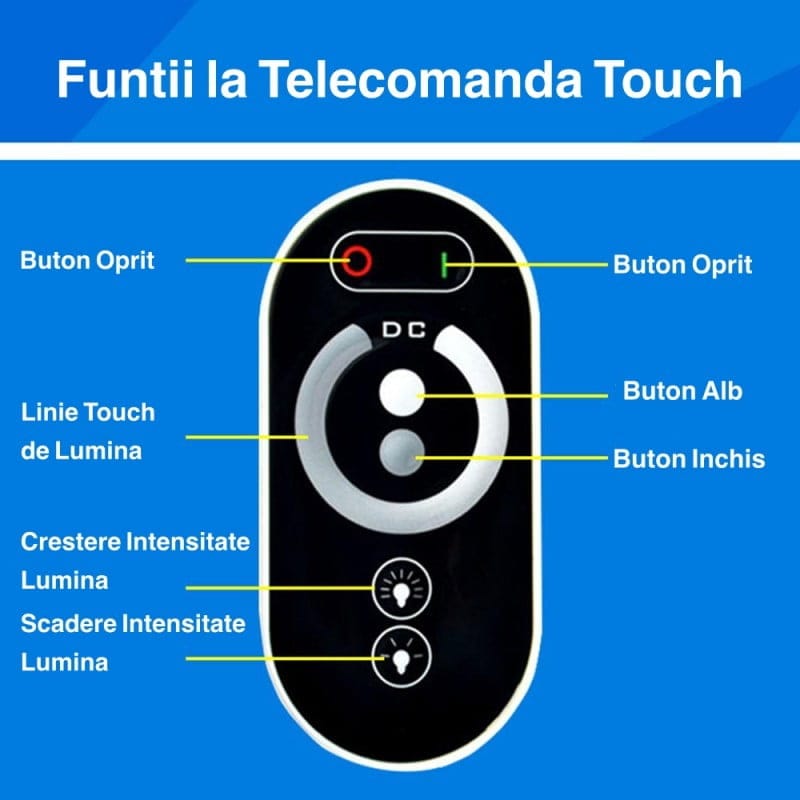

- Ergonomic touch remote control with dedicated buttons for on/off and progressive brightness adjustment
- Extremely low static consumption (0.09mW) — the controller does not consume significant current in standby
How it works and how to install it

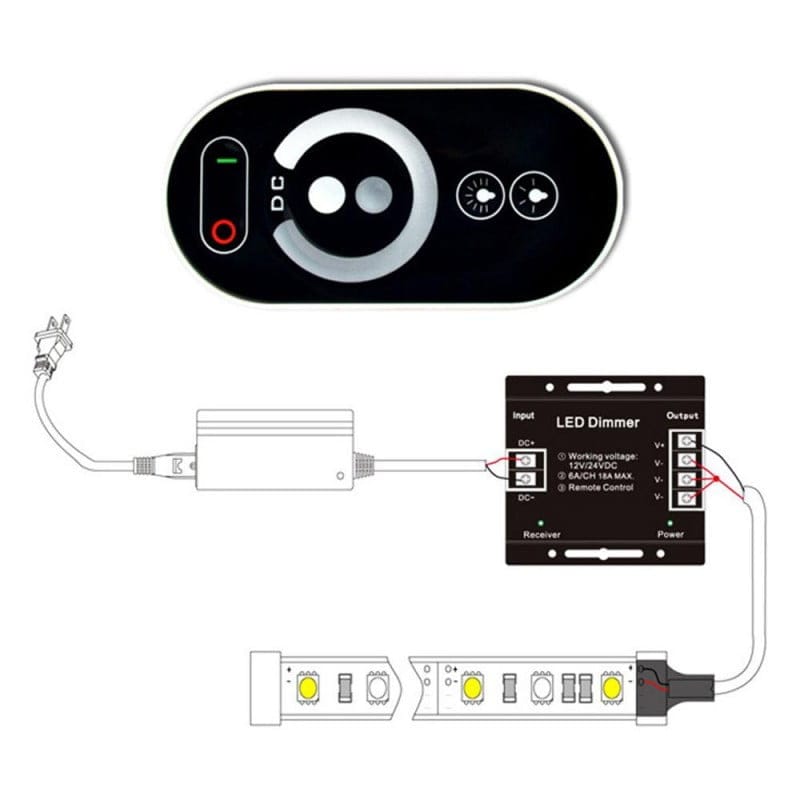

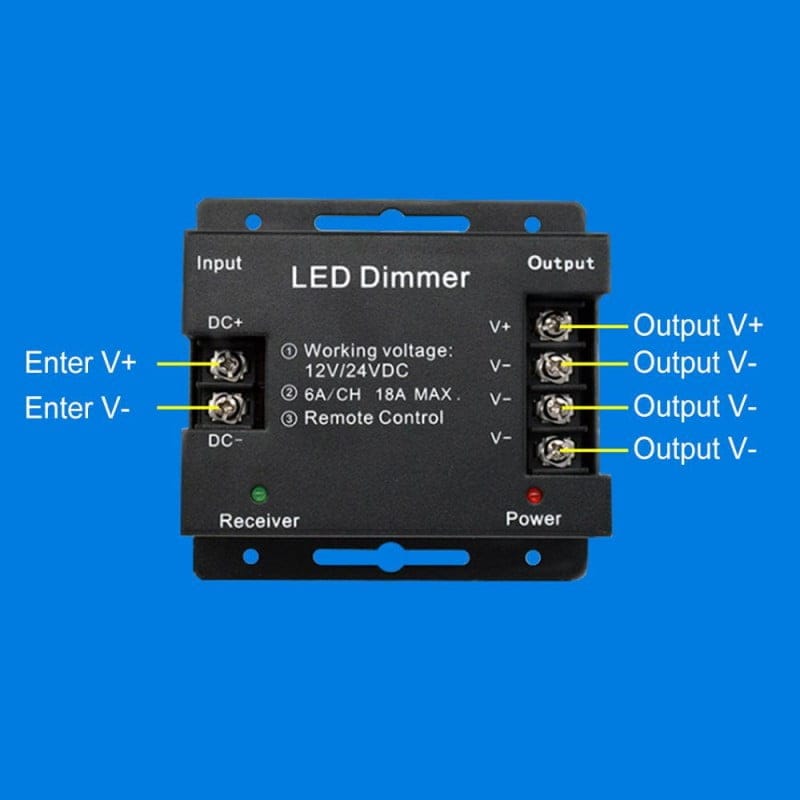

The controller connects between the DC power supply (12V or 24V) and the LED strip, using the input and output terminals marked on the housing. The touch remote control communicates wirelessly with the receiver via an RF signal at 432MHz, without the need for direct aiming or a clear line of sight. Installation is simple: connect the wires according to the labels on the dimmer (DC+ and DC-), connect the LED strips to the 3 output channels, and the remote control is ready to use after inserting AAA batteries.
Frequently asked questions
Does this controller also work with 24V LED strips, not just 12V?
Yes, the controller is compatible with both 12V and 24V DC. At 24V, the maximum supported power is 432W.
Are the batteries for the remote control included in the package?
No, the AAA (R3) batteries required for the remote control are not included and must be purchased separately.
Can I control LED strips of different colors with this controller?
No, this controller is exclusively designed for monochrome LED strips (a single color temperature). It is not compatible with RGB or RGBW strips.
Technical Specifications
| Model | CNT-TO6318 |
| SKU | Q-18A071 |
| Power supply voltage | DC 12V / 24V |
| Maximum current | 6A x 3 channels = 18A maximum |
| Output power | 12V: max 216W / 24V: max 432W |
| Number of output channels | 3 parallel channels |
| Transmission frequency | 432 MHz (RF wireless) |
| Remote control operating distance | minimum 20 meters |
| Remote control power supply | 3 x AAA / R3 batteries (not included) |
| Static consumption | 0.09 mW |
| Operating temperature | -20°C / +60°C |
| Housing material | Plastic |
| Certifications | CE, RoHS |

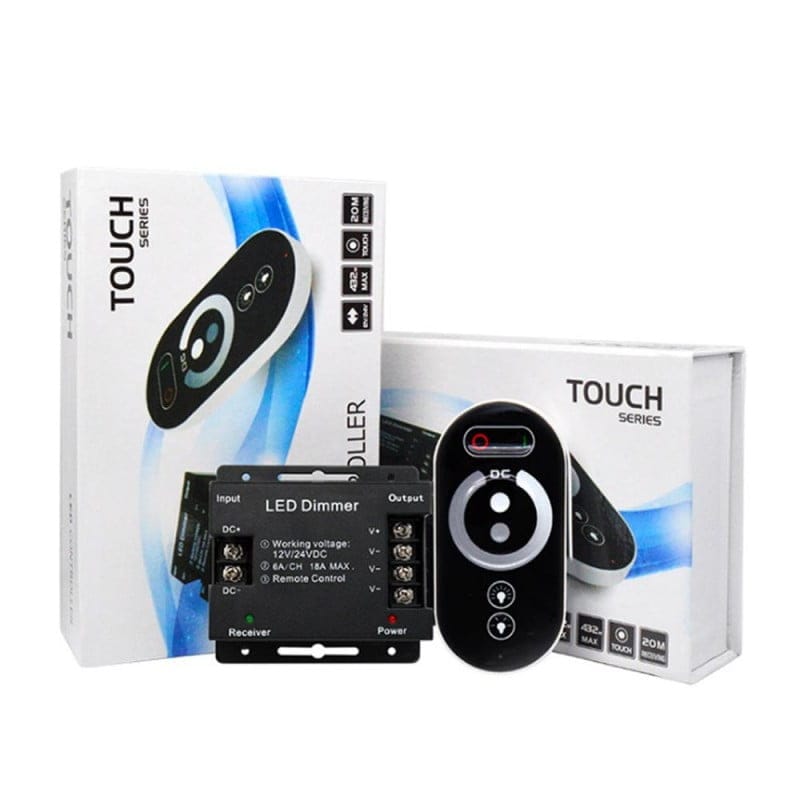

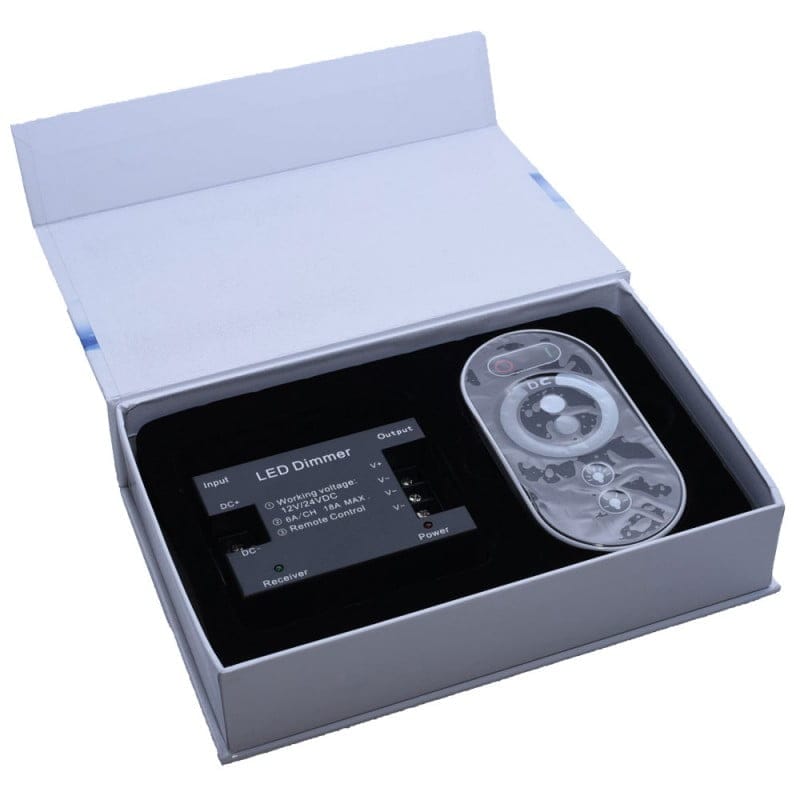

| Package contents | 1x LED dimmer, 1x touch remote control, 1x EN user manual |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, no justification required. Delivery is fast by courier, with shipping confirmation and package tracking available.
