Monochrome LED Controller, 8A, Manual
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

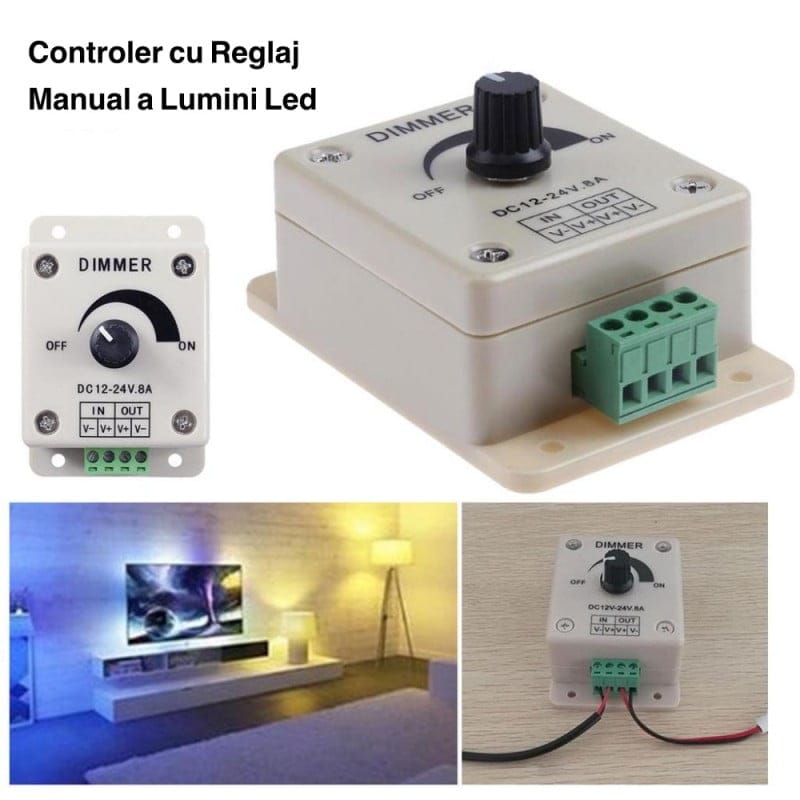

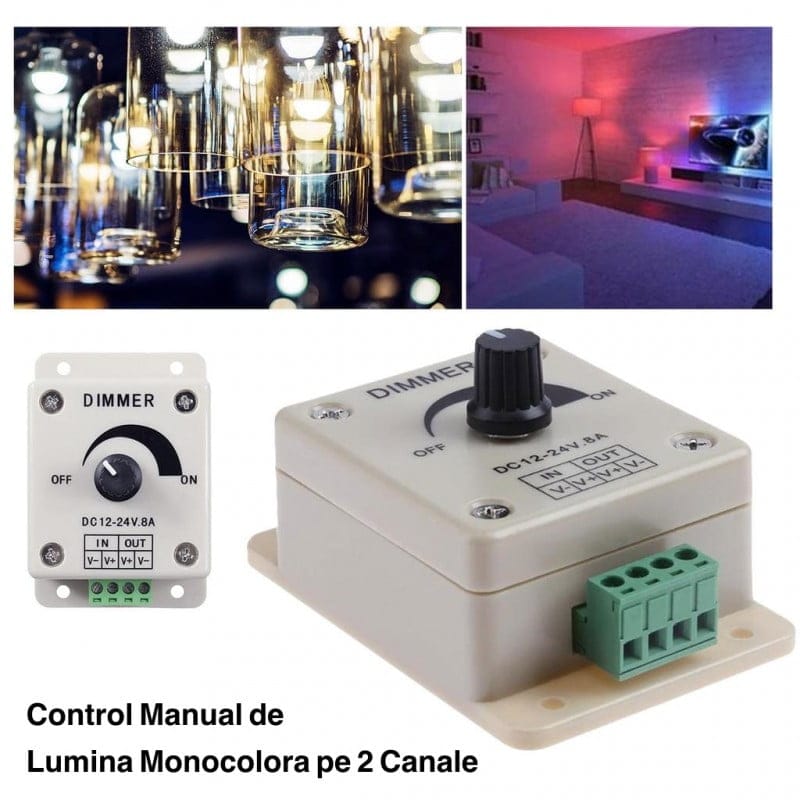

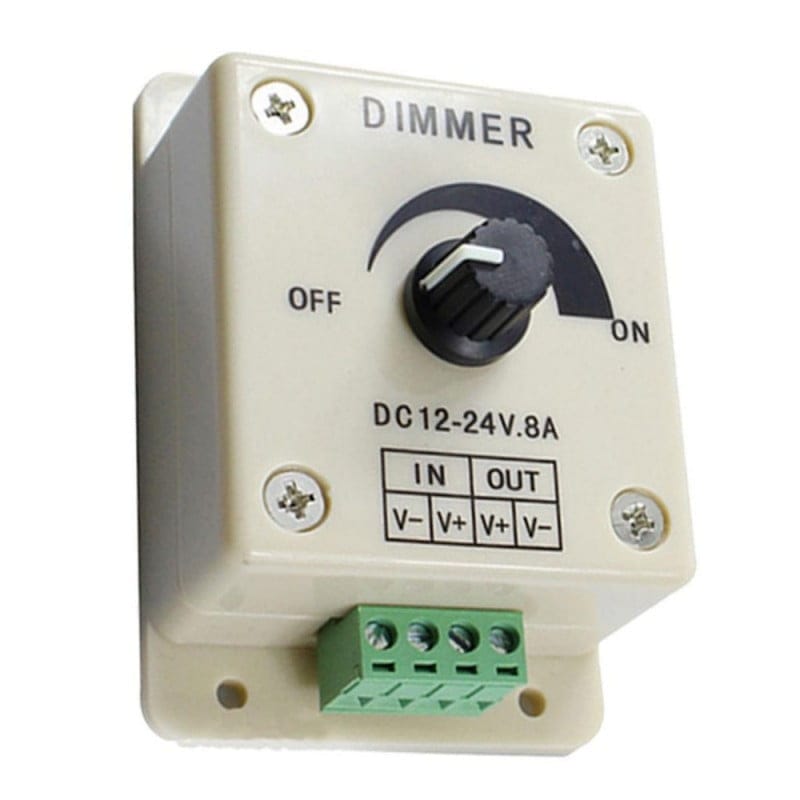

Manual Dimmer for 12V-24V Monochrome LED Strip
The monochrome LED controller with manual potentiometer adjustment allows you to adjust light intensity from zero to maximum with a simple turn of a knob. Compatible with LED strips, LED bars, spotlights, wall lamps, and chandeliers powered by DC 12V or DC 24V, it simultaneously manages two output channels with a total current of up to 8A. A direct solution for any monochrome LED lighting installation requiring brightness control without a remote or app.
What you get with this product
- Fine brightness adjustment from 0% to 100% with a single rotary potentiometer, without discrete steps or light jumps
- Two simultaneously controlled output channels — you can connect two LED strip segments that dim together
- Compatible with 12V and 24V systems — the same controller works in both installations, without modifications
- Output power up to 192W at 24V — sufficient for extended LED strip installations in an entire room
- Removable screw terminal connectors — wiring and replacement are quick, without special tools
- Compact housing with included mounting holes — fixes securely to a wall or surface, without hanging loose in the installation
How it works and how to install

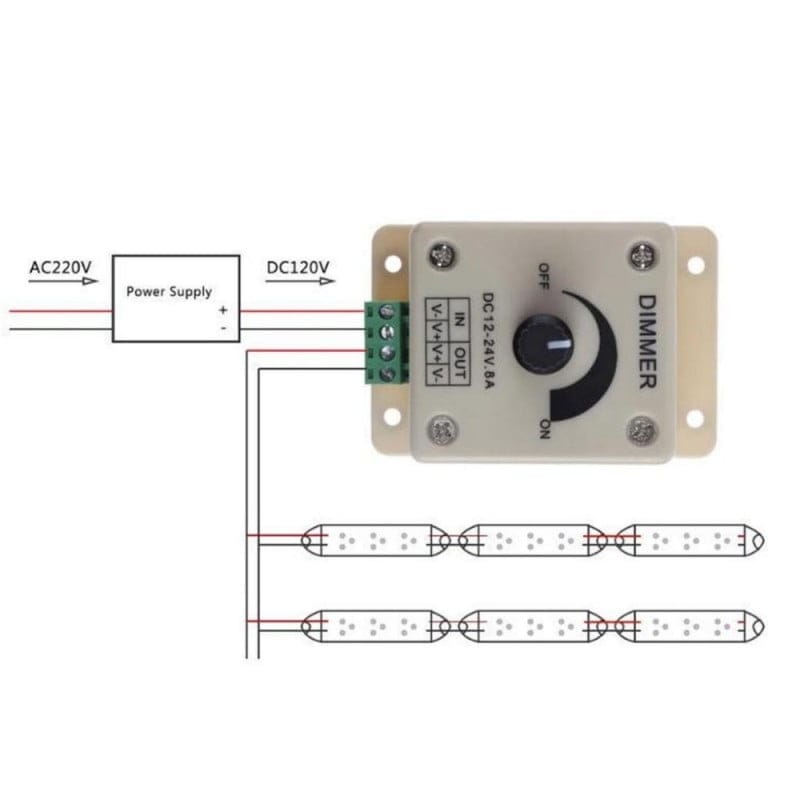

The controller connects between the DC power source and the LED strip: wires from the source (V+ and V-) enter the terminals marked IN, and the LED strips connect to the OUT terminals, one on each channel. The rotary knob activates a PWM circuit that varies the effective voltage to the LEDs, smoothly reducing or increasing brightness. Installation is done with a screwdriver, by tightening the terminals on the removable block, and the housing is secured to the desired surface with two screws through the existing mounting holes.
Frequently Asked Questions
Can I connect a single LED strip, not two?
Yes, you can use a single output channel without any problem. The second channel simply remains unconnected.
Does it also work with RGB LED strips or only monochrome ones?
This controller is designed exclusively for monochrome LED strips with a single color channel. RGB strips require a dedicated controller with three or four channels.
What happens if I exceed the maximum current of 8A?
Overcurrent can damage the controller. Calculate the total consumption of the connected strips and ensure that you do not exceed 8A at the chosen operating voltage.
Technical Specifications
| Model | CNT-MA-12248 |
| SKU | Q-18A072 |
| Input Voltage | DC 12V / DC 24V |
| Max Current | 8A |
| Max Output Power | 96W at 12V / 192W at 24V |
| Number of Output Channels | 2 simultaneous channels |
| Control Type | Manual, rotary potentiometer (PWM) |
| Self-consumption | 1W |
| Connector Type | Removable screw terminal block (4 poles: V- V+ / V+ V-) |

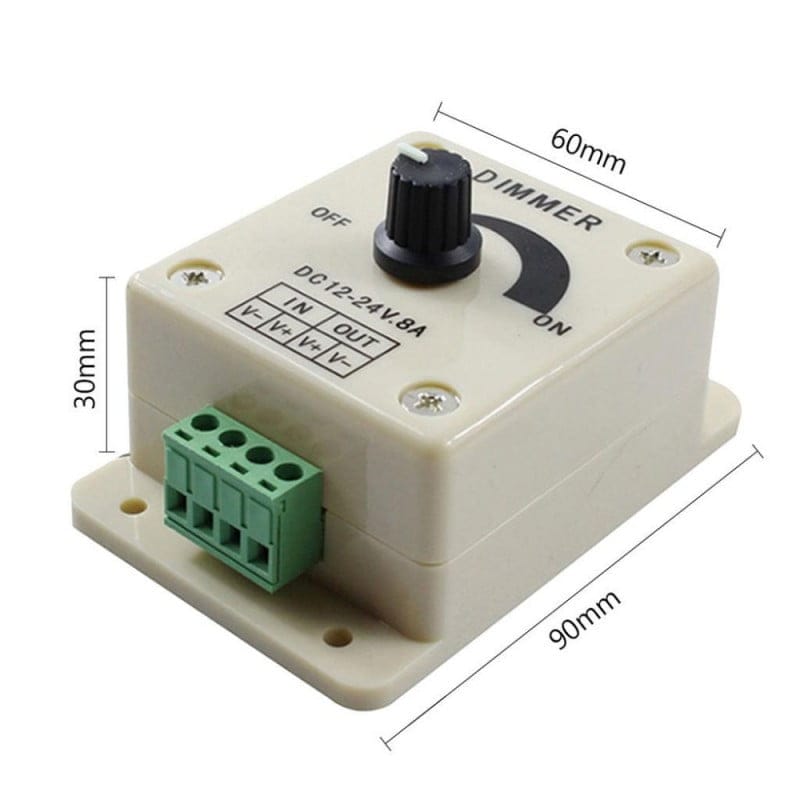

| Dimensions | 89 x 59 x 35 mm |
| Housing Material | ABS plastic, metal |
| Compatibility | Monochrome LED strips, LED bars, DC spotlights, DC wall lamps |
| Package Contents | 1x Manual monochrome LED controller 8A |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with Romanian legislation. Returns accepted within 30 days of receipt, without justification, in accordance with GEO 34/2014. Fast courier delivery throughout Romania.
