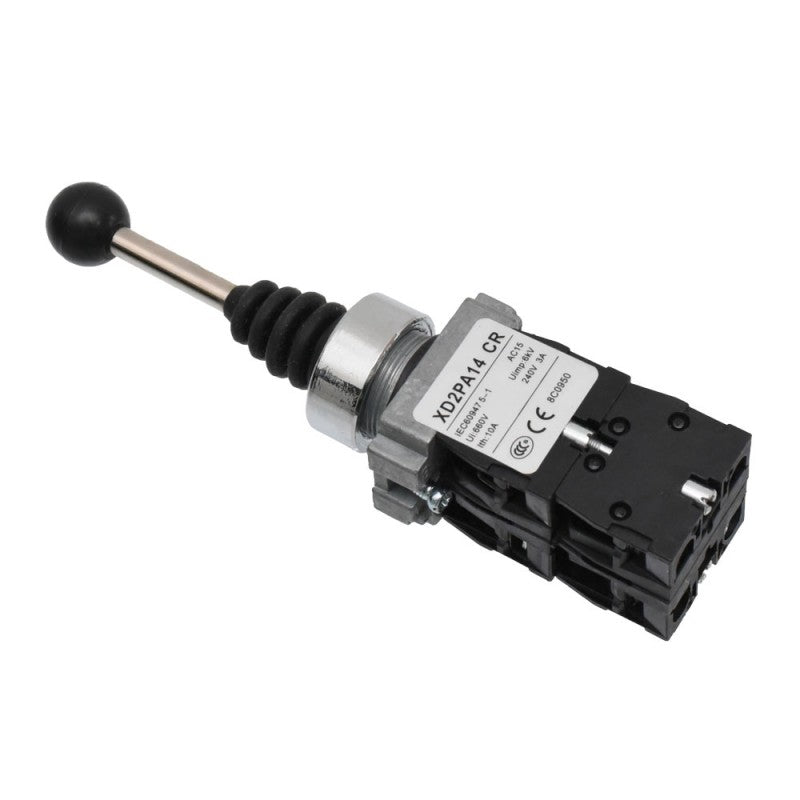

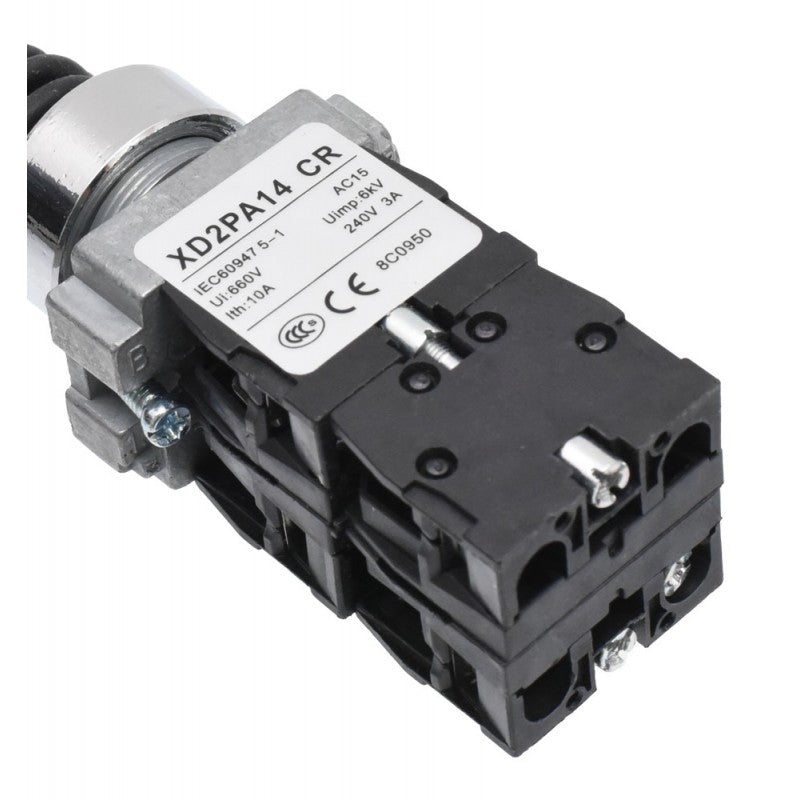

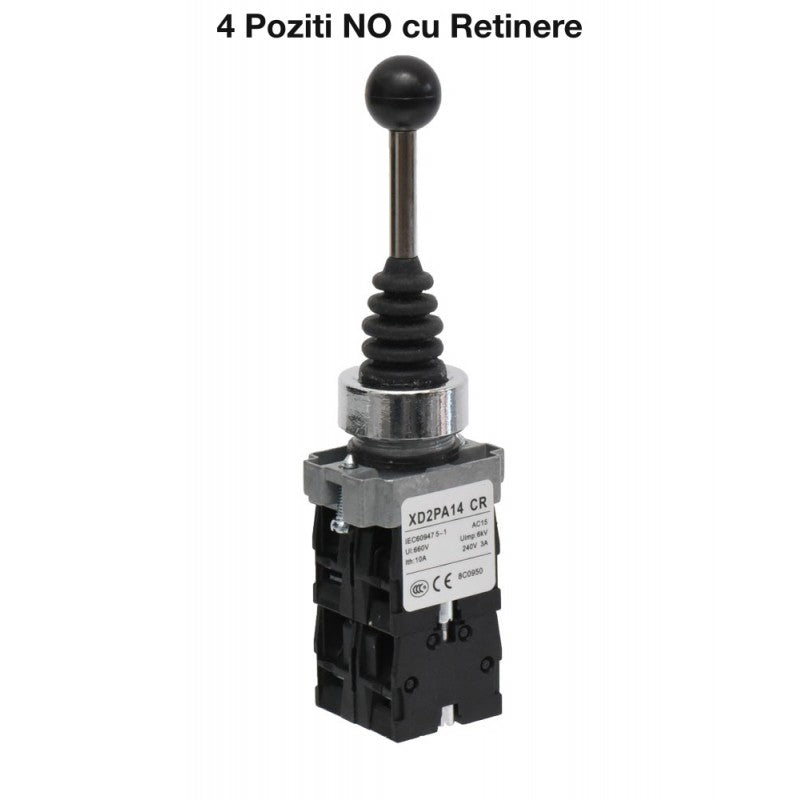

Joystick Controller, 4-Position, Latching, 22mm Mounting Diameter, Metal, 3A
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
4-position industrial joystick controller with retention
This joystick lever controller provides precise four-direction control for industrial machines, production lines, and automation equipment. Robust metal design with standard 22mm mounting, compatible with existing control panels. Ideal for applications where you need reliable manual control in factories, injection molding machines, extruders, or stamping machines.
What you get with this product
- Quick mounting in standard 22mm panels, no additional modifications needed
- Precise 4-direction positioning with retention, for constant control without manual holding
- Wear-resistant metal construction, tested to 1,000,000 actuation cycles
- Universal compatibility with XD2 systems, replaces old models without re-wiring
- NO-NO contacts with 3A capacity at 240V AC-15, sufficient for most industrial applications
- 6KV overvoltage protection and 500V insulation, increased safety in industrial environments
How it works and how to install it
The lever is operated in four distinct directions, each position activating separate NO-NO contacts with retention. Mounting is done through a standard 22mm hole in the control panel, secured with the included nut. Electrical connections are made via captive screw terminals, accepting 1.5mm wires. No special tools or advanced electrical knowledge are required.
Frequently Asked Questions
What do NO-NO contacts mean and how do they work in the 4 positions?
NO means Normally Open, the contact closes only when you operate the lever. Each of the 4 directions activates a separate contact, the central position does not activate any contact.
Will it fit in my panel if I have other 22mm buttons?
Yes, the mounting diameter is standard industrial 22mm, compatible with most existing control panels and XD2 systems.
How resistant is it to intensive use?
Mechanical durability is 1,000,000 cycles, and electrical life is 1,000,000 cycles at 230V AC-15, suitable for continuous industrial use.
Technical Specifications
| Model | XD2-PA14 CR |
| Mounting diameter | 22 mm |
| Contact type | NO-NO (Normally Open) |
| Number of positions | 4 directions with retention |
| Rated current | 3A at 240V AC-15 |
| Insulation voltage | 500V (pollution degree 3) |
| Impulse voltage | 6KV according to EN/IEC 60947-1 |
| Frame material | Chrome-plated metal |
| Mechanical durability | 1,000,000 cycles |
| Electrical durability | 1,000,000 cycles at 230V AC-15 |
| Connection type | Captive screw terminals 2 x 1.5mm |
| Total height | 146 mm |
| Mounting depth | 40 mm |
| Short-circuit protection | 10A gG fuse cartridge |
| Operating rate | 3600 cycles/hour |
| Certifications | CE, CCC according to SR EN60947-5-1 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. 30-day return policy from order receipt. Fast courier delivery throughout Romania.
