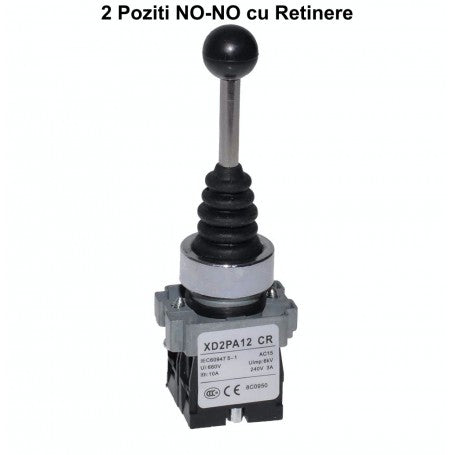

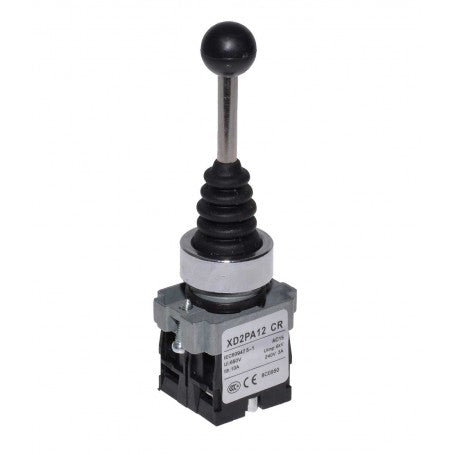

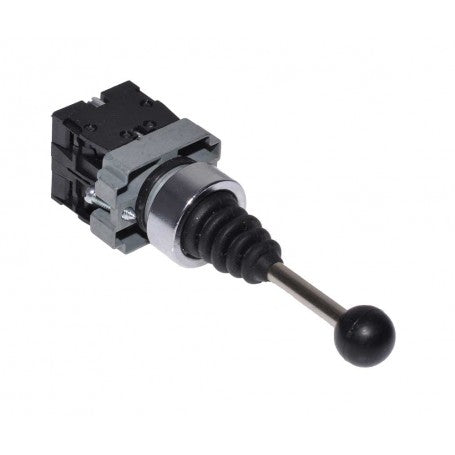

2-Position Latching Joystick Controller, 22mm Mounting Diameter, Metal, 3A
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
2-Position Lever Controller for Precise Control in Industrial Applications
This latching joystick controller offers reliable two-direction control, ideal for industrial machinery, production machines, and automation systems. Its metal and plastic construction ensures resistance to intensive use, while the standard 22mm mounting allows for quick integration into existing control panels.
What you get with this product
- Precise 2-position control with automatic latching — safe operation without returning to a neutral position
- Quick screw mounting on a standard 22mm hole — installs in under 10 minutes on any panel
- Durability of 1,000,000 mechanical cycles — long-lasting operation even under intensive use
- NO-NO contact in 2 directions — maximum flexibility in configuring control circuits
- Compatible with industrial voltages up to 500-600V — integrates directly into existing professional installations
- Robust construction from chromed metal and resistant plastic — withstands shocks and vibrations in industrial environments
How it works and how to install it
The controller works by moving the lever to one of the two positions, each activating a separate NO contact that remains latched until the position is changed. Installation is done by inserting the body into the 22mm hole in the control panel and securing it with the included nut. Electrical connections are made via captive screw terminals that accept 2 x 1.5mm conductors, facilitating quick wiring without special tools.
Frequently Asked Questions
What does NO-NO contact with latching mean?
It means that each lever position activates a Normally Open contact that remains closed until you change the position — it does not automatically return to neutral.
Can it be used at 220V for household appliances?
Yes, the controller supports 3A current at 240V AC-15, making it suitable for both industrial applications and medium-power household appliances.
How difficult is it to mount without electronic experience?
Mounting is simple — you fix the body in the 22mm panel and connect the wires to the screw terminals. No special tools are needed, just a standard screwdriver.
Technical Specifications
| Model | XD2PA12-CR |
| Actuation type | Joystick/lever 2 positions |
| Contact type | NO-NO with latching, 2 directions |
| Rated current | 3A at 240V AC-15, 0.27A at 250V DC-13 |
| Insulation voltage | 500-600V |
| Impulse withstand voltage | 6kV |
| Short-circuit protection | 10A gG |
| Electrical durability | 1,000,000 cycles at 230V AC-15 |
| Mechanical durability | 1,000,000 cycles |
| Mounting diameter | 22mm |
| Total height | 122mm |
| Depth | 40mm |
| Material | Plastic and chromed metal |

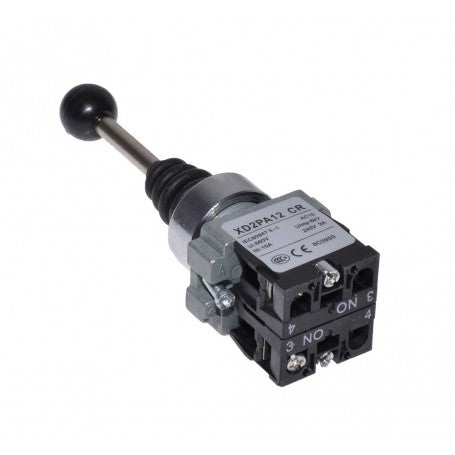

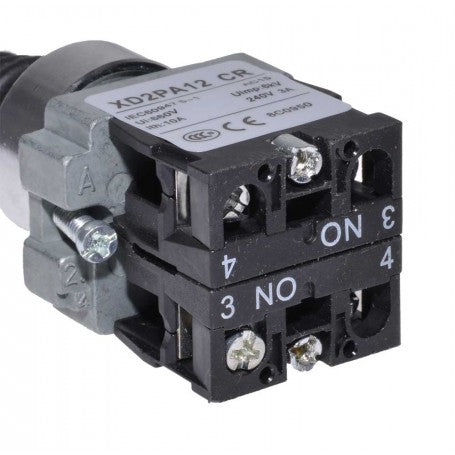

| Connections | Captive screw terminals 2 x 1.5mm |
| Operating rate | 3600 cycles/hour |
| Overvoltage category | Class I |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian law, covering manufacturing defects. You have the right to return the product within 30 days of receipt if it does not meet expectations. Delivery is made quickly via national courier with confirmation.
