RGB LED Strip Controller + 24-Key Remote 3-Wire
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

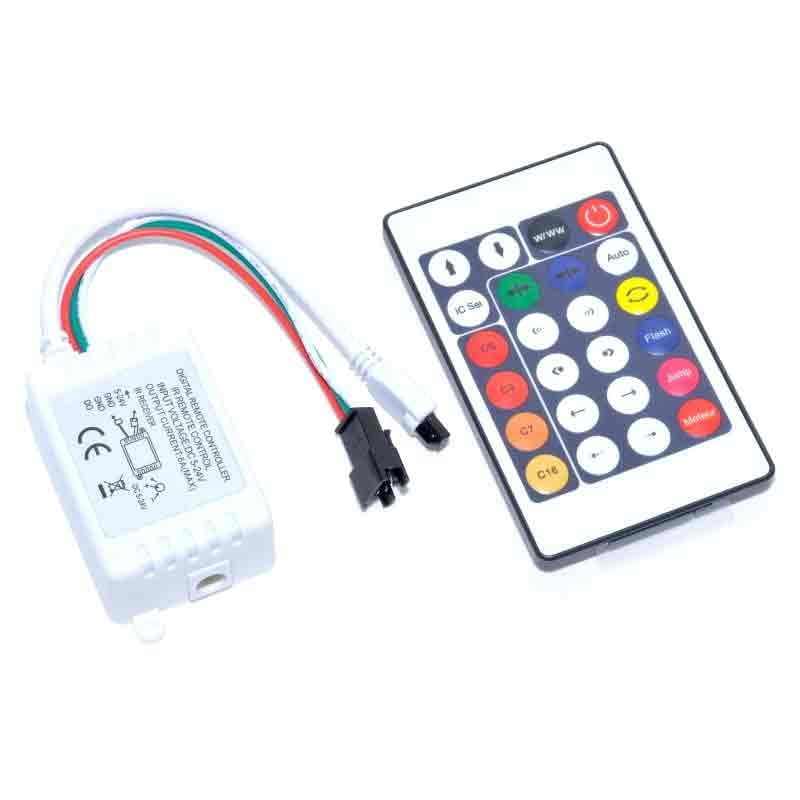

RGB Controller with Remote for 3-Wire LED Strip
The RGB LED strip controller with a 24-key remote allows you to change colors, effects, and light intensity directly from a distance, without having to get up. Compatible with 3-wire digital LED strips and operating voltage between 5V and 24V, it is a practical solution for decorative lighting at home, in the office, or in commercial spaces. Connection is simple, using dedicated connectors included in the package.
What you get with this product

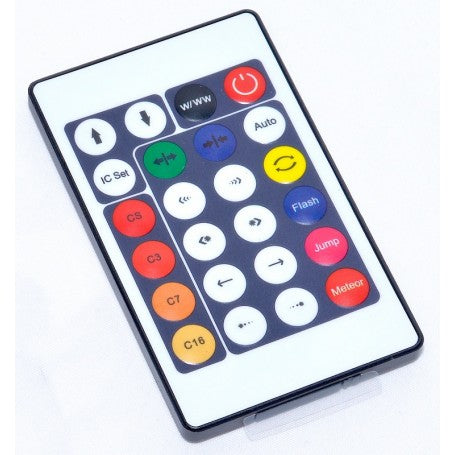

- Complete remote control — the 24-key remote gives you quick access to colors, flash, jump, and meteor effects, and speed adjustment without additional cables
- Wide compatibility — works with 3-wire digital RGB LED strips at DC 5V to 24V, suitable for most existing installations
- Quick installation without technical knowledge — SM type connectors included, wires are distinctly marked, assembly takes just a few minutes
- Varied lighting effects — Auto, Flash, Jump, Meteor modes, and individual color setting capability via CS, C3, C7, C16 buttons
- Compact dimensions — the 53 x 33 x 23 mm casing is easily hidden behind furniture or the LED strip, without affecting the aesthetics of the installation
- 6A output current — sufficient for typical lengths of RGB LED strip without needing an additional amplifier
How it works and how to install it

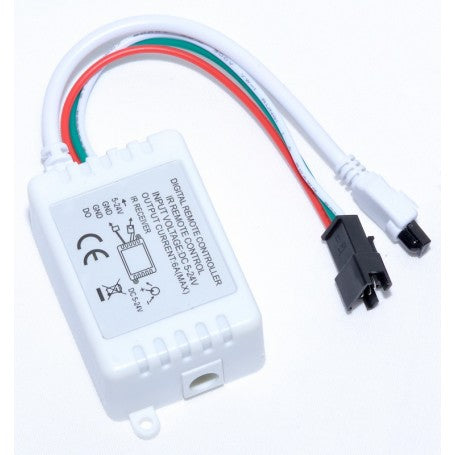

The controller connects between the power supply and the 3-wire RGB LED strip: the red wire to positive, the green wire to data signal, and the white wire to ground. The SM connector on the output plugs directly into the compatible LED strip's socket. The IR remote control runs on a CR2025 or CR2032 3V battery, included or easily found in any store, and transmits commands to the controller's receiver from a distance of up to several meters in a straight line with the receiver.
Frequently asked questions
Does this controller work with any RGB LED strip?
It is compatible with 3-wire digital RGB LED strips (data + power), such as those with WS2811 chips or similar, powered at DC 5V-24V. It is not compatible with standard 4-pin RGB strips.
What battery does the remote use and is it included in the package?
The remote uses a CR2025 or CR2032 3V battery. Check the package contents upon delivery — the battery may not be included and can be purchased separately from any supermarket.
How long can the LED strip controlled by this controller be?
The maximum output current is 6A, which allows controlling strip lengths of up to approximately 5 meters at 5V or more at higher voltages, depending on the power consumption of the chosen strip.
Technical specifications
| Model | CNT-LED-IR-24T-3F |
| SKU | Q-18A017 |
| Input voltage | DC 5V - 24V |
| Output current | 6A |
| Connection mode | 3 wires |
| Controller dimensions | 53 x 33 x 23 mm (L x W x H) |
| Wire length | 120 mm |
| Remote control type | IR, 24 keys |
| Remote control battery | 1 x CR2025 or CR2032 (3V) |
| Operating temperature | -20 / +60 degrees C |
| Housing material | Plastic |
| Package contents | 1 x RGB IR LED strip controller, 1 x 24-key remote control |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, without the need for justification. Delivery is fast via courier, with shipping confirmation and parcel tracking available.
