XT60 Male-Female Connector with 20cm Cable
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun

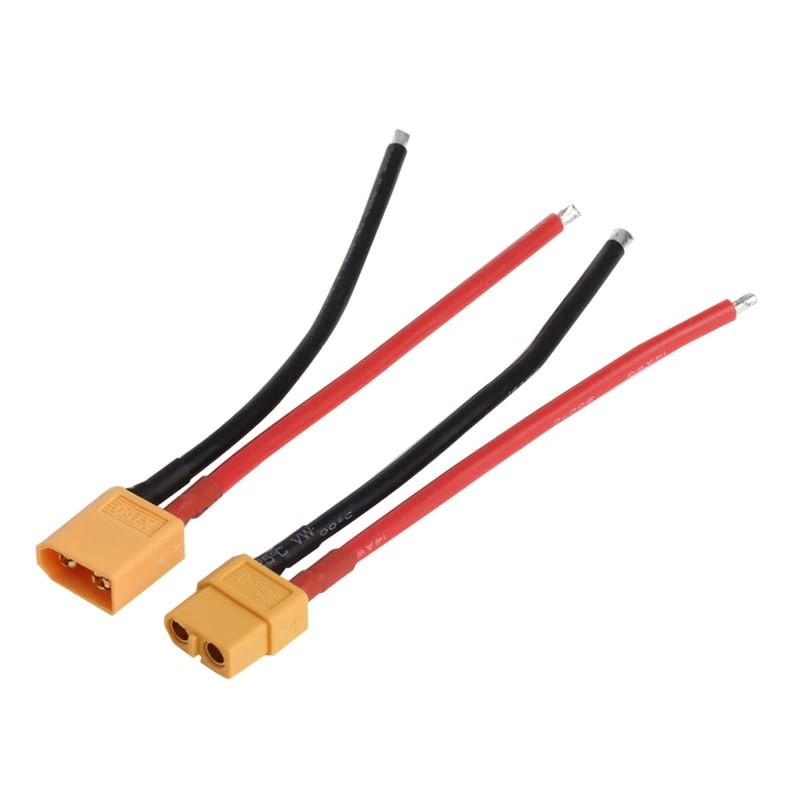

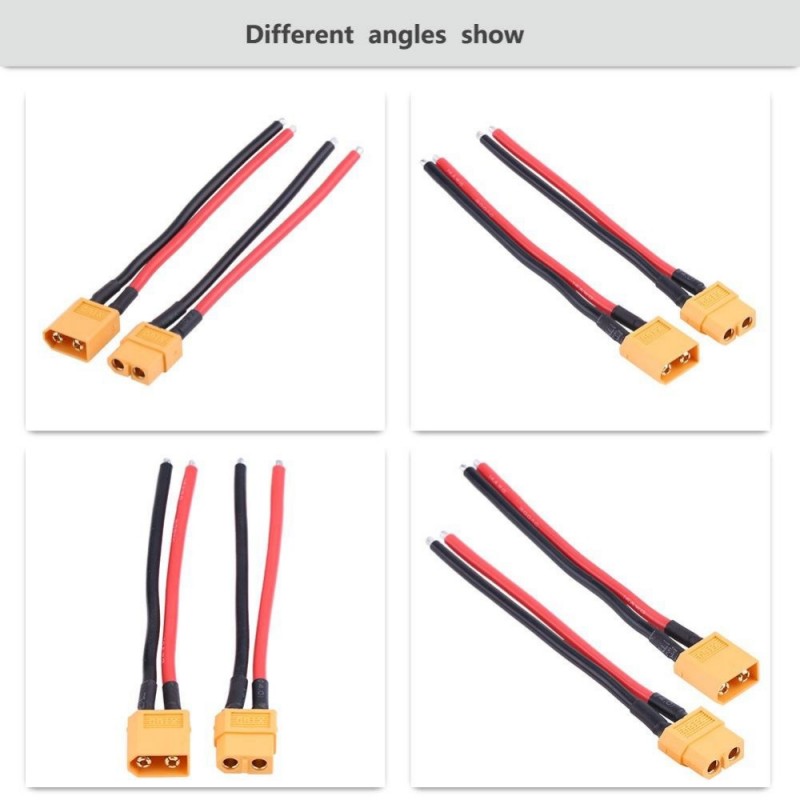

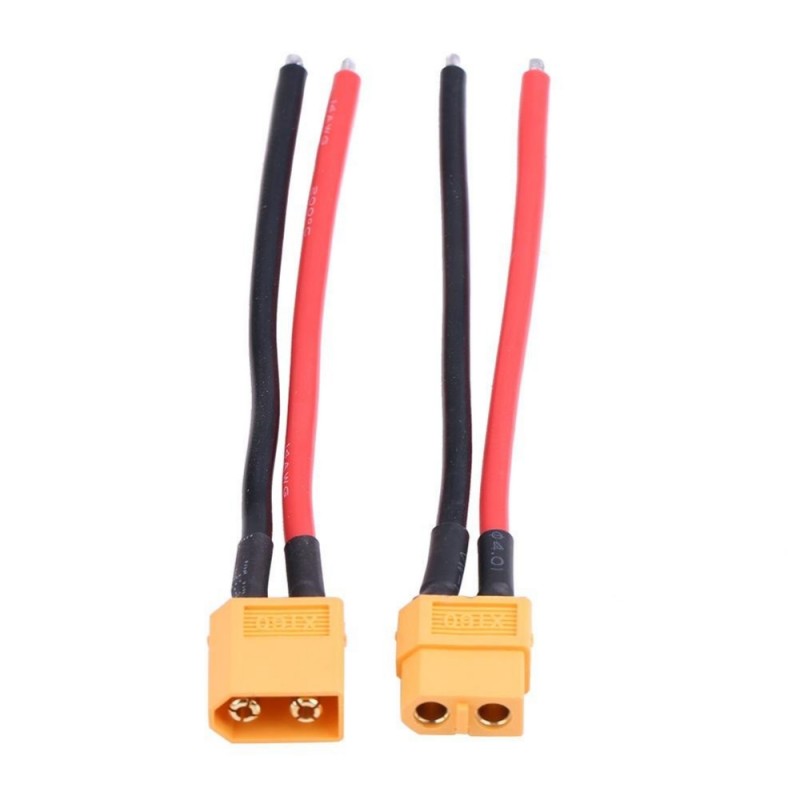

XT60 Female-Male Connector with Cable for Solar Panels
The XT60 female-male connectors with 20 cm cable are designed for photovoltaic circuits and high-current applications where connection reliability is critical. The tin-plated copper contacts and heat-resistant PVC housing guarantee stable conductivity even in challenging thermal conditions. The set includes both parts — female and male plugs — ready for soldering or crimping onto existing wiring.
What you get with this product

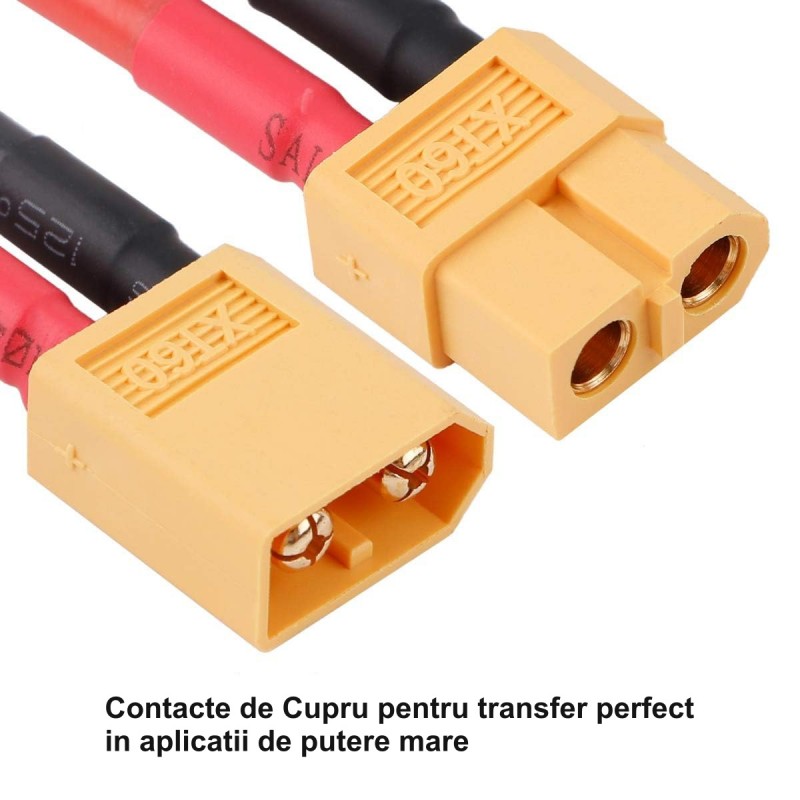

- Secure high-current connection — copper contacts ensure electrical transfer without significant losses, even at continuous loads up to 60A
- Extremely low internal resistance (0.8 mΩ) — minimal connector heating, longer lifespan for the entire circuit
- Flexible 12 AWG 20 cm cable included — sufficient for making necessary junctions without needing additional parts
- Operates between -20°C and +120°C — suitable for both outdoor solar installations and high-temperature technical spaces
- Complete female-male set in one package — no separate purchase of the two plug types required
- Polarized design — the XT60 connector shape prevents polarity reversal when connecting
How it works and how to install it

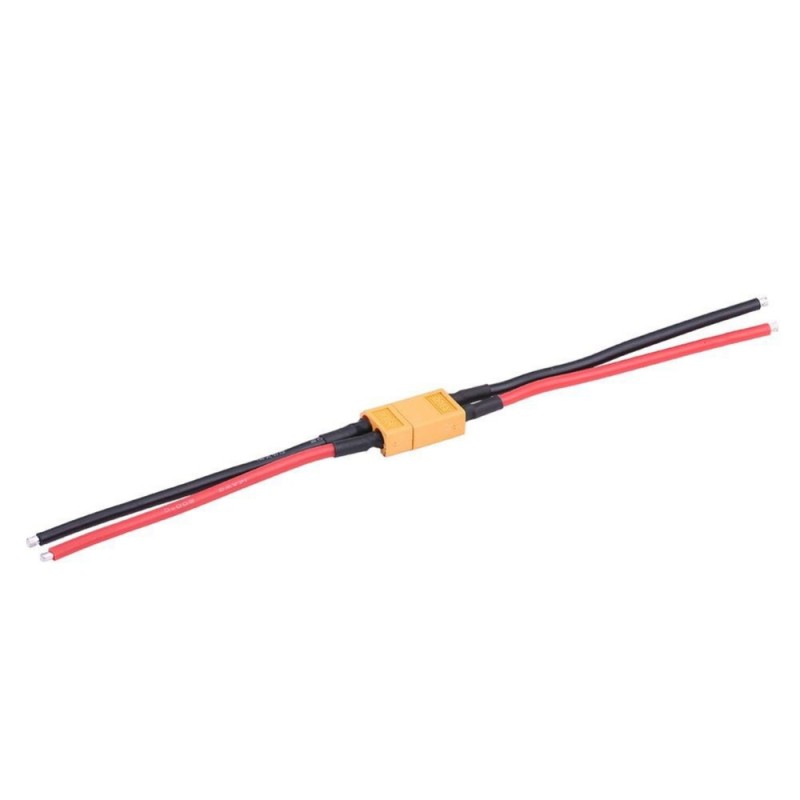

XT60 connectors are assembled by soldering or crimping onto the target circuit wires — the ends of the 20 cm cable are already stripped and ready for use. The female and male plugs mechanically couple in a single motion, with an audible click confirming complete contact. No special tools are required for connection or disconnection during normal operation.
Frequently Asked Questions
Can I use these XT60 connectors directly on a solar panel or charge controller?
Yes, XT60 connectors are compatible with most charge controllers and inverters that use this standard. Please check the accepted plug type of your equipment beforehand.
What cable gauge does the XT60 plug support for soldering?
The XT60 connector's solder cup is sized for cables between 12 AWG and 14 AWG, which corresponds to a cross-section of approximately 2.5–4 mm².
Are the connectors resistant to outdoor use, exposed to humidity or sun?
The PVC housing is thermally resistant up to 120°C and stable under moderate UV exposure, but for installations permanently exposed to the elements, additional protection of the junction with heat-shrink tubing is recommended.
Technical Specifications
| Connector type | XT60 female + XT60 male |
| Rated current | 60A |
| Maximum current | 100A |
| Internal resistance | 0.8 mΩ |
| Operating temperature range | -20°C to +120°C |
| Housing material | Temperature-resistant PVC |
| Contact material | Tin-plated copper |
| Cable gauge | 12 AWG |
| Cable length | 20 cm |
| Package contents | 1 x XT60 female plug with cable + 1 x XT60 male plug with cable |
| SKU | Q-12C039 |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. You can return the product within 30 days of delivery if it does not meet your expectations. Delivery is fast by courier, with shipping confirmation.
