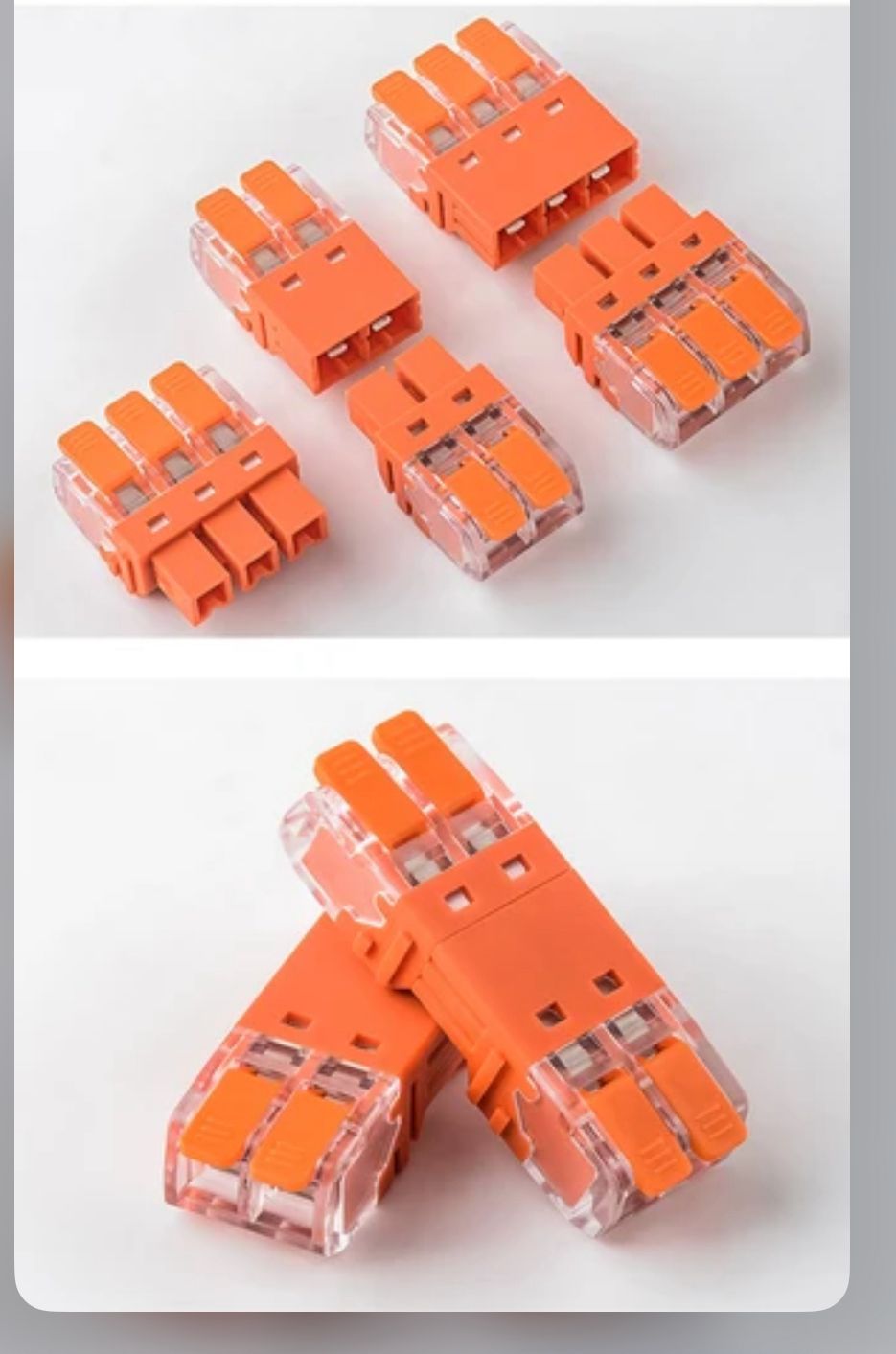

CMK-643 Push-in Wire Connector
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Tool-free quick push connector for cables
The CMK-643 Push quick connector allows solid, stranded, and fine-stranded cables to be joined directly in the junction box, without a screwdriver or other tools. Designed for residential and commercial electrical installations, it provides a secure and reversible connection in seconds. With a capacity of 32A at 250V, this junction box connector meets the usual requirements of lighting and socket installations.
What you get with this product
- Tool-free connection — simply insert the cable after raising the lever to 90 degrees, without a screwdriver or pliers
- Reversible connection — the locking lever allows the cable to be removed and reinserted as many times as necessary, without damaging the conductor
- Transparent side body — visually check if the cable has entered the connector correctly, without opening the box
- Wide temperature range (-40°C to +105°C) — functions stably in unheated technical spaces as well as near heat sources
- Compatible with multiple conductor cross-sections — accepts cables between 0.2 and 4 mm², covering most domestic and light industrial installations
- CE and CCC certified — connector tested and marked according to European electrical safety standards
How it works and how to install it

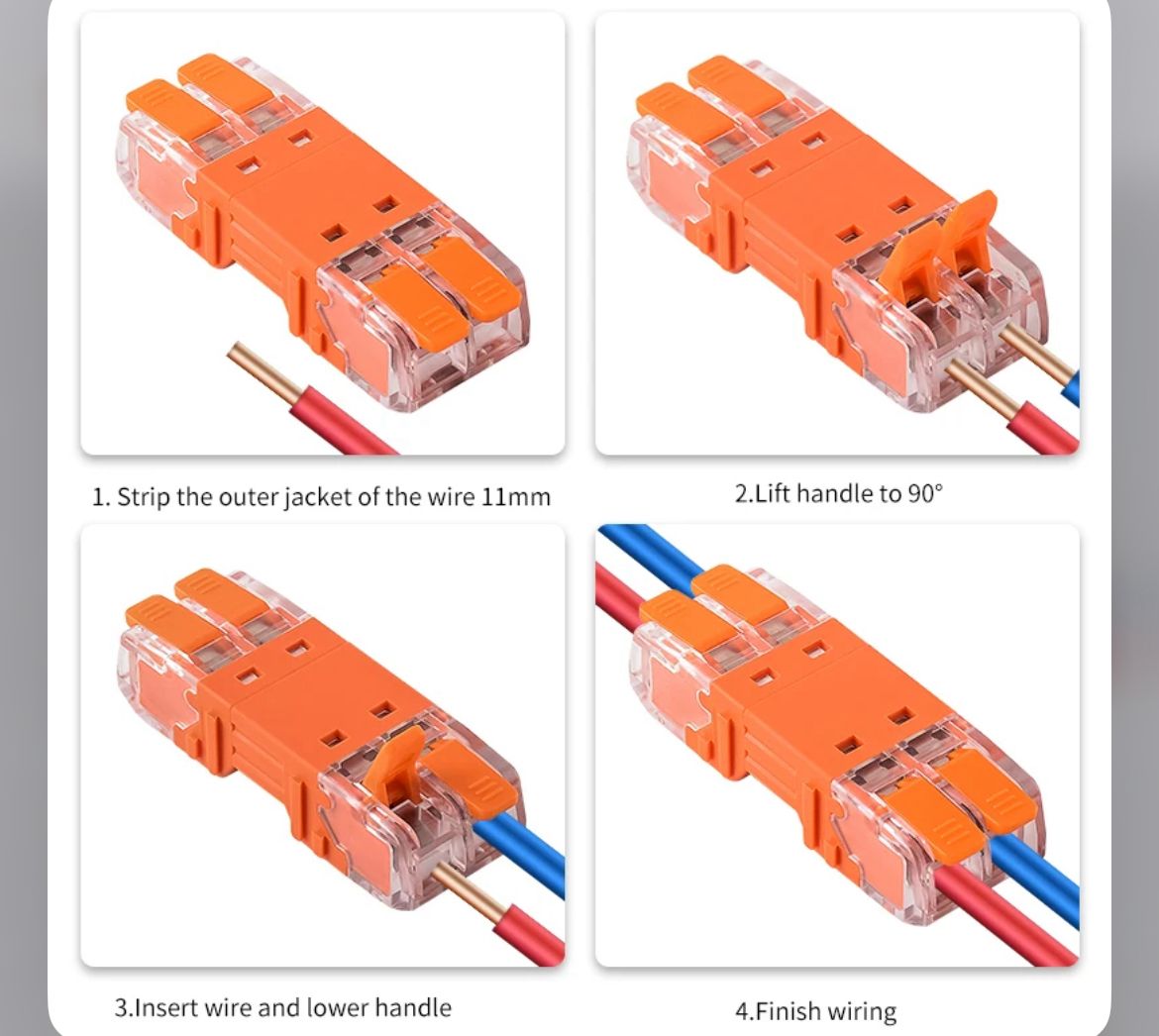

Installing the CMK-643 Push quick connector is done in four simple steps: strip the cable insulation for a length of 11 mm, raise the orange lever to 90 degrees, insert the conductor all the way in, then lower the lever to lock the connection. No tools are needed, and the entire operation takes less than a minute per conductor. In case of installation modification, the lever is raised again, and the cable can be removed without damage.
Frequently Asked Questions
Can I use this connector for flexible cables, not just rigid ones?
Yes, the CMK-643 connector accepts both solid and stranded and fine-stranded conductors, with cross-sections between 0.2 and 4 mm².
How long should the cable be stripped before insertion?
The recommended stripping length is 11 mm (approximately 0.43 inches), as indicated in the product's visual instructions.
Can the connector be reused if I change the installation?
Yes, the lever mechanism allows repeated opening and closing, so the connector can be reused without needing to be replaced after the first use.
Technical Specifications
| Model | CMK-643 / CMV-524 |
| Rated voltage | 250V |
| Rated current | 32A |
| Accepted conductor cross-section | 0.2 – 4 mm² |
| Recommended stripping length | 11 mm |
| Operating temperature | -40°C – +105°C |
| Compatible conductor type | Solid, stranded, fine-stranded |
| Certifications | CE, CCC |
| Product type | Lever push junction box connector |
| SKU | EAZ-CMK643 |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with Romanian law. You can return the product within 30 days of receipt if it does not meet expectations. Delivery is fast via courier, with shipping confirmation.
