QUICK CONNECTOR CMK-642 Push
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

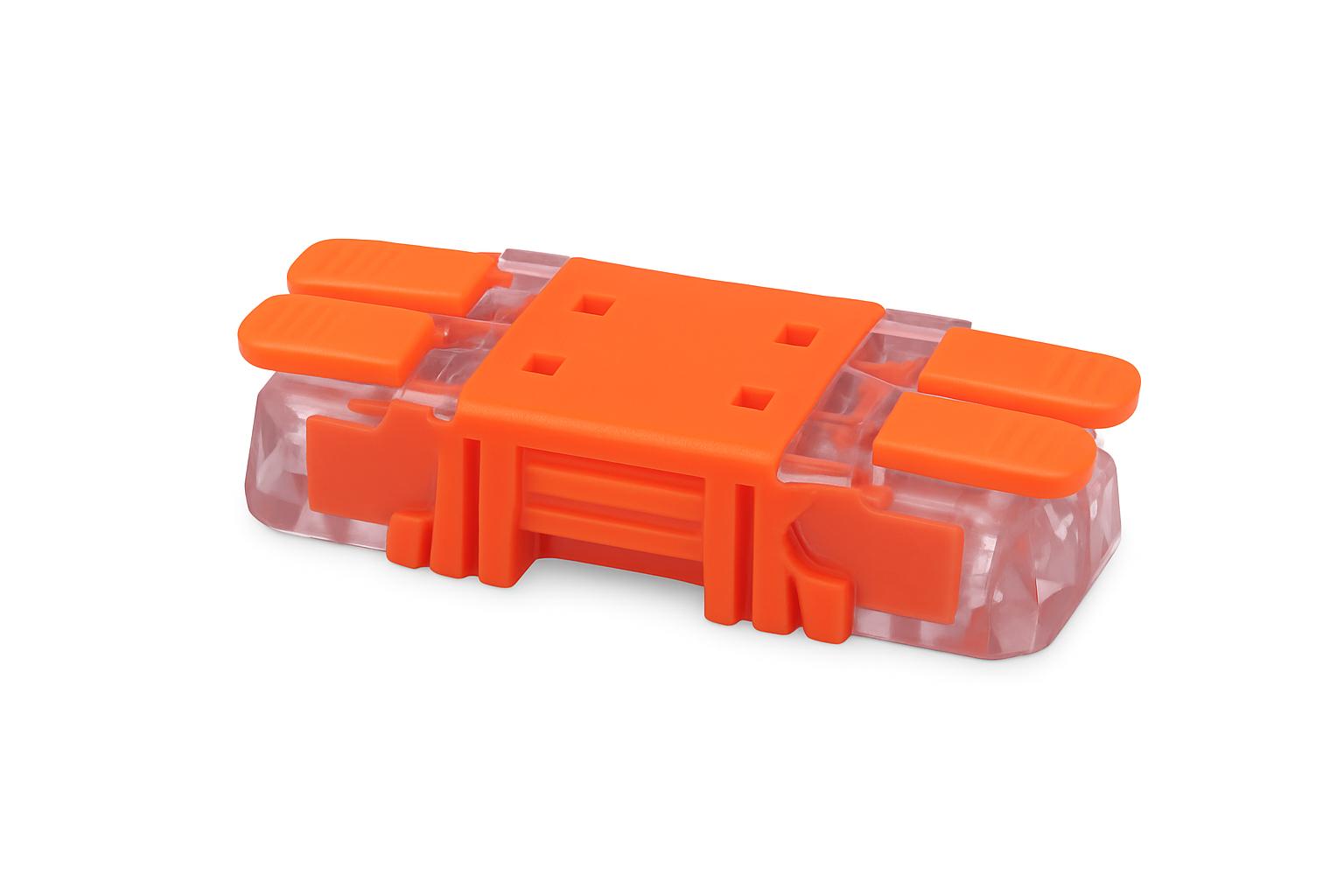

Tool-free push-in quick connector for cables
The CMK-642 Push quick connector allows solid, stranded, and fine-stranded cables to be joined in a single motion, without a screwdriver or other tools. It is suitable for electrical installations in junction boxes, panels, or LED connections, where speed and connection safety are important. The transparent housing allows immediate visual inspection of the contact made.
What you get with this product
- Fast tool-free connection — the cable is inserted directly, and the push-in mechanism securely locks the conductor in fractions of a second
- Compatible with multiple conductor types — works with solid, stranded, and fine-stranded cables between 0.2 and 4 mm²
- Extended thermal resistance — operating range of -40°C to +105°C makes it suitable for both cold environments and heat-dissipating applications
- Instant visual verification — the transparent housing confirms at a glance that each conductor is correctly positioned
- Compact dimensions — 47.6 mm width and 22.2 mm depth allow installation in standard boxes without additional space
- Solid electrical capacity — supports up to 450V and 32A, suitable for lighting circuits and general-purpose outlets
How it works and how to install it

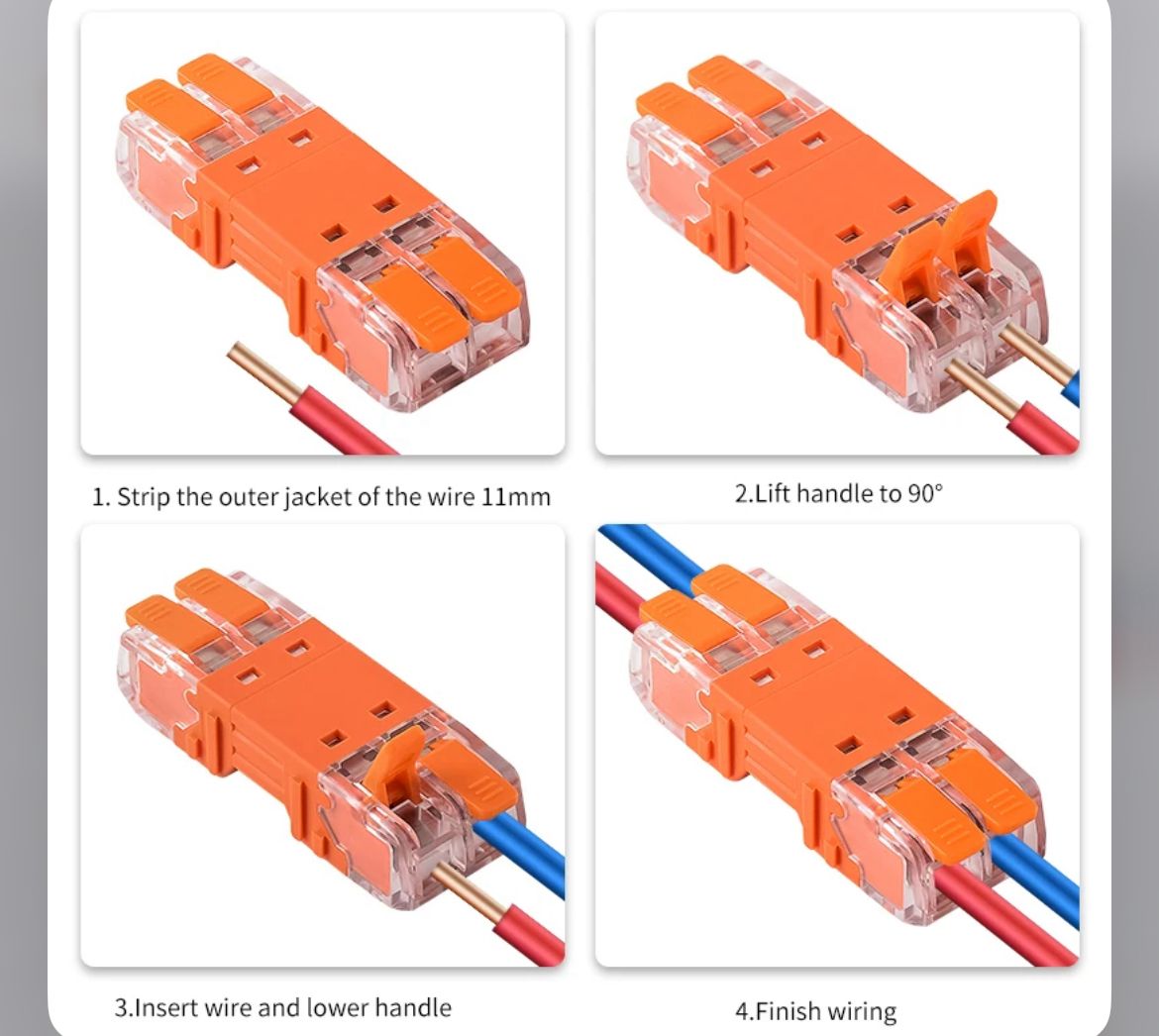

The CMK-642 Push connector uses an orange lever mechanism: lift the lever, insert the stripped conductor (11 mm length), then press the lever back down to lock the conductor. No tools are required, and the operation takes a few seconds per conductor. For removal or reuse, the lever is lifted again, releasing the conductor without damaging it.
Frequently Asked Questions
Can I use this connector for fine-stranded cables such as MYYM or H05V-K?
Yes, the connector accepts fine-stranded cables from 0.2 mm², including common flexible types used in lighting installations.
Can the connector be reused after being used once?
Yes, the lever mechanism allows repeated opening and closing, so the connector can be reused if the installation is reconfigured.
Is it suitable for outdoor installations or wet environments?
The CMK-642 connector does not have an IP rating declared for outdoor use; it is recommended for installations in protected areas or inside sealed junction boxes.
Technical Specifications
| Model | CMK-642 |
| SKU | EAZ-CMK642 |
| Type | Quick push-in connector with lever |
| Rated Voltage | 450V |
| Rated Current | 32A |
| Accepted Conductor Cross-section | 0.2 – 4 mm² |
| Compatible Conductor Types | Solid, stranded, fine-stranded |
| Stripping Length Required | 11 mm |
| Operating Temperature | -40°C – +105°C |

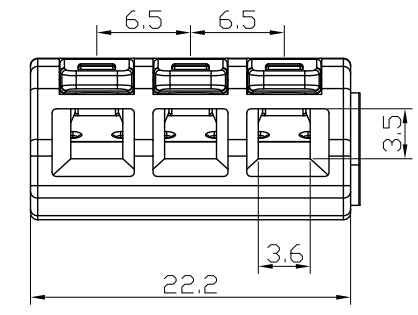

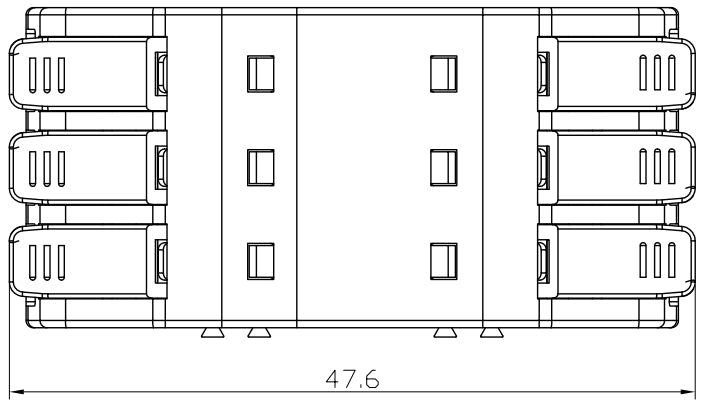

| Overall Width | 47.6 mm |
| Conductor Section Width | 22.2 mm |
| Pole Spacing | 6.5 mm |
| Color | Orange / transparent |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receipt, without requiring justification. Delivery is carried out quickly by courier throughout Romania.
