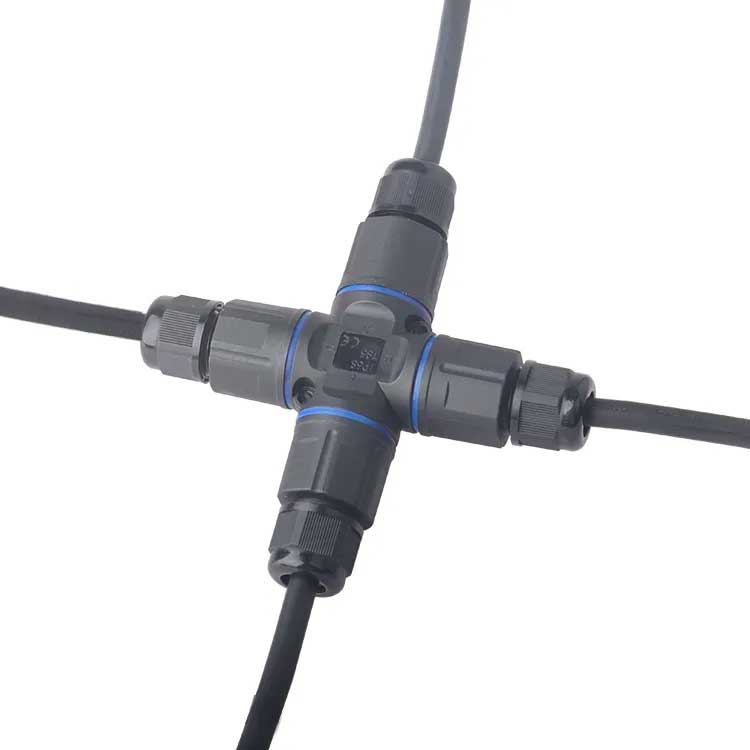

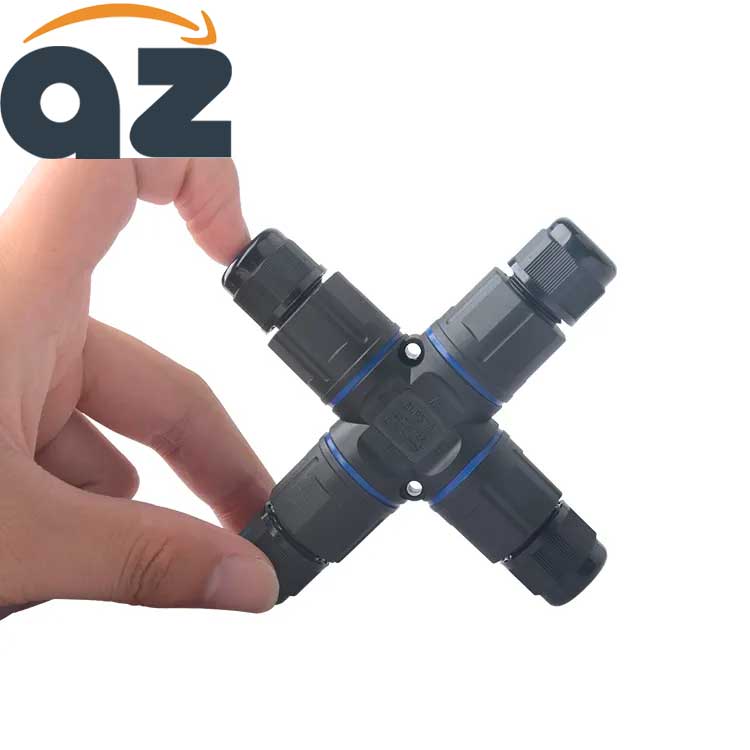

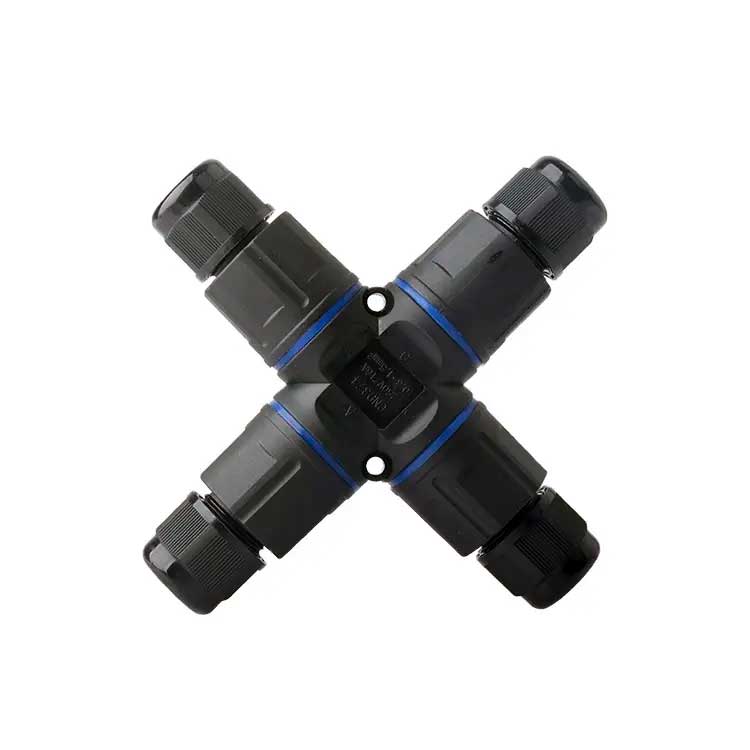

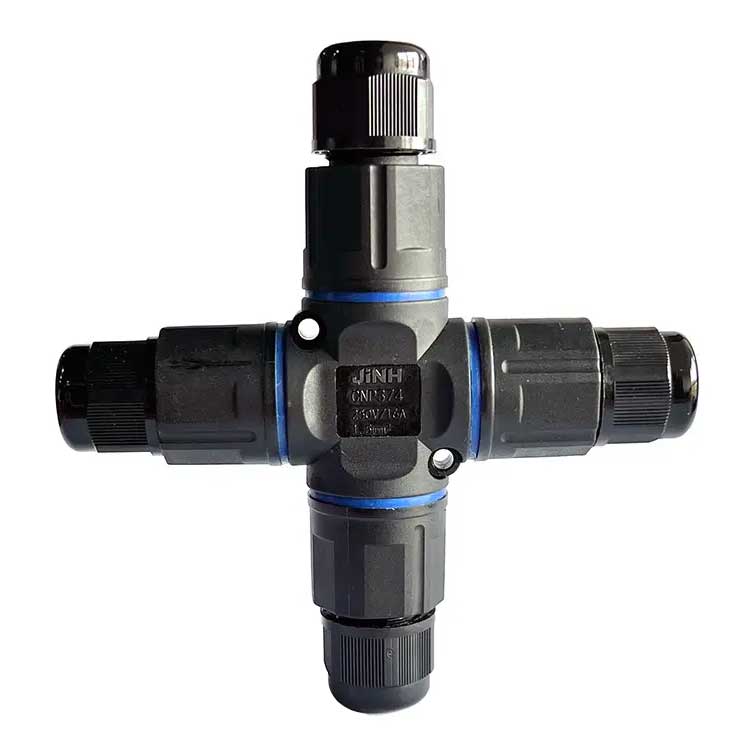

IP68 waterproof connector for 4 outdoor cables
The IP68 waterproof 2-pole electrical connector allows 4 cables to be connected simultaneously at a single point, without the need for an additional distribution box. Designed for outdoor, underground, or wet environments, this connector ensures complete sealing against water, dust, and UV radiation. It's the suitable solution for street lighting, photovoltaic systems, and electrical networks exposed to harsh weather conditions.
What you get with this product
- Simple connection of 4 cables in a single connector — eliminates the need for a separate junction box and reduces weak points in the installation

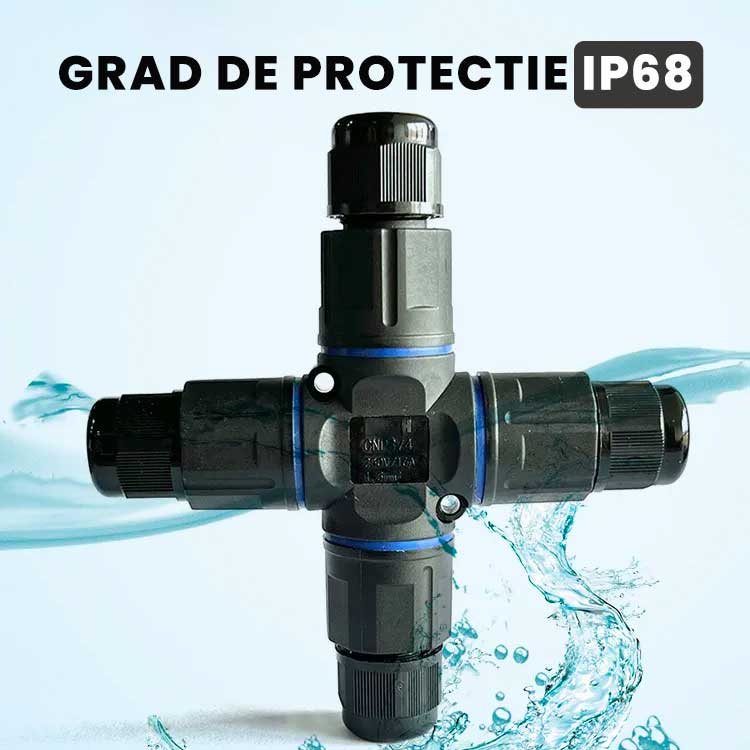

- Certified IP68 protection — the connector resists water immersion up to 3.5 m deep, operating flawlessly in rain, frost, or mud
- PA66 Polyamide body — rigid, abrasion-resistant, thermally stable, and anti-UV material that does not degrade over time with outdoor exposure
- Double sealing via rubber rings and tightening nut — the connection remains airtight even with vibrations or accidental cable pulls
- Compatible with cables from 5 to 11 mm in diameter — fits most cable types used in photovoltaic, street, or garden installations

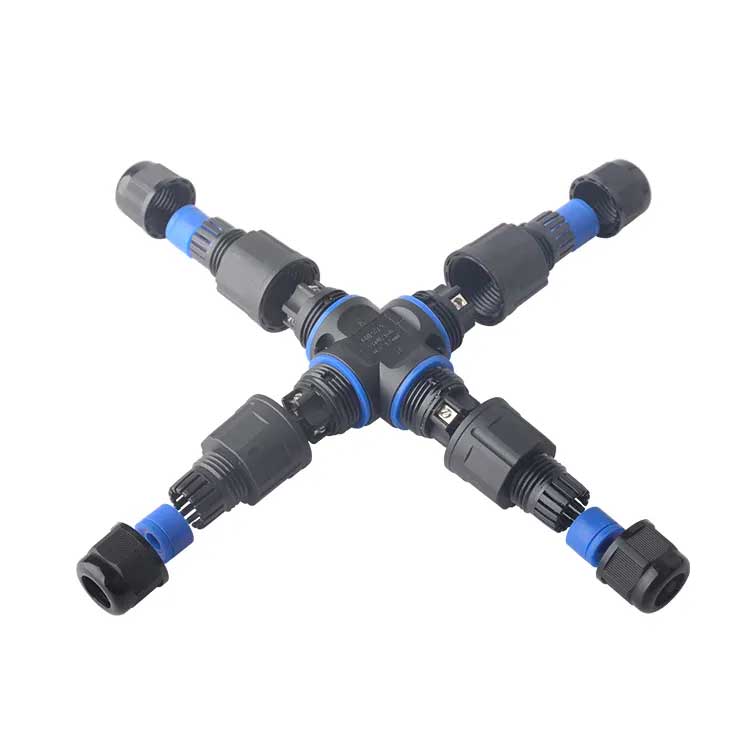

- Installation without special tools — components (waterproof tube, clamping claw, wire terminal, waterproof rubber) are included and can be assembled manually in minutes
How it works and how to install it

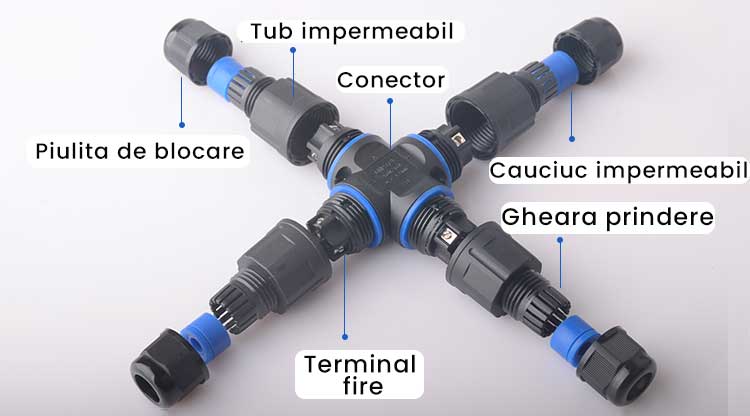

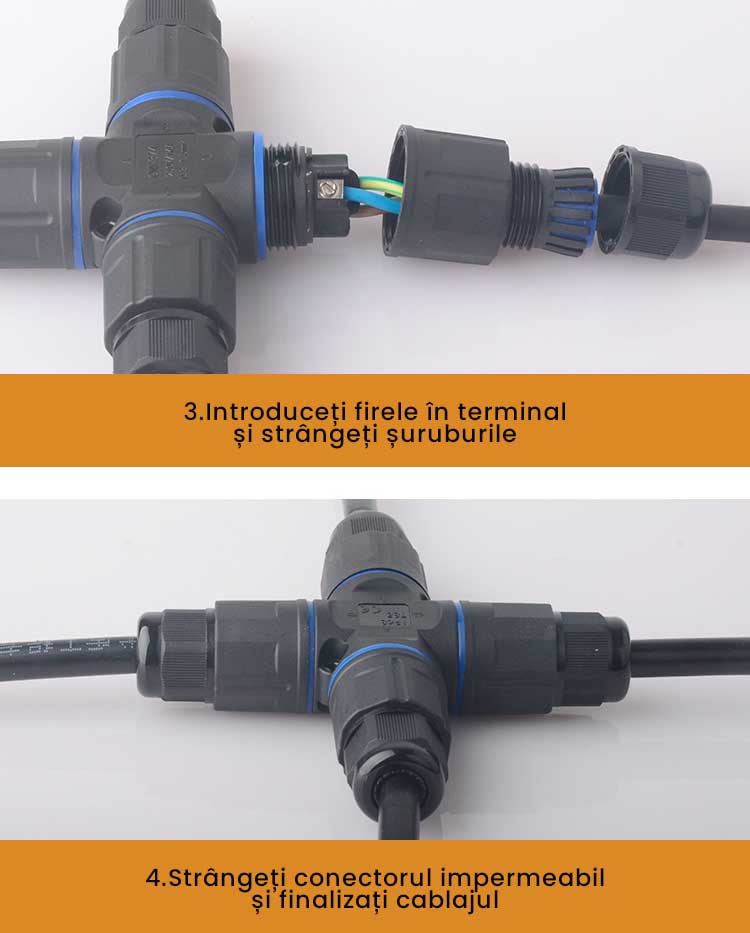

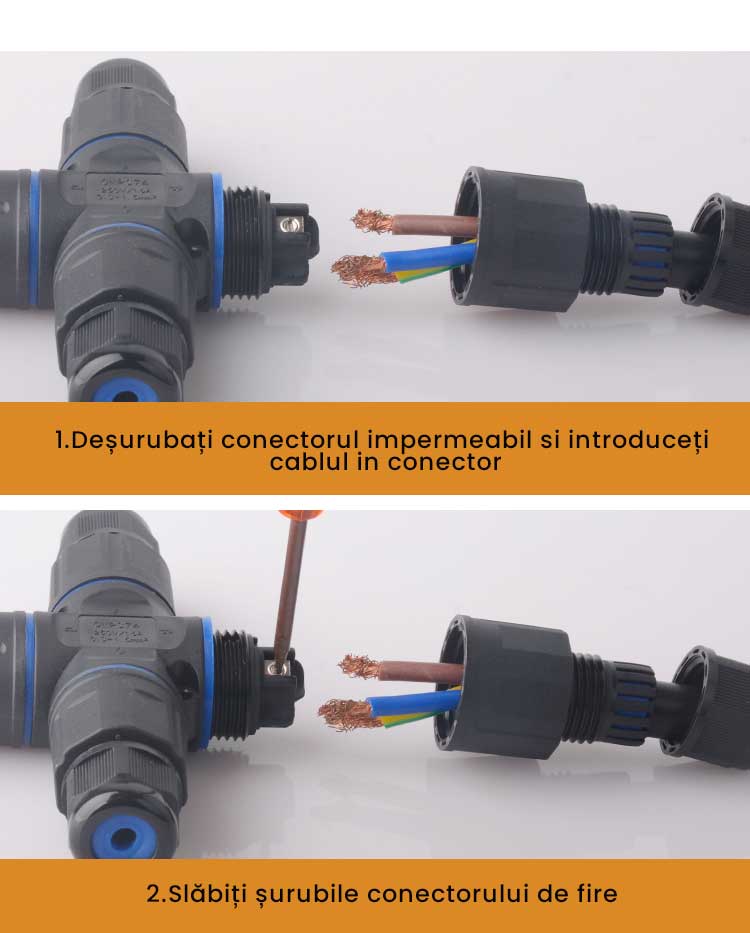

The connector consists of a central body with 4 outlets, each equipped with a waterproof tube, a clamping claw, rubber rings, and a locking nut. The cable is inserted through the nut and tube, the wires are fixed in the internal terminals on the corresponding poles, then the nut is tightened until a complete seal is achieved — no soldering, no power tools. The process is repeated for each of the 4 cables. After assembly, the rubber rings compressed by the nut form the waterproof barrier that ensures the IP68 rating.
Frequently Asked Questions
Can I use this connector buried directly in the ground?
Yes, the IP68 rating allows for underground use. The connector can withstand moisture and pressure up to 3.5 m deep, making it suitable for standard depth buried installations.
What is the maximum cable thickness the connector accepts?
The connector is compatible with cables having an outer diameter between 5 and 11 mm, covering most sections used in outdoor and photovoltaic electrical installations.
Is it suitable for solar systems or photovoltaic panels?
Yes, the 2-pole IP68 connector is frequently used in photovoltaic installations for connecting outdoor DC cables, as it has UV resistance and thermal variation resistance specific to these applications.
Technical specifications
| SKU | EAZ-CNP374-2P |
| Brand | ElectroAZ |
| Connector type | Waterproof cross electrical connector, 4 cables |
| Number of poles | 2 |
| Number of outputs | 4 |
| Supported cable diameter | 5 - 11 mm |
| Protection rating | IP68 |
| Maximum immersion depth | 3.5 m |
| Body material | Polyamide PA66 |
| Sealing element | Rubber rings + tightening nut |
| Resistance | Waterproof, dustproof, anti-UV |
| Applications | Underground installations, street lighting, photovoltaic systems, outdoor installations |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is carried out quickly by courier, with shipping confirmation and package tracking available.
