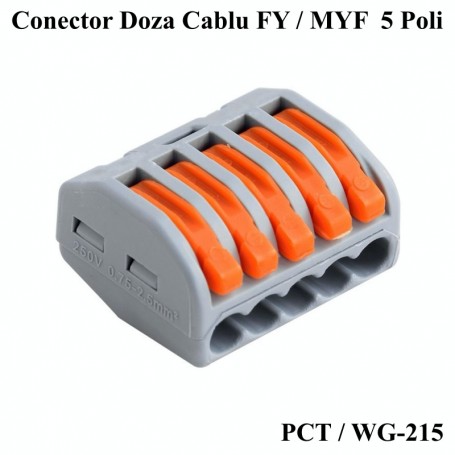

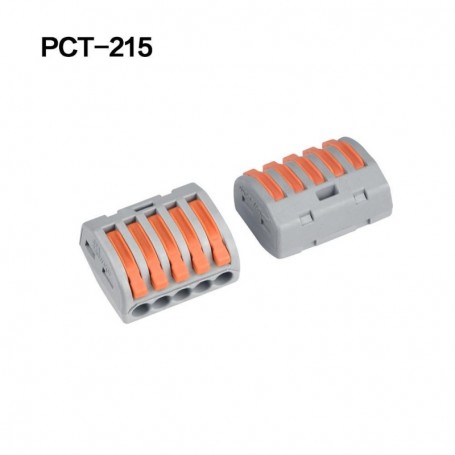

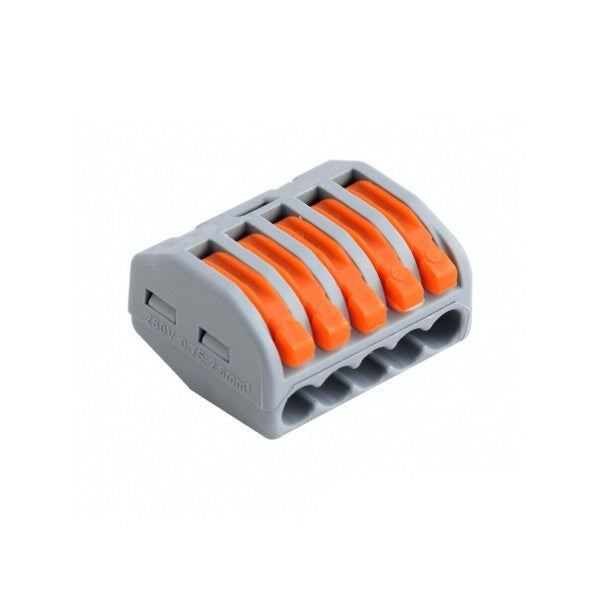

5-pole quick connector for safe electrical installations
The PCT-215 5-pole quick connector transforms electrical installation from a complicated job into a simple operation that takes seconds. The lever system allows wires to be connected and disconnected without special tools, ideal for junction boxes, switches, or sockets. Compatible with solid and flexible wires from 0.08 to 4 mm², it supports current up to 32A and voltage of 400V.
What you get with this product
- Quick installation without special tools — lift the lever, insert the wire, lower the lever, and the connection is ready in seconds
- Increased safety with CAGE CLAMP technology — each wire is firmly secured, eliminating the risk of connections loosening over time
- Space saving in boxes — compact dimensions of 25x20x14mm allow mounting in narrow or overloaded boxes
- Maximum versatility — works with solid and flexible wires between 0.08-4mm², from classic installations to modern cables
- Damage-free disconnection — wires are easily removed by lifting the lever, without tearing or breaking conductors
- Durability for permanent installations — robust ABS housing rated for 400V and 32A, tested for overvoltages of 4kV
How it works and how to install it

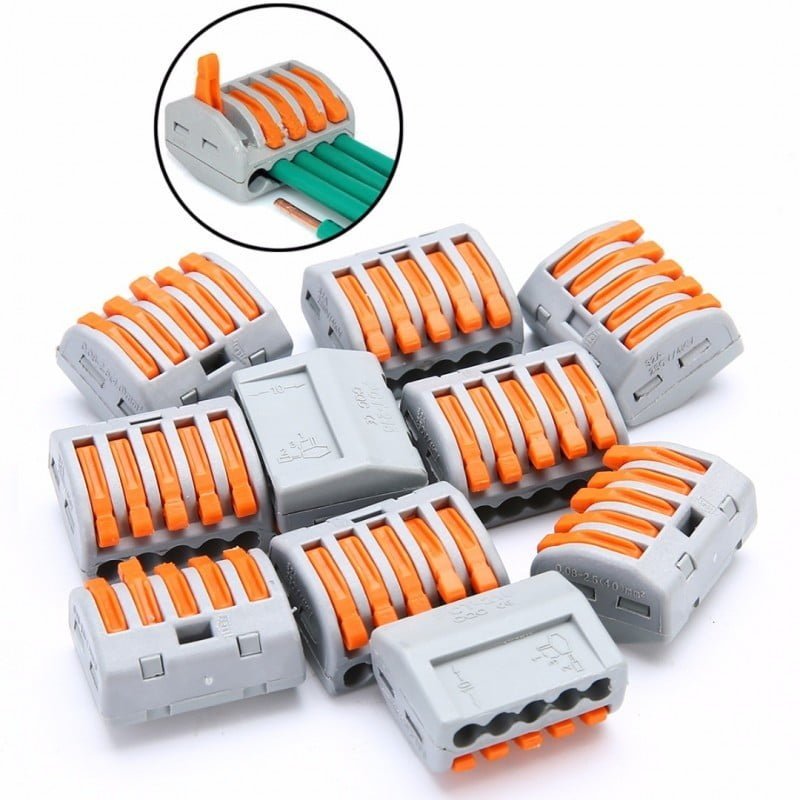

The connector uses CAGE CLAMP technology with orange levers: lift the lever, insert the stripped wire 9-10mm, lower the lever, and the connection is automatically completed. To disconnect, lift the lever again and pull the wire. It does not require screwdrivers, pliers, or special tools. Suitable for junction boxes, equipment boxes, light fixtures, sockets, or any electrical junction with up to 5 wires.
Frequently Asked Questions
Does it work with very thin alarm or LED wires?
Yes, it accepts wires from 0.08mm² (28 AWG), suitable for signal cables, alarms, or LED strips with thin wires.
Can I connect a solid wire with a flexible one in the same connector?
Yes, you can mix different types of wires in the same box — each slot correctly grips both solid and flexible wires.
How hard is it to pull the lever to insert the wire?
The lever is easily actuated with one finger, without effort. Even installers with little experience can use it quickly.
Technical Specifications
| Model | PCT-215 / WG-215 |
| Number of poles | 5 connection points |
| Rated voltage | 400V |
| Rated current | 32A |
| Overvoltage resistance | 4kV |
| Connection technology | CAGE CLAMP with levers |

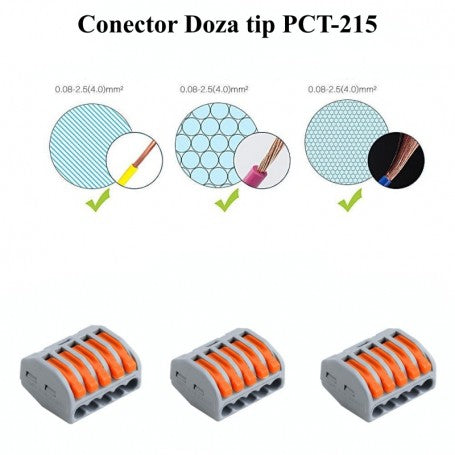

| Supported conductor type | Solid + flexible (fine stranded) |
| Wire cross-section (rigid) | 0.08 - 2.5mm² (28-14 AWG) |
| Wire cross-section (flexible) | 0.08 - 4mm² (28-12 AWG) |
| Wire stripping length | 9-10mm |
| Dimensions (L x W x H) | 25 x 14 x 20mm |
| Weight | 4.2g |
| Housing material | ABS plastic |
| Mounting type | Side wiring |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. Right of return within 30 days of receiving the order. Fast delivery by national courier with SMS confirmation.
