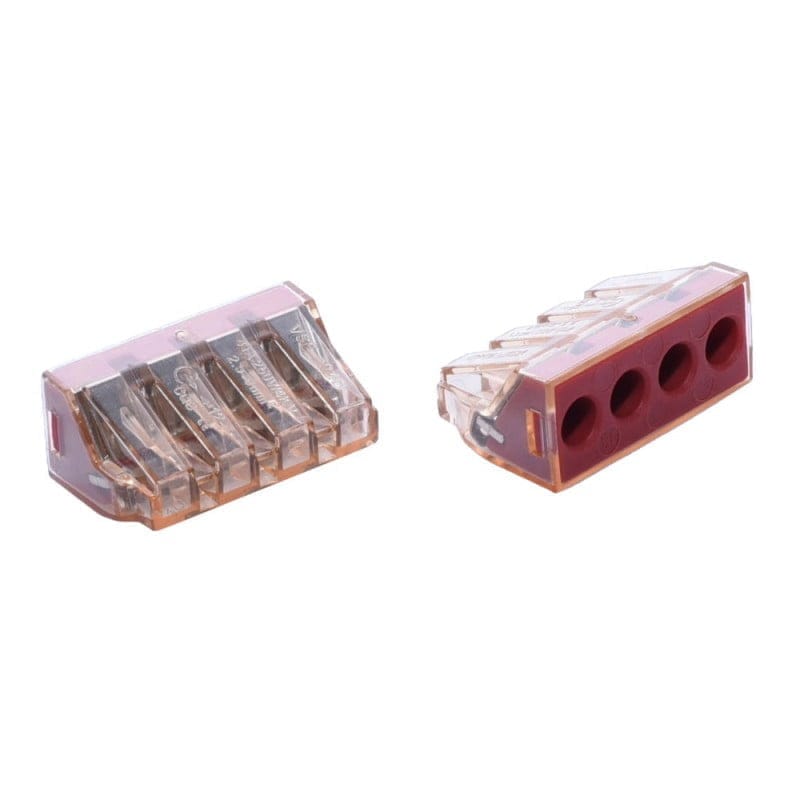

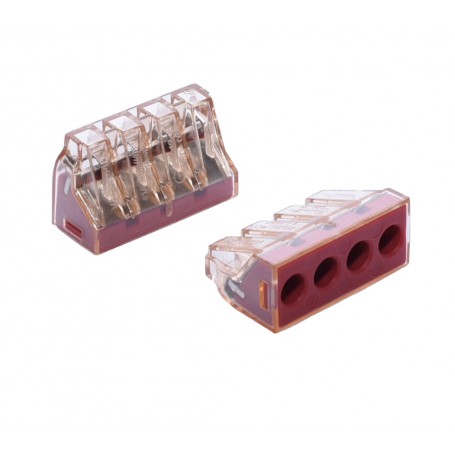

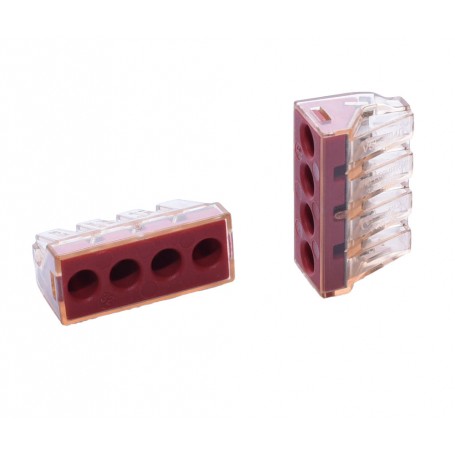

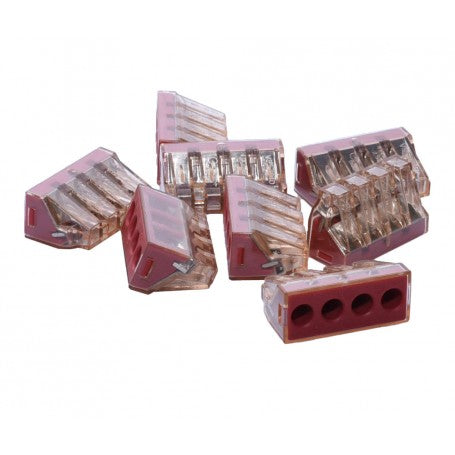

Quick Junction Box Connector 4-Pole
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
4-pole quick connector for safe electrical installations

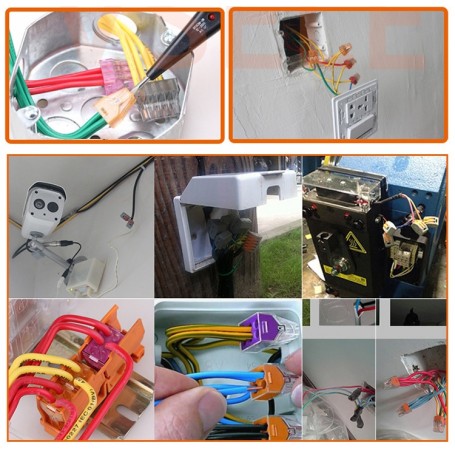

The PCT-104D 4-pole quick connector ensures stable and fast electrical connections without the need for special tools. Ideal for lighting installations, electrical panels, and automation, it supports cables between 2.5-6mm and offers a nominal voltage of 4KV for maximum safety. The professional solution for quick electrical connections in any residential or industrial project.
What you get with this product
- Tool-free installation — connect by simply pushing wires into the holes, no screws or special pliers needed
- Secure connection at over 4000V rated voltage — superior protection against overvoltages and short circuits
- Compatible with wires between 2.5-6mm — works with most standard cables in residential and industrial installations
- Durable transparent body — visually check the connection quality and correct conductor position after installation
- Supports up to 41A rated current — you can connect powerful loads without overheating or degradation
- Reusable and detachable — you can modify the installation or correct connections without replacing the connector
How it works and how to install it
The connector uses an internal spring mechanism that firmly grips the conductor when you insert it into the corresponding hole. For installation, strip approximately 12-13mm of insulation from the end of the wire, insert the conductor into the appropriate hole until you feel resistance, then gently pull to check the grip. Removal is done by pressing the transparent lever and pulling the wire simultaneously. No electrician is required — anyone with minimal basic knowledge can make the connection in a few seconds.
Frequently Asked Questions
Can I use the connector for aluminum wires or only copper?
The connector is compatible with copper and aluminum conductors, both solid and stranded, in the 2.5-6mm section. For stranded conductors, the use of terminal sleeves is recommended.
How easy is it to remove the wire once it's inserted?
The system allows disconnection by pressing the transparent lever. The spring releases the wire, allowing you to modify or correct the installation without damaging the connector or the conductor.
Can I use the connector in outdoor junction boxes or wet spaces?
The connector does not have declared IP protection and is recommended for use in standard electrical junction boxes or dry environments. For outdoor applications or wet areas, ensure it is in a suitable sealed box.

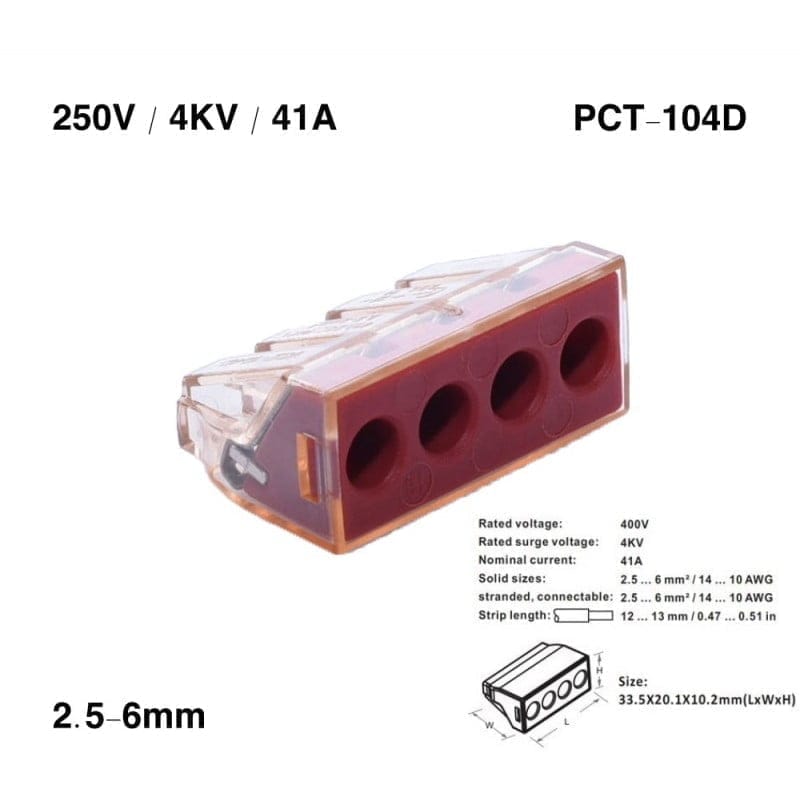

Technical specifications
| Model | PCT-104D |
| Number of poles | 4 |
| Rated voltage | 400V |
| Surge voltage | 4KV |
| Rated current | 41A |
| Solid conductor cross-section | 2.5 – 6mm (14 – 10 AWG) |
| Stranded conductor cross-section | 2.5 – 6mm (14 – 10 AWG) |
| Recommended stripping length | 12 – 13mm |
| Dimensions | 33.5 x 20.1 x 10.2mm (L x W x H) |
| Material | Durable transparent/red plastic |
| EAN | 0781499707396 |
Warranty and support
The product benefits from a 24-month warranty in accordance with current Romanian legislation. We offer a 30-day return policy and fast delivery via courier services throughout the country. For technical questions or additional installation details, consult the FAQ section or contact us directly.
