Quick Junction Box Connector 4-Pole
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
4-pole quick junction box connector for secure electrical connections
The 4-pole quick junction box connector allows four electrical wires to be joined at a single point, without special tools and without soldering. Ideal for distribution boxes, electrical panels and lighting installations, this push-in connector significantly reduces working time for any electrical intervention. The transparent casing allows visual verification of the connection before energization.
What you get with this product
- Instant connection by simply pushing the wire — no screwdriver or pliers needed to make the connection
- Compatible with solid and stranded conductors between 0.75 and 2.5 mm², suitable for the vast majority of residential and commercial installations
- Transparent housing with orange insert — visually check that each wire is correctly inserted before closing the box
- Supports a rated current of 24A and a voltage of 400V, comfortably meeting the requirements of general-purpose single-phase and three-phase installations
- Compact dimensions (19.5 x 13 x 13.1 mm) — fits without difficulty into standard recessed boxes
- Reusable — the wire can be removed and reinserted if the connection needs to be changed
How it works and how to install it

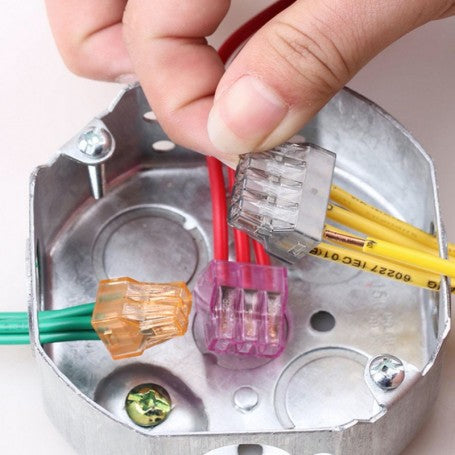

The 4-pole quick junction box connector works on the principle of push-in clamping: strip the end of the wire to a length of 12 mm, then push the conductor directly into the corresponding hole until you feel it lock. No tools, advanced electrical knowledge, or additional operations are required. For disassembly, most connectors in this series allow the wire to be released by a thin tool inserted into the side release hole.
Frequently Asked Questions
Does this connector work with stranded wires, not just solid conductors?
Yes, the connector accepts both solid conductors (0.75–2.5 mm² / 18–12 AWG) and stranded conductors (1.5–2.5 mm² / 16–12 AWG), according to the technical specifications.
How much should I strip the wire before inserting it into the connector?
The recommended stripping length is 12 mm (0.47 in), as indicated in the product's technical data.
Can I use this connector in a three-phase 400V installation?
The rated voltage is 400V, so the connector is suitable for three-phase circuits as well, respecting the current limit of 24A per pole.

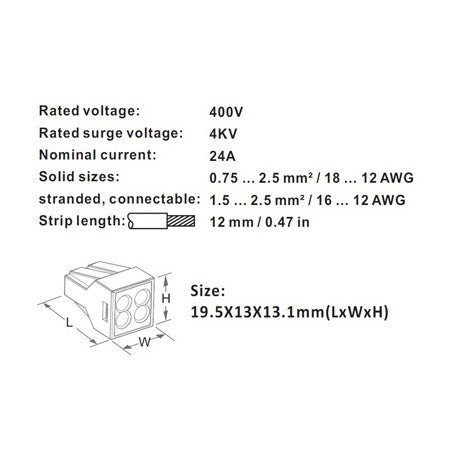

Technical Specifications
| Model | WA-104 |
| Number of poles | 4 |
| Rated voltage | 400V |
| Rated impulse voltage | 4 kV |
| Rated current | 24A |
| Solid conductor cross-section | 0.75–2.5 mm² / 18–12 AWG |
| Stranded conductor cross-section | 1.5–2.5 mm² / 16–12 AWG |
| Stripping length | 12 mm / 0.47 in |
| Dimensions (L x W x H) | 19.5 x 13 x 13.1 mm |
| Housing material | Transparent plastic |
| Connection type | Push-in |
| Package contents | 1 x 4-pole quick junction box connector |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days from the date of receipt, without requiring justification. Delivery is carried out quickly by courier, with shipping confirmation and package tracking possibility.
