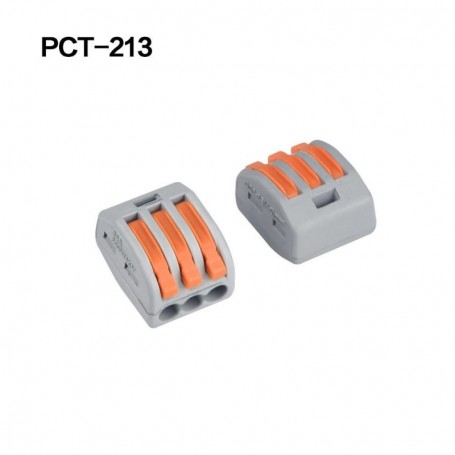

3-Pole Quick Junction Box Connector, ElectroAZ
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
3-pole quick connector for safe electrical installations
The PCT-213 quick junction box connector simplifies electrical installations with its lever-operated clamping system, eliminating the need for a screwdriver and cutting working time in half. Ideal for junction boxes or electrical appliance boxes where space is limited. Connect or disconnect wires instantly, with no risk of pulling out or damaging cables.
What you get with this product
- Fast installation by simply lifting the levers and inserting the cable — no special tools or additional instruments required
- Secure connection for solid and stranded wires between 0.08-4mm², certified for 400V and 32A
- Compact dimensions of 20x16x13mm allow installation in crowded boxes or confined spaces
- Unlimited reconnection without wire degradation — lift the lever, change the cable, reconnect instantly
- CAGE CLAMP technology with uniform clamping along the entire conductor length for constant electrical contact
- Flame-retardant ABS material according to European electrical safety standards
How it works and how to install it

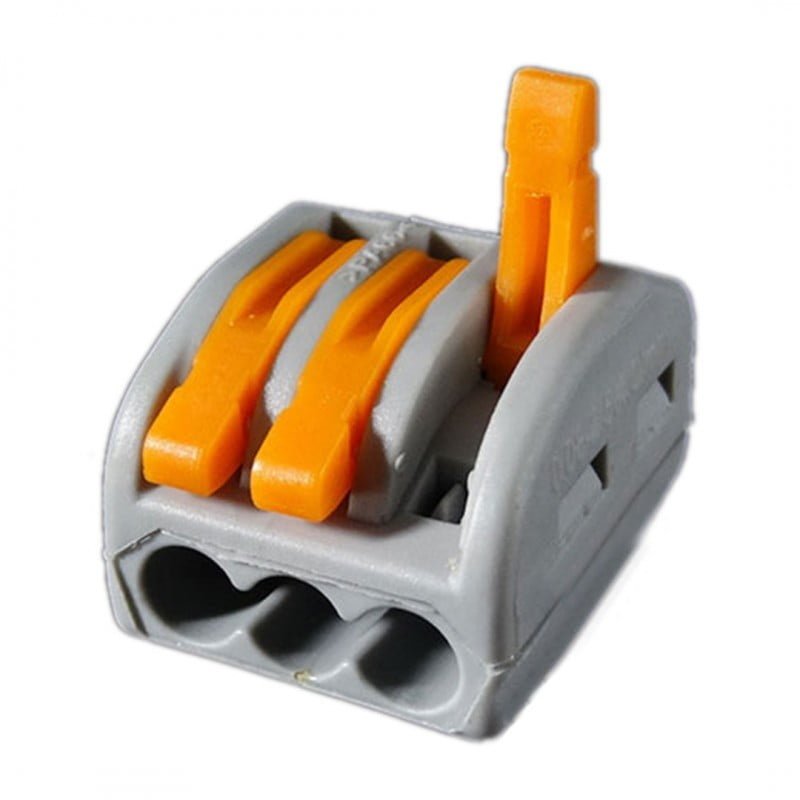

The connection system works with orange levers that release or secure the cables. Lift the lever, insert the stripped conductor 9-10mm all the way in, lower the lever — the connection is complete. To disconnect, lift the lever again and gently pull the cable. No screwdriver tightening is needed, and it does not damage the wire when removed. Compatible with solid copper wires or stranded finely braided wires, including flexible wires with cross-sections of 0.08-2.5mm² at the main input and up to 4mm² at the second input.
Frequently Asked Questions
Can I use the connector for very thin wires or un-tinned multi-stranded wires?
Yes, the connector works with solid and stranded wires with cross-sections starting from 0.08mm² (28 AWG). For multi-stranded wires, use ferrules or crimp terminals.
How much wire insulation should I strip?
Strip 9-10mm of insulation. Insertion must be done all the way in for optimal contact, otherwise the connection remains loose.
Can it be used outdoors or in wet environments?
The connector is designed for installation in standard boxes and does not have IP protection. For outdoor or wet environments, it must be installed in a sealed box with a minimum IP65 protection rating.
Technical specifications

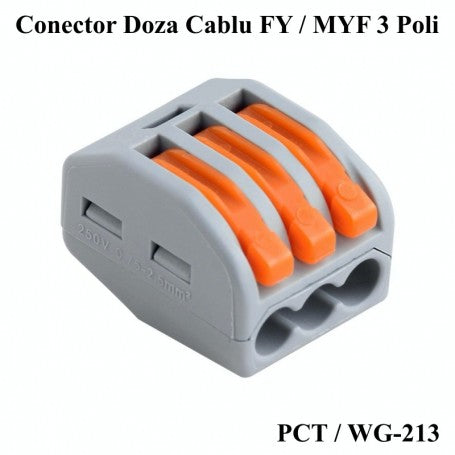

| Model | PCT-213 / WG-213 |
| Number of poles | 3 |
| Rated voltage | 400 V |
| Rated current | 32 A |
| Surge voltage | 4 kV |
| Connection technology | Lever-operated CAGE CLAMP |

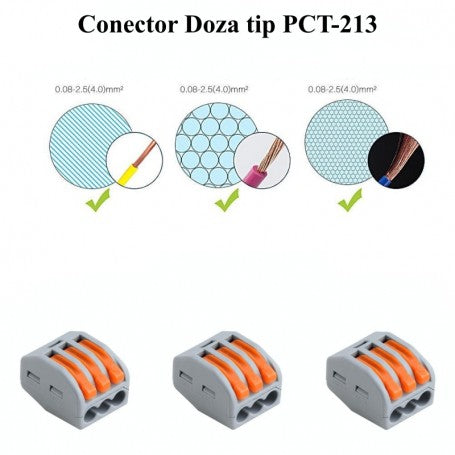

| Accepted conductor types | Solid and fine stranded |
| Main input cross-section | 0.08-2.5 mm² (28-14 AWG) |
| Secondary input cross-section | 0.08-4 mm² (28-12 AWG) |
| Stripping length | 9-10 mm |
| Dimensions | 20 x 16 x 13 mm |
| Weight | 4.2 g |
| Housing material | Flame-retardant ABS |
| EAN | 0704384671251 |
Warranty and Support
The product benefits from a 2-year warranty according to Romanian legislation, covering manufacturing defects. 30-day return policy from order receipt. Fast delivery by partner courier throughout Romania.
