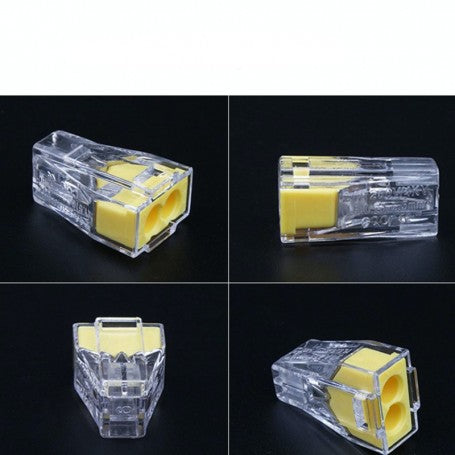

Quick Junction Box Connector 2-Pole
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
2-pole quick connector for safe and fast electrical installations
The WA-102 2-pole quick junction box connector connects solid or stranded electrical wires without soldering or special tools. Ideal for household installations, industrial applications, or connecting light fixtures, this push-in connector ensures a secure connection by simply inserting stripped wires. Save time on installation and eliminate the risk of loose connections.
What you get with this product
- Instant installation without tools — insert the stripped wire and the connection automatically locks in a maximum of 5 seconds
- Universal compatibility with 0.75-2.5mm wires — works with solid or stranded conductors used in 95% of residential installations

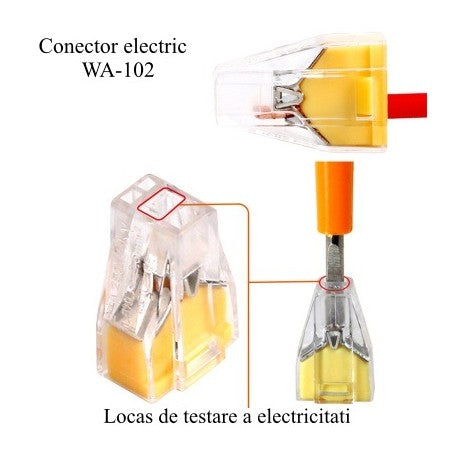

- Verifiable electrical safety — transparent slot for testing with a voltage tester, confirm correct connection before closing the box
- Rated current resistance 24A and voltage 400V — supports intensive loads without overheating
- Rigid transparent housing — clearly see how the wires are secured and quickly identify any issues during troubleshooting
- Reusable — wires are easily unlocked by pressing, you can reconnect cables as many times as needed
How it works and how to install

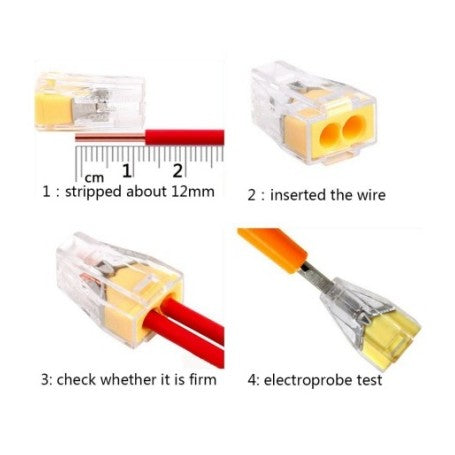

Strip the wire insulation for approximately 12mm according to the marking on the connector. Insert the conductor into the corresponding hole until you feel resistance — the internal spring mechanism automatically locks the wire. Check the connection by gently pulling the cable and test with a voltage tester through the transparent slot. To disconnect, press the orange release area and pull out the wire. Installing a connector takes less than 30 seconds, without the need for special tools or advanced electrical knowledge.
Frequently asked questions
Can I use the connector for wires of different thicknesses in the same connection?
Yes, the connector accepts wires between 0.75-2.5mm in both poles, allowing the connection of two conductors of different cross-sections within this range.
How do I know that the wire is correctly connected and will not come out of the connector?
After insertion, gently pull the cable — if it doesn't come out, the connection is secure. You can visually check through the transparent housing and electrically test through the slot provided for the voltage tester.
Can it be used in humid environments or in wall-mounted junction boxes?
The connector is designed for use in standard electrical junction boxes, protected by a cover. For humid or outdoor environments, it is recommended to use junction boxes with an appropriate IP rating.

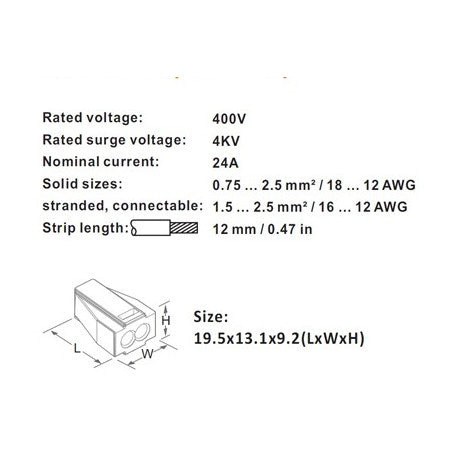

Technical specifications
| Model | WA-102 (773-102) |
| Number of poles | 2 |
| Maximum voltage | 400V |
| Rated insulation voltage | 4KV |
| Rated current | 24A |
| Accepted conductor cross-section | 0.75-2.5mm (solid or stranded) |
| Recommended stripping length | 12mm |
| Housing material | Durable transparent plastic |
| Connection type | Push-in with locking spring |
| Package contents | 1 x 2-pole connector |
Warranty and support
The product benefits from a 2-year warranty according to Romanian law. You have the right to return the product within 30 days of delivery. Your order is shipped quickly via national courier with SMS confirmation and delivery to your address.
