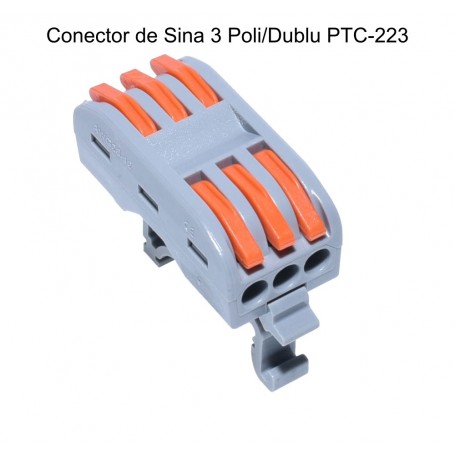

3-Pole/Double Rail Connector PCT-223
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
3-pole double rail connector for safe electrical installations
The PCT-223 3-pole double connector simplifies cable connection in the electrical panel, without soldering or special tools. Ideal for domestic and industrial installations, it ensures stable connections at currents up to 32A and mounts directly on standard DIN rails.
What you get with this product
- Fast connection without special tools — press the orange lever, insert the cable, release the lever and the connection is made in 3 seconds
- Increased safety with flame-retardant ABS material and silver-plated brass contacts that resist corrosion and overheating
- Total flexibility for cables between 0.2-4mm, compatible with rigid or stranded wires, without crimping or soldering
- Modular DIN rail mounting — you can align multiple connectors side by side to create custom terminal blocks
- Quick voltage check through the integrated test slot, without disassembly or circuit interruption
- Resistance to 600V and 32A for professional applications in automation panels, LED lighting systems or electrical distribution
How it works and how to install it
The connector is fixed to the DIN rail by the integrated clip on the back — a simple click and it stays locked. For connection, press the orange lever with your finger, insert the stripped cable into the corresponding hole, then release the lever. The pressure exerted by the mechanism holds the cable firmly and ensures permanent electrical contact. The 3+3 pole double configuration allows two separate circuits to be connected to the same connector, saving space in the panel.
Frequently Asked Questions
Can I use this connector for flexible MYYM cables?
Yes, it is compatible with both rigid wires and flexible stranded wires (MIF/FY) in the 0.2-4mm range, without specialized terminals.
Can the cable be disconnected without cutting it?
Absolutely, press the orange lever again and the cable is released immediately, and can be reconnected as many times as needed.
How many amps can it continuously support without risk of overheating?
The connector is rated for 32A continuous at 600V, with silver-plated brass contacts that efficiently dissipate heat.
Technical Specifications
| Model | PCT-223 |
| Configuration | 3-pole double (3+3) |
| Maximum voltage | 600V |
| Maximum current | 32A |
| Cable cross-section | 0.2 - 4 mm² |
| Compatible cable type | MIF/FY (rigid or stranded) |
| Housing material | Flame-retardant ABS |
| Contact material | Silver-plated brass |
| Mounting | DIN rail 35mm |
| EAN | 0781499707266 |
Warranty and support
The product benefits from a 24-month warranty according to current legislation and a 30-day return policy. Fast courier delivery throughout Romania.
