SAE Connector with Socket for Solar Panel or Car Batteries, 12AWG Thickness, 30 cm
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

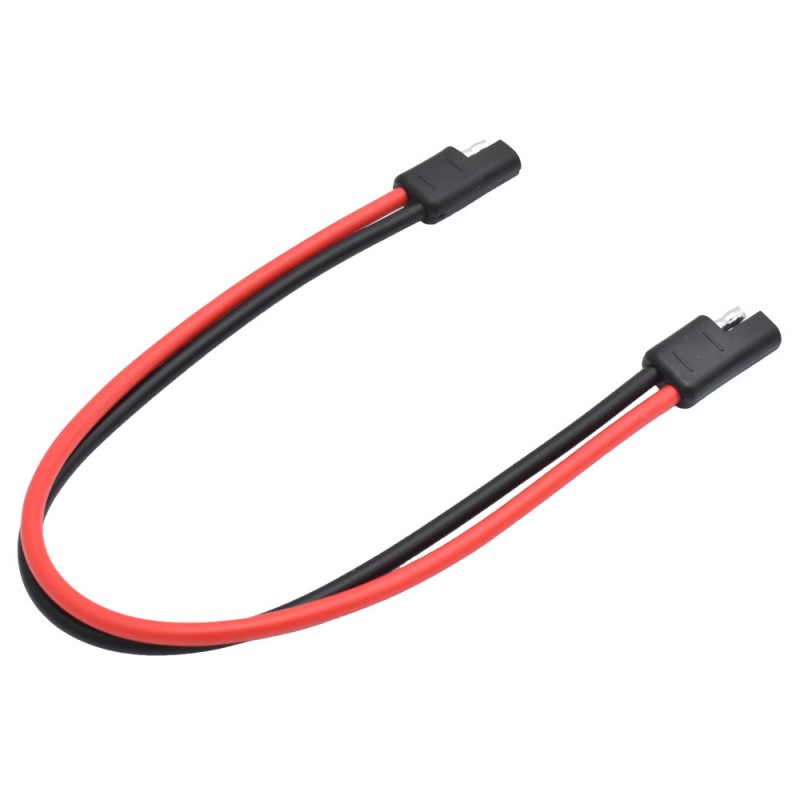

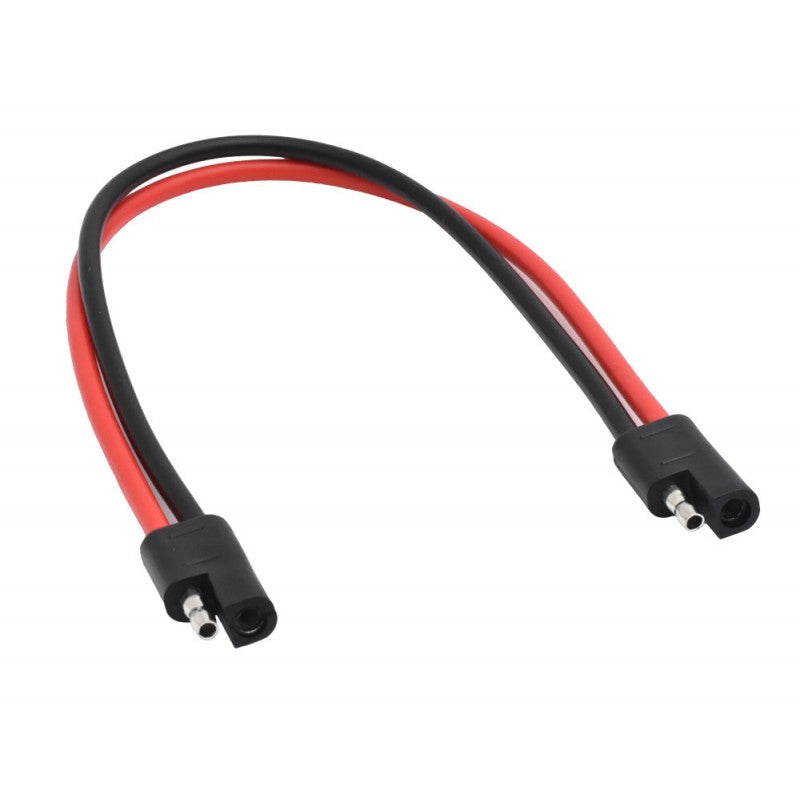

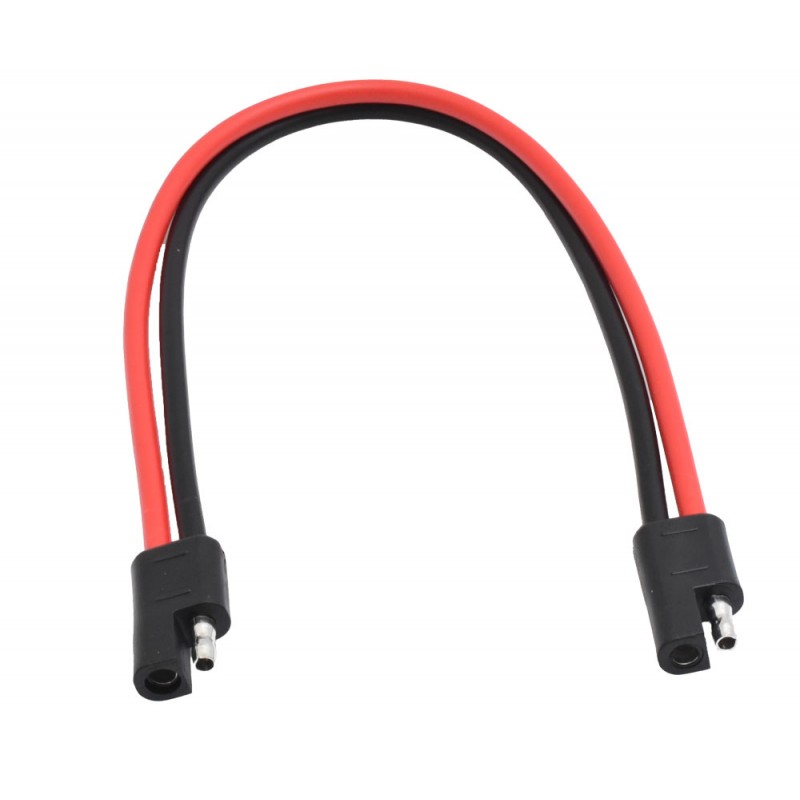

12AWG SAE Connector for Solar Panel and Batteries
The 12AWG SAE plug connector provides a secure and stable electrical connection between photovoltaic solar panels, car batteries, or other DC equipment. With a length of 30 cm and quality copper conductors, it is frequently chosen for off-grid installations, portable solar systems, and automotive applications. The robust double-layer PVC construction ensures long-term reliability even in high-temperature conditions.
What you get with this product
- Quick connection without specialized tools — the 2-pin SAE plug connects and disconnects in seconds, with no risk of polarity reversal
- Compatible with a wide range of equipment — works with photovoltaic solar panels, car batteries, solar chargers, inverters, LED light bars, electric winches, and marine radios
- High-purity copper conductor — ensures minimal energy loss and efficient current transfer on the 12AWG section
- Heat resistance up to 108°C — suitable for motorcycles, ATVs, and installations exposed to high temperatures
- Double-layer PVC insulation — protects the conductor against abrasion, moisture, and mechanical vibrations
- 30 cm length useful in compact installations — offers positioning flexibility without excess messy cable
How it works and how to install it
The 12AWG SAE connector is used by simply plugging the two ends into the corresponding SAE receptacles of the equipment — no tools, soldering, or advanced electrical knowledge are required. The cable colors (red for positive, black for negative) allow for immediate polarity identification, eliminating the risk of incorrect connection. In solar or automotive installations, it is simply inserted between the power source and the consumer or between two modules with compatible SAE plugs.
Frequently Asked Questions
Is this SAE connector compatible with standard solar panels on the market?
Yes, the 2-pin SAE plug is a widely used standard by most manufacturers of portable solar panels, solar chargers, and car battery accessories.
What is the maximum current supported by a 12AWG cable with an SAE plug?
A 12AWG copper conductor typically supports up to 20A in direct current, making it suitable for most common solar and automotive applications.
Can it be used outdoors or on a motorcycle where it is exposed to vibrations and heat?
Yes, the double-layer PVC insulation and temperature resistance up to 108°C make it suitable for use in harsh environments, including motorcycle and ATV mounting or in semi-exposed installations.
Technical Specifications
| Connector type | 2-pin SAE |
| Cable gauge | 12AWG |
| Cable length | 30 cm |
| Conductor material | Copper |
| Outer insulation | Double-layer PVC |
| Temperature resistance | up to 108°C |
| Conductor colors | Red (positive), Black (negative) |
| Applications | Solar panels, car batteries, inverters, LED light bars, ATV, motorcycle, marine radio |
| Package contents | 1 x 12AWG SAE plug connector, 30 cm |
| SKU | Q-12C040 |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of receipt, no justification required. Delivery is fast via courier, with shipping confirmation and tracking included.
