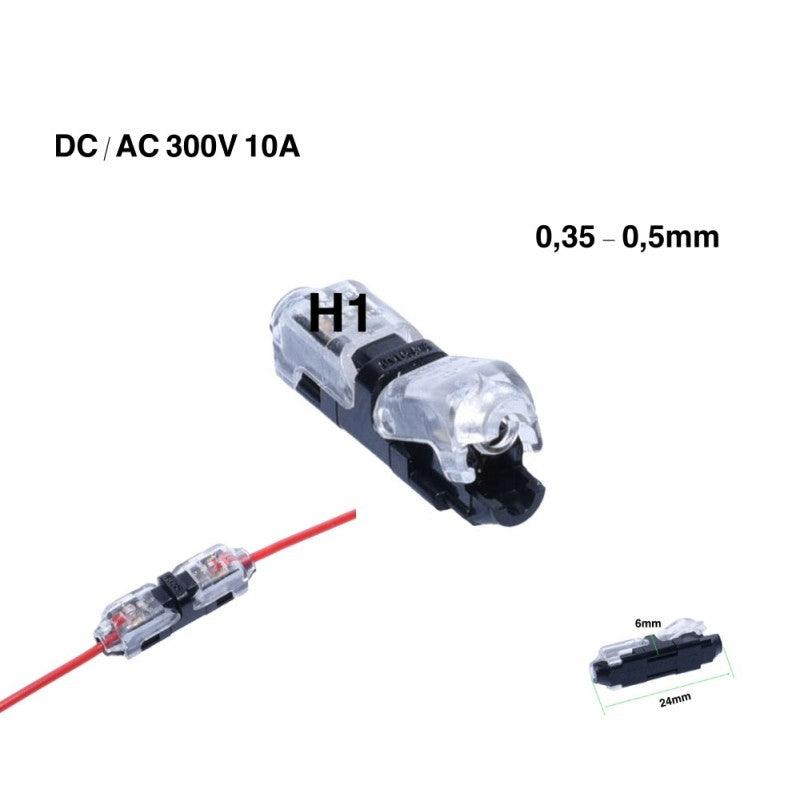

H1 Cable Connector with Lock 300V-10A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
H1 Cable Connector with Lock for 0.35-0.5mm Cables
This H1 quick connector ensures secure and durable connections for 0.35mm and 0.5mm stranded wires, without soldering or special tools. Features a mechanical locking design and a transparent cover for visual contact inspection. Ideal for LED installations, electrical panels, and wiring extensions in residential or commercial applications.
What you get with this product
- Fast, solderless installation — insert wires, press the cover, and the connection is made in under 10 seconds
- Secure mechanical lock — the ratchet system prevents accidental disconnection even with vibrations
- Instant visual inspection — transparent cover for quality control of the contact without disassembly
- Solid copper contacts — minimal resistance and zero overheating up to 10A
- IP40 flame retardant protection — certified plastic material for safety in indoor environments
- Compact dimensions 24x6mm — suitable for narrow junction boxes and tight spaces
How it works and how to install

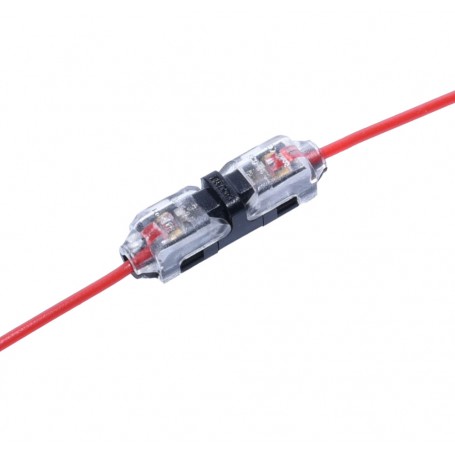

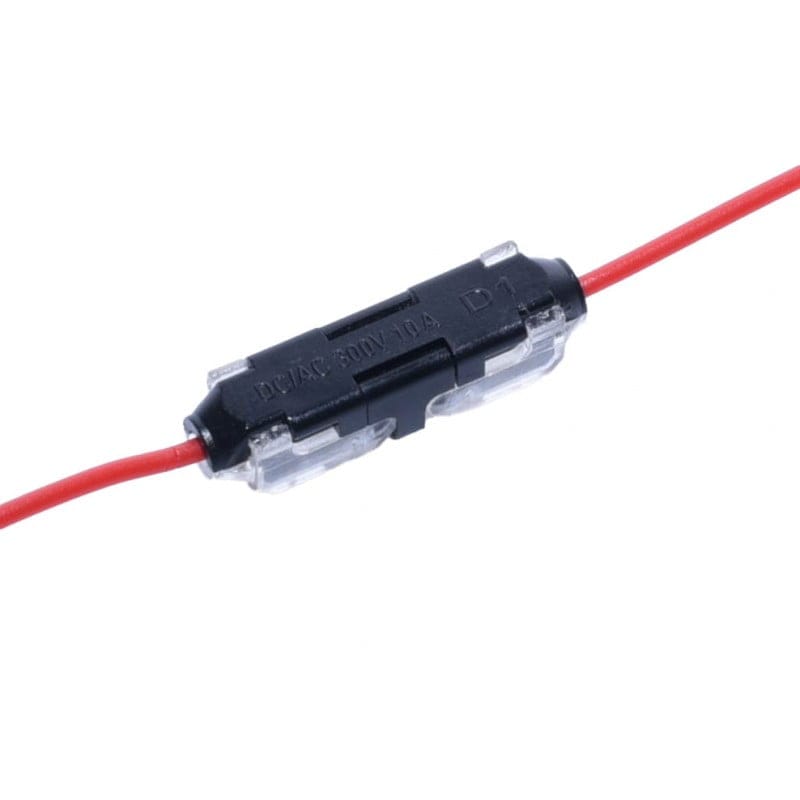

The H1 connector uses a push-lock mechanism that automatically secures stranded wires into the copper contacts. Strip 5-6mm of insulation from the ends of the wires, insert the two opposing wires into the side channels, then press the transparent cover until it clicks. No clamps or screwing required — ideal for quick serial assembly. Works only with 0.35mm or 0.5mm stranded wires.
Frequently asked questions
Can I use this connector for solid wires or thicker wires?
No, the H1 connector is designed strictly for 0.35-0.5mm stranded wires. Thicker or solid wires will not be properly secured and may cause poor contact.
Is it suitable for outdoor installations or wet areas?
Its IP40 protection class makes it suitable only for dry indoor use. For outdoor use, connectors with IP65 or higher are required.
Can I undo and reuse the connector if the joint is wrong?
Yes, the cover can be opened by gently pressing on the side, but the connector is optimized for single use — repeated reuse weakens the lock.
Technical specifications
| Model | H1 with lock |
| Maximum voltage | 300V DC/AC |
| Maximum current | 10A |
| Compatible cable section | 0.35mm - 0.5mm (stranded wires) |

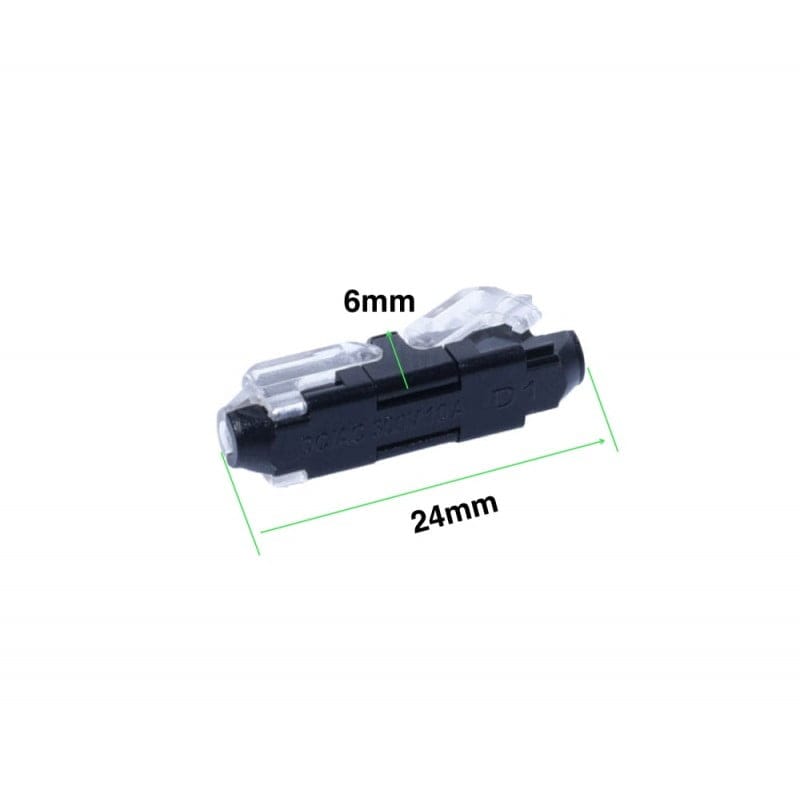

| Dimensions | 24mm x 6mm x 6mm |
| Operating temperature | -35°C / +80°C |
| Protection class | IP40 |
| Contact material | Copper |
| Housing material | Transparent/black flame retardant plastic |
| Package contents | 1 x H1 Connector |
Warranty and support
The product benefits from a 2-year warranty in accordance with current European legislation. Right of return within 30 days of receiving the order. Fast delivery by national courier in 1-3 working days.
