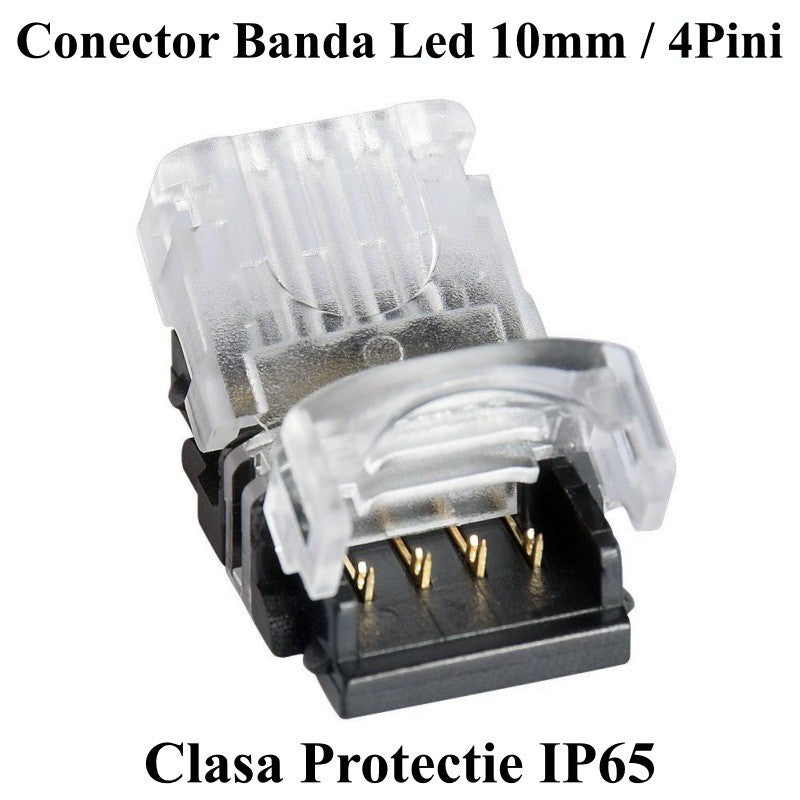

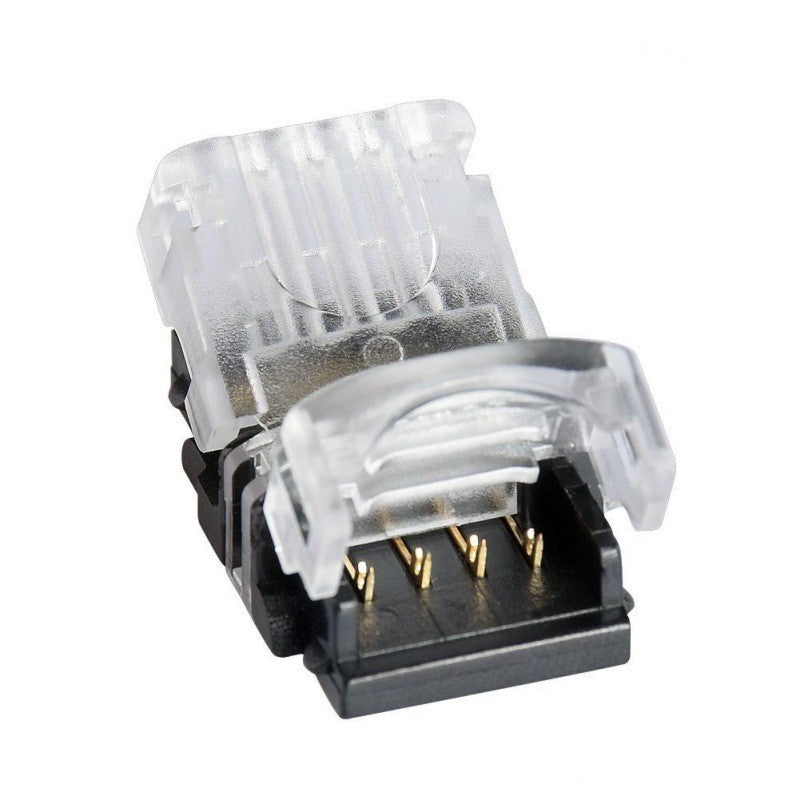

10mm LED Strip Connector, 4-Pin, 4-Wire
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
RGB LED Strip Connector 10mm Solderless, IP65
The 10mm 4-pin LED strip connector allows joining or extending RGB strips without soldering and without special tools. Suitable for 10mm wide, 4-wire (RGB) strips, it is used in decorative lighting installations at home, in restaurants, clubs, or commercial spaces. Its IP65 protection rating also makes it compatible with applications where there is exposure to moisture.
What you get with this product
- Quick clip-on connection, no soldering required — the LED strip connects in seconds, without a soldering iron or advanced technical knowledge
- Compatible with standard 10mm RGB strips — works with 4-pin SMD 5050, 3528, 2835, 5730 types
- IP65 protection — splash-resistant, suitable for high-humidity areas or semi-outdoor installation
- Secure contact via gold-plated pins — stable electrical conduction reduces the risk of interruptions or sparks over time
- Compact dimensions — does not take up additional space and remains discreet after installation
- Reusable — the clip-on casing can be opened and the strip repositioned without damaging the contacts
How it works and how to install

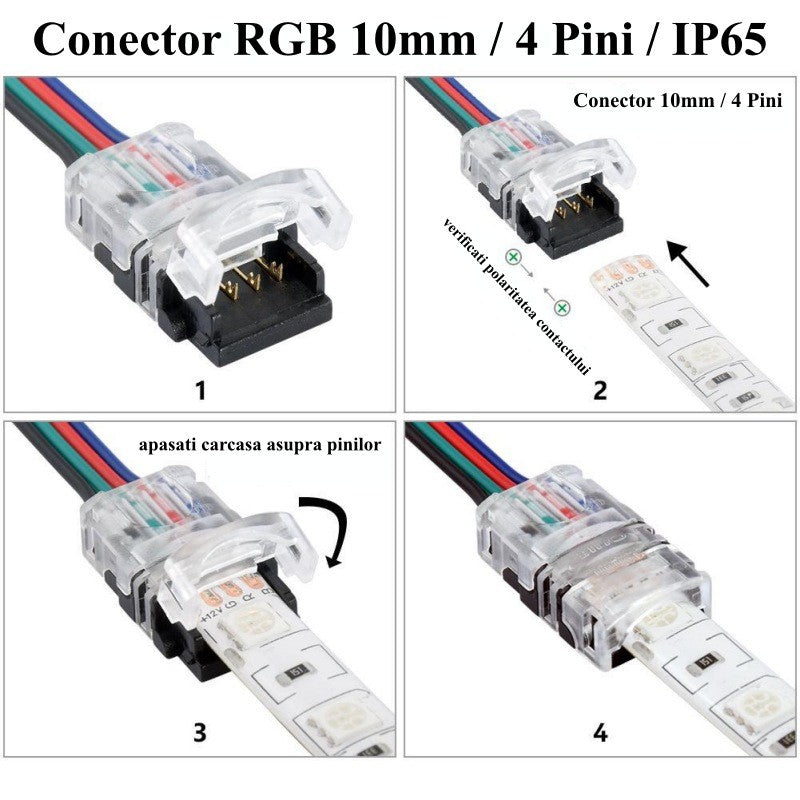

The 10mm LED strip connector is used in four simple steps: open the transparent casing, insert the end of the LED strip into the 10mm slot checking the polarity of the contacts, press the casing over the pins until it clips, and the connection is ready. No tools, soldering, or electrical knowledge are required. The 4 gold-plated pins easily pierce the protective layer of the strip and establish contact with the 4 RGB wires.
Frequently Asked Questions
Does this connector work with common 10mm RGB LED strips?
Yes, it is compatible with 10mm wide, 4-pin RGB strips, including SMD 5050, 3528, 2835, and 5730 types.
Can I use this connector in the bathroom or outdoors?
Yes, the IP65 protection class allows use in humid environments or exposure to splashing, but it is not intended for immersion in water.
Do I need to strip the LED strip before using the connector?
No stripping is required. The connector is applied directly to the strip, including portions already installed, if there is physical access to the strip end.
Technical specifications
| Model | CBL-10404 |
| SKU | Q-18E004 |
| Number of pins | 4 pins |
| Number of wires | 4 wires |
| Compatible LED strip width | 10 mm |
| Compatible strip type | RGB — SMD 5050, 3528, 2835, 5730 |
| Protection class | IP65 |
| Connector dimensions | 14 x 10 x 7 mm |
| Casing material | Transparent plastic + black body |
| Connection type | Clip (solderless) |
| Package contents | 1 x 10mm LED strip connector, 4 pins, 4 wires |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, without the need for justification. Delivery is carried out quickly by courier, with shipping confirmation.
