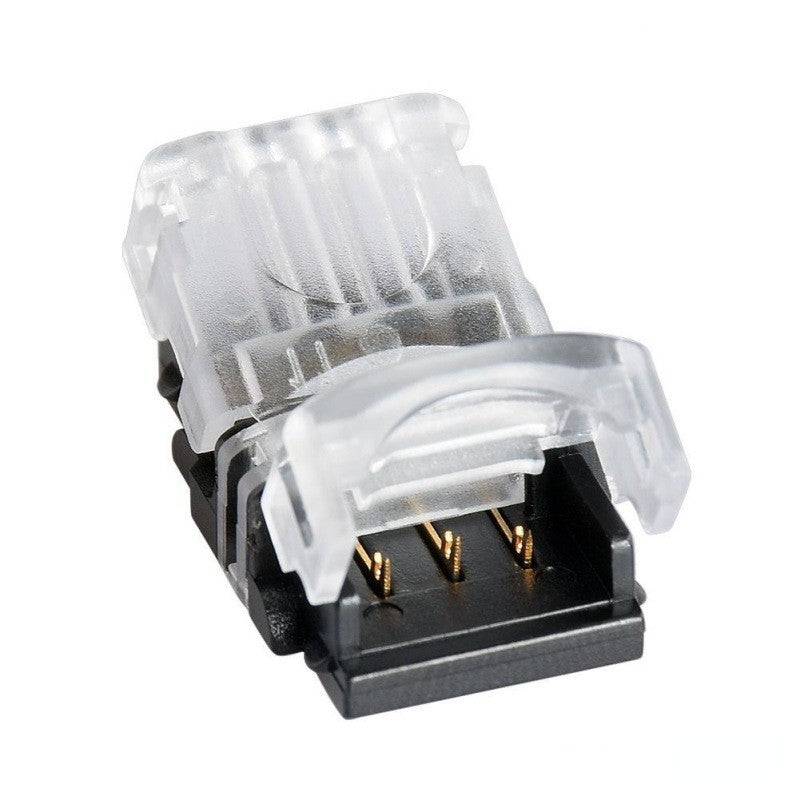

LED Strip Connector 10mm, 3-Pin, 3-Wire
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

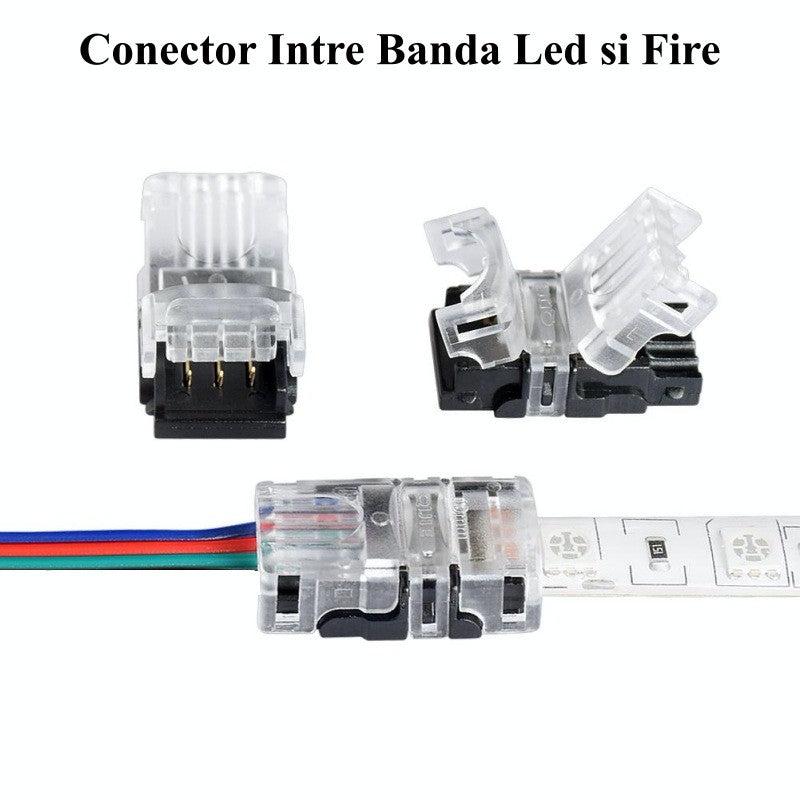

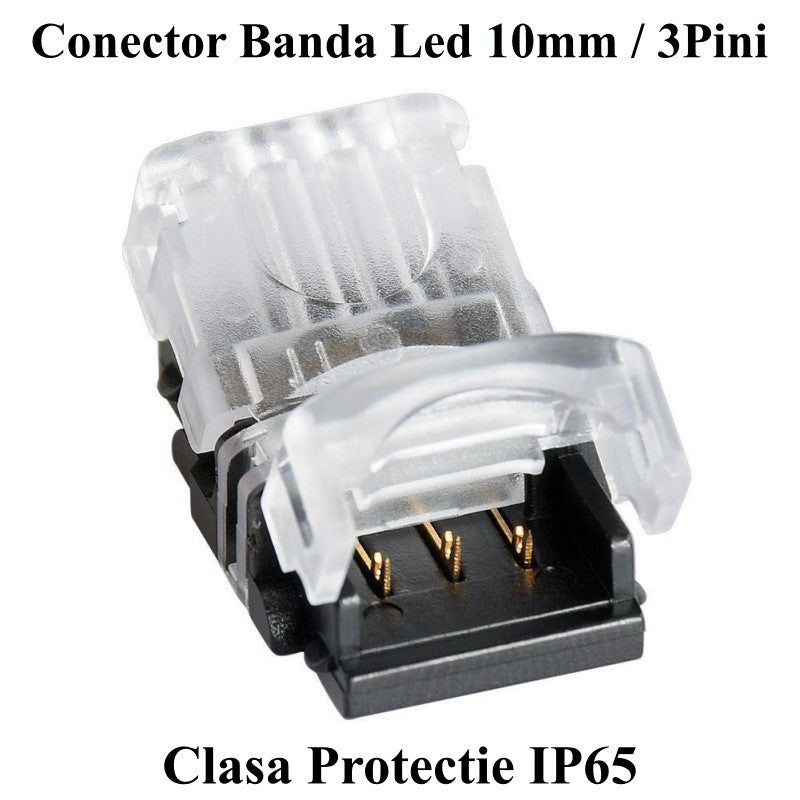

10mm Solderless IP65 LED Strip Connector
The 10mm 3-pin, 3-wire LED strip connector eliminates the need for soldering and special tools, allowing for quick connection of LED strips to a power source. It is compatible with 10mm wide LED strips and has an IP65 protection rating, making it suitable for both indoor use and high-humidity environments. The clip-type fastening mechanism ensures secure and stable electrical contact for the long term.
What you get with this product
- Solderless connection — the LED strip is secured directly into the connector by simply pressing the clip, no tools required
- IP65 protection — resistant to dust and water splashes, usable in high-humidity areas
- Secure electrical contact — gold-plated pins ensure good conductivity and oxidation resistance over time
- Compatible with 10mm 3-conductor LED strips, including RGB strips with common anode or CCT strips
- Compact dimensions — discreetly integrates into any installation, without taking up additional space
- Reusable — the transparent clip can be opened and the strip removed without damaging the connector or the strip
How it works and how to install
The connector operates on the principle of mechanical pressure contact: you open the transparent cover, insert the end of the 10mm LED strip into the marked slot, align the 3 pins with the contact pads of the strip, then close the cover until you hear a click. The 3 wires of the power or extension cable are inserted into the other side of the connector, after which the clamps are tightened. The entire operation takes less than a minute and requires no advanced technical knowledge.
Frequently Asked Questions
Is it compatible with 10mm RGB LED strips?
The 3-pin connector is not compatible with standard RGB strips that require 4 pins. It is intended for 3-conductor strips, such as CCT (tunable white) strips or single-color channel 10mm strips.
Can I use this connector outdoors or in the bathroom?
Yes, the IP65 protection class allows use in environments exposed to water splashes and dust, but it is not recommended for complete immersion in water.
Can I reconnect the strip if I positioned it incorrectly?
Yes, the connector is reusable — the transparent cover can be opened, and the strip can be re-extracted and reinserted correctly without damaging the components.
Technical Specifications
| Model | CBL-10303 |
| SKU | Q-18E003 |
| Number of pins | 3 pins |
| Number of wires | 3 wires |
| Compatible LED strip width | 10 mm |
| Connector dimensions | 14 x 10 x 7 mm |
| Protection class | IP65 |
| Material | Transparent / black plastic, gold-plated contacts |
| Connection type | Clip, solderless |
| Package contents | 1 x 10mm 3-pin LED strip connector |
