LED Strip Connector 10mm, 2 Pin, 2 Wire
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

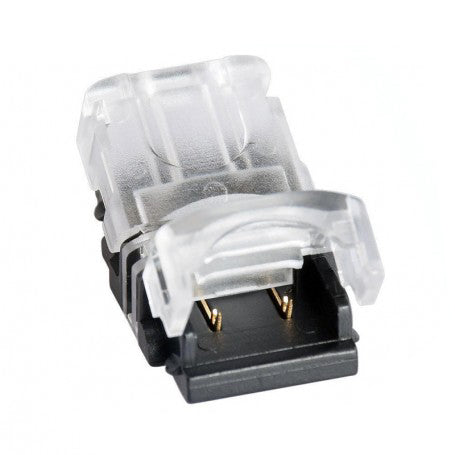

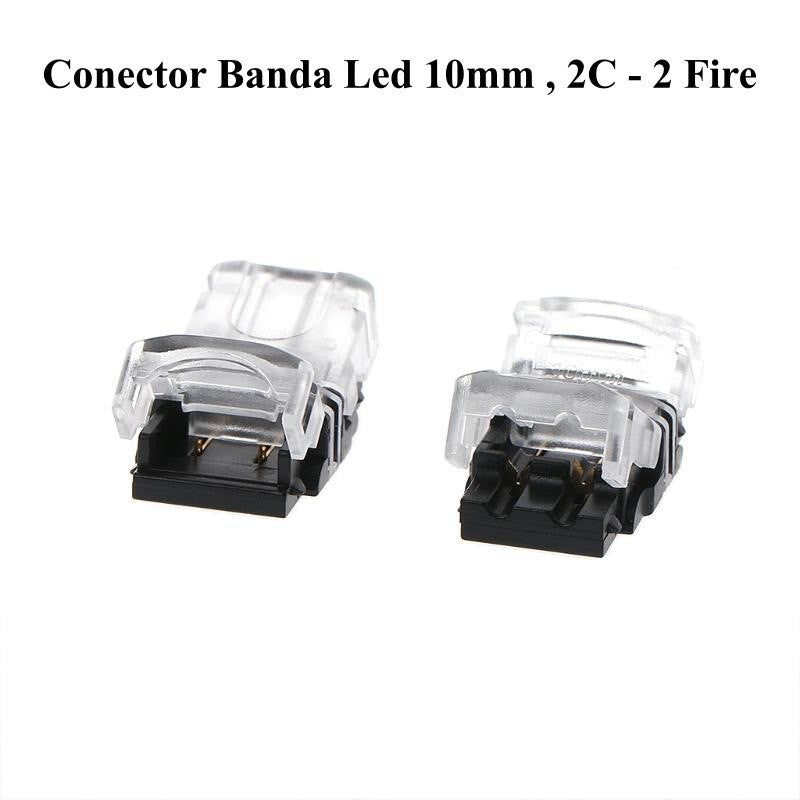

10mm Solderless 2-Pin LED Strip Connector
The 10mm 2-pin LED strip connector eliminates the need for soldering when joining a monochromatic LED strip to a power source or another strip segment. The clip system ensures stable and fast electrical contact, suitable for both home installations and commercial spaces. With an IP65 protection rating, the connector operates safely even in environments with moderate humidity.
What you get with this product
- Fast connection without soldering or special tools — the LED strip is secured in the connector by simply pressing the clip
- Compatible with 10mm wide, 2-conductor LED strips, the most common monochromatic strips on the market
- IP65 protection rating — splash-proof, usable in kitchens, bathrooms, or semi-exposed areas
- Gold-plated contacts on the 2 pins — better electrical conductivity and increased resistance to oxidation over time
- Compact dimensions (14 x 10 x 7 mm) — discreetly integrates into any installation, including narrow LED profiles

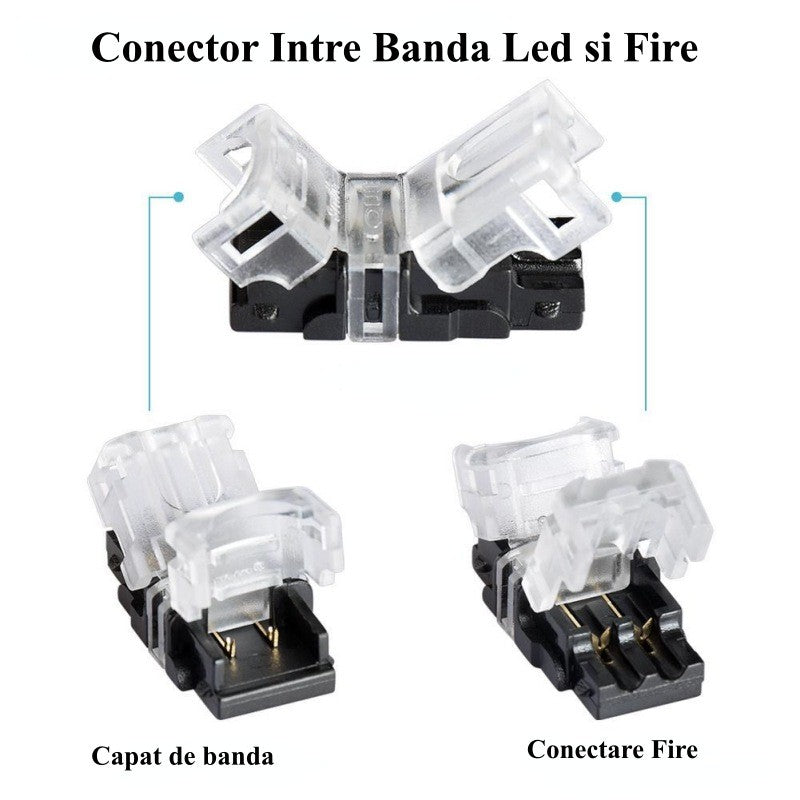

- Allows connecting the strip end to bare wires, simplifying the connection to the power source
How it works and how to install it
The 10mm LED strip connector works on the principle of a clip with gold-plated pins: lift the transparent cover, insert the end of the LED strip (with the copper pads facing the pins), then firmly press the cover until you hear a locking click. On the opposite side, insert the power wires, which are secured in turn by the same mechanism. The entire operation takes less than a minute and requires no soldering iron, solder gun, or advanced electrical knowledge.
Frequently asked questions
Is it compatible with any 10mm LED strip?
The connector is designed for monochromatic LED strips with a width of 10mm and 2 conductors (positive and negative). It is not compatible with RGB, RGBW, or strips of other widths.
Can I use this connector in the bathroom or outdoors?
Yes, the IP65 protection rating allows use in humid areas or those exposed to splashing. However, it is not recommended for immersion in water or direct exposure to heavy rain.
How secure is the connection compared to soldering?
The gold-plated pins ensure firm and stable electrical contact for fixed installations. For applications with strong vibrations or very high currents, soldering remains the more robust option, but for standard use, the clip connector offers reliable long-term results.
Technical specifications
| SKU | Q-18E001 |
| Model | CBL-10202 |
| Connector type | LED strip to wire |
| Number of pins | 2 pins (2 wires) |
| Compatible strip width | 10 mm |
| Connector dimensions | 14 x 10 x 7 mm |

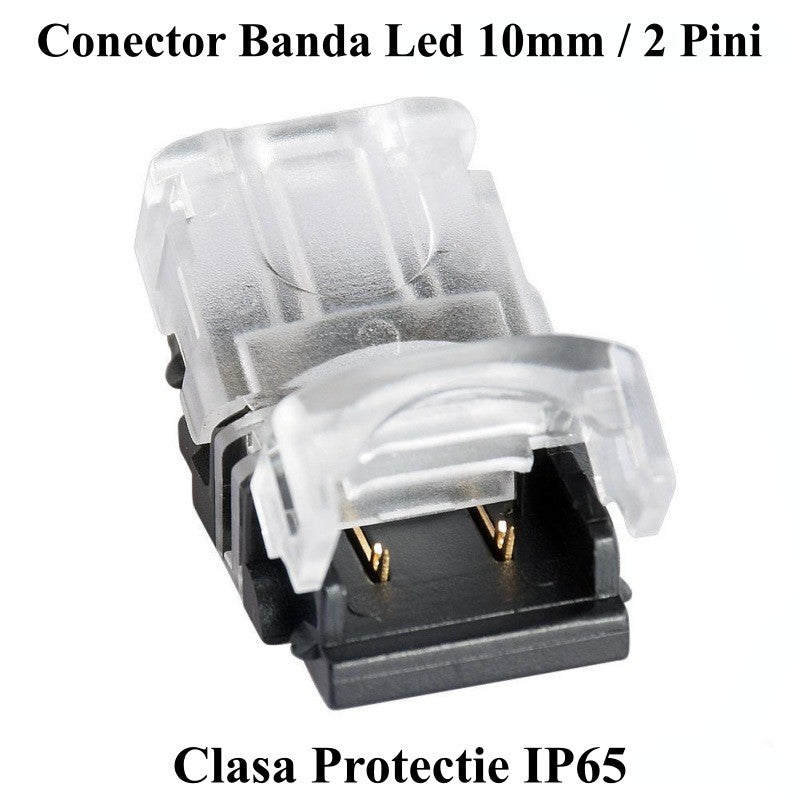

| Protection class | IP65 |
| Housing material | Transparent / black plastic |
| Contact type | Gold-plated pins |
| Package contents | 1 x 10mm LED strip connector, 2 pins |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, without the need for justification. Delivery is fast via courier, with dispatch confirmation and parcel tracking available.
