RGB LED Strip 4-Pin Power Connector
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

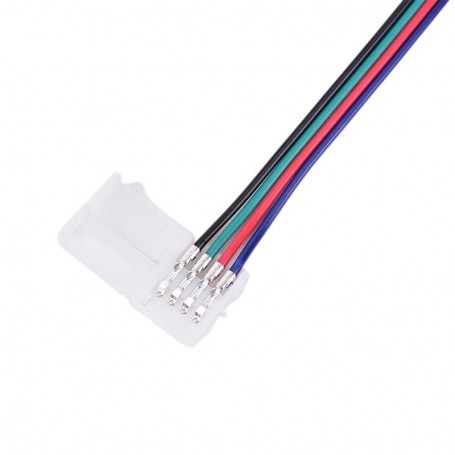

RGB LED Strip Quick Connector, Solderless, 4 Wires
The 4-wire RGB LED strip power connector eliminates the need for soldering and significantly simplifies the installation of 10mm 5050 RGB LED strips. Suitable for both residential and commercial spaces such as restaurants, clubs, or event halls, this accessory ensures a secure and stable connection between the LED strip and the power supply. The durable plastic construction and metal contacts guarantee long-lasting use.
What you get with this product
- Quick solderless connection — the RGB strip connects in seconds, without special tools or advanced technical knowledge
- Compatible with 10mm 5050 RGB strips — fits directly on the standard width of the most commonly used RGB strips
- 4 pins and 4 wires dedicated to RGB channels and ground — correct signal transmitted on each color channel without interference

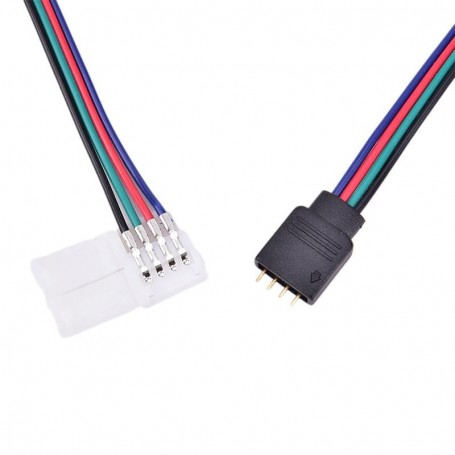

- Male pin connector included — allows direct connection to standard RGB controllers or amplifiers
- Durable materials for repeated use — plastic clasp and metal contacts maintain a firm connection over time
- Compact dimensions — the 16mm connector length does not add bulk to the installation and allows mounting in narrow spaces
How it works and how to install it

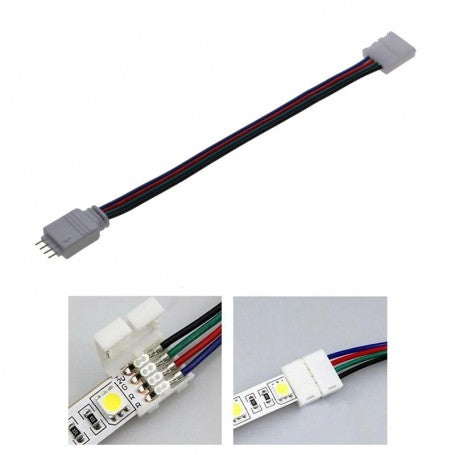

The connector works with a clamp mechanism: open the transparent cover, insert the end of the 10mm RGB strip with the pads aligned to the 4 pins, then close the clamp to secure the contact. The other end of the cable is equipped with a standard 4-pin male connector, which plugs directly into the RGB controller or compatible power supply. The entire operation takes less than a minute and requires no tools.
Frequently Asked Questions
Does this connector work with any 10mm RGB strip?
Yes, the connector is compatible with 10mm wide, 4-pin RGB SMD 5050 strips, which is the most widespread standard on the market.
Do I need soldering or special tools for assembly?
No soldering is required. The connector is mechanically secured by the included clamp, without tools, in less than a minute.
Can it also be used to connect two pieces of RGB strip together?
This model has one end with a strip clamp and one end with a male pin connector, so it is intended for connecting the strip to a controller or power source. For connecting two strips together, a strip-to-strip connector with two clamps is recommended.
Technical specifications
| SKU | Q-18E010 |
| Model | CON-RGB-AL4 |
| Type | LED RGB strip power connector |
| Number of contacts | 4 pins / 4 wires |
| Compatible strip width | 10 mm |
| Clamp connector length | 16 mm |
| Strip compatibility | RGB SMD 5050, 10mm, 4 pins |
| Material | Plastic, metal |
| Package contents | 1 x 4-wire RGB strip power connector |
| Brand | OEM |
Warranty and support
The product benefits from a 2-year warranty according to Romanian legislation. We accept returns within 30 days of receiving the order, no justification required. Delivery is fast by courier, with shipping confirmation and tracking capability.
