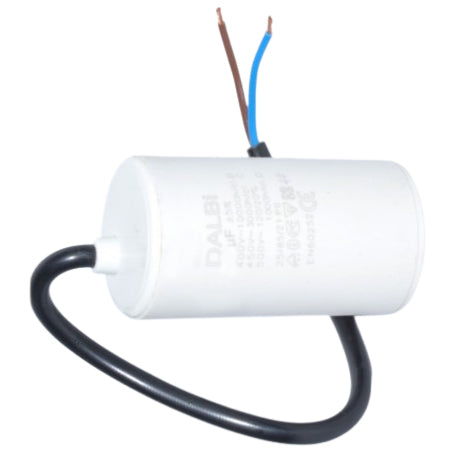

Starting Capacitor with Wires 20uF-450V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

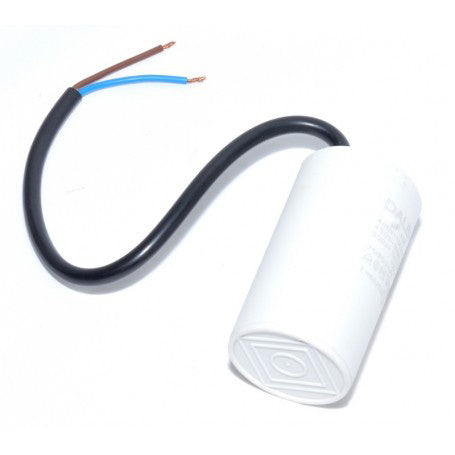

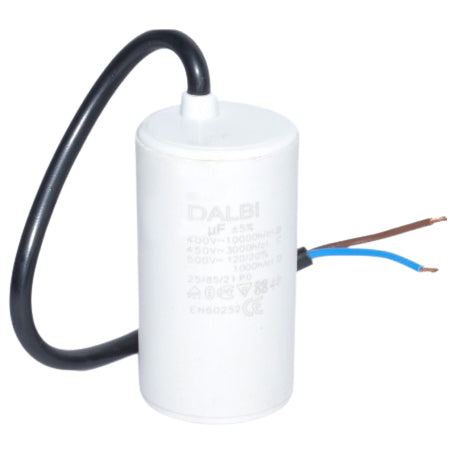

Motor Start Capacitor 20uF 450V with Wires for Universal Installation
This start capacitor with 20uF capacitance and 450V voltage ensures optimal operation of electric motors in household and industrial equipment. Compatible with air conditioners, compressors, water pumps, and various electric motors, the capacitor provides the necessary technical solution for fast and reliable motor starting. The two-wire connection simplifies installation and replacement in any application.
What you get with this product
- Fast starting of electric motors — eliminates delays and starting problems
- Universal compatibility with household and industrial equipment — from air conditioners to water pumps
- Durable plastic casing — protects the capacitor against environmental factors and mechanical shocks
- Simplified two-wire connection — direct installation without additional accessories
- Low tolerance of only 5% — stable performance and long service life
- ISO 9001:2008 certification — verified quality for professional and household applications
How it works and how to install it
The CBB60 capacitor provides the initial impulse required to start single-phase electric motors. The two wires connect directly to the motor terminals according to the specific electrical diagram of your equipment. Installation does not require complex tools — simply disconnect from the power source, replace the old capacitor with the new one, and reconnect the wires. The entire operation takes less than 15 minutes for those with minimal electrical experience.
Frequently Asked Questions
Can I use this capacitor for my home air conditioner?
Yes, the capacitor is compatible with most household air conditioning systems that require 20uF capacitance and 450V voltage. Check your motor specifications before installation.
Is it dangerous to replace it myself?
Always disconnect the power supply before any intervention and discharge the old capacitor. If you do not have experience working with electricity, it is recommended to contact a qualified technician.
How long does a start capacitor last?
The lifespan depends on the usage conditions: at 400V you get approximately 10,000 hours, at 450V approximately 3,000 hours according to Class C classification, and at 500V approximately 1,000 hours.
Technical specifications
| Model | CBB60-20F |
| Capacitance | 20uF |
| Rated Voltage | 450V AC |
| Tolerance | ±5% |
| Frequency | 50-60Hz |
| Contact type | 2 wires |
| Operating temperature | -40°C ~ +85°C |
| Dissipation factor | ≤0.002 (1KHz, 20°C) |
| Insulation resistance | ≥3000S |
| Voltage resistance terminal-to-terminal | 2 x Rated Voltage |
| Voltage resistance terminal-to-case | Minimum 2000V AC for 1 min |
| Case material | Plastic |
| Shape | Cylinder |
| Dielectric | Self-healing polypropylene SH |
| Flammability class | UL 94 V-2, 750°C RTI |
| Quality system | ISO 9001:2008 |
| EAN | 0781499719450 |
Warranty and Support
You benefit from a 24-month warranty in accordance with Romanian legislation for manufacturing defects. The 30-day return policy allows you to
