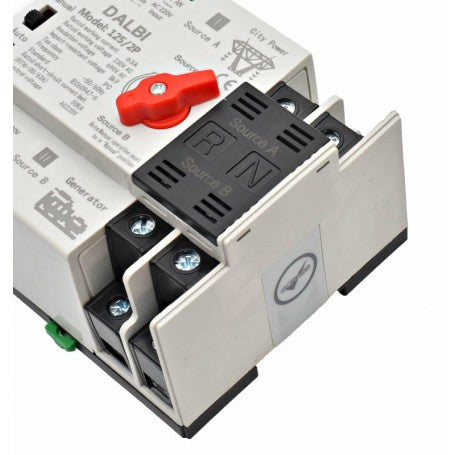

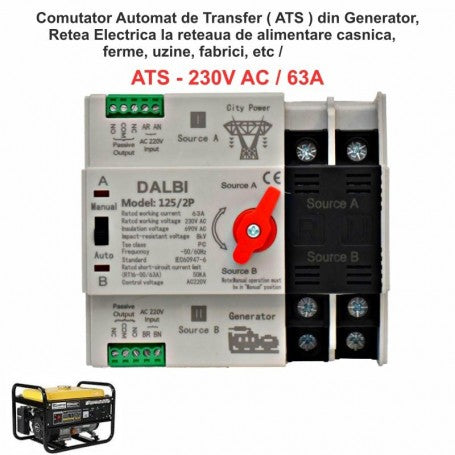

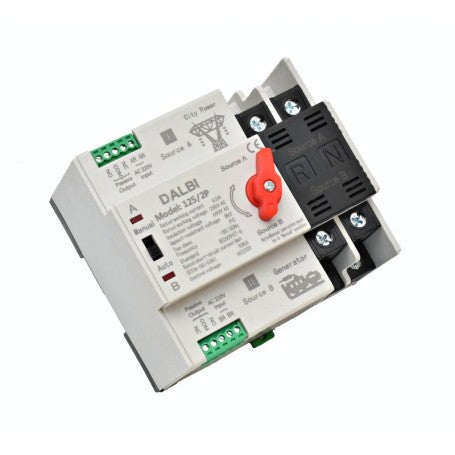

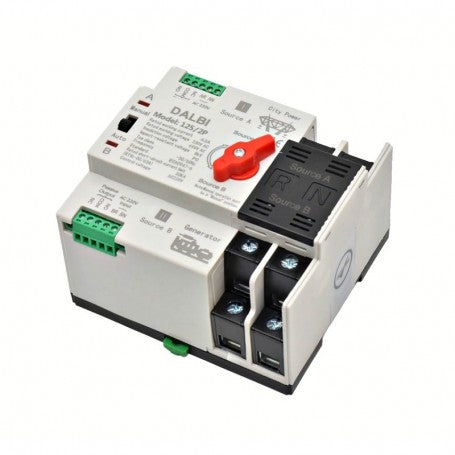

Automatic Transfer Switch Generator / Mains - ATS 2P - 230V AC / 63A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
63A ATS Switch for Generator and Mains Power
The 2P 230V / 63A Automatic Transfer Switch (ATS) ensures an uninterrupted power supply to the electrical installation by automatically switching between the public grid and a private generator. With a transfer time of only 0.05 seconds, the switchover is practically imperceptible to connected electrical appliances. Ideal for homes, farms, factories, and any installation requiring continuity in electricity supply.
What you get with this product
- Continuity in electricity supply — automatic switching between grid and generator occurs in 0.05 seconds, without perceptible interruption
- Protection for electrical equipment — the ATS prevents simultaneous operation of the two sources, eliminating the risk of damage
- Complete flexibility — features Manual and Automatic modes, selectable directly on the device with the red switch
- 63A capacity at 230V AC — suitable for residential, agricultural, and industrial installations with high consumption
- Standard DIN rail mounting — integrates directly into the existing electrical panel, without additional modifications
- Robust construction with impact-resistant housing — high IK rating, suitable for environments with mechanical stress
How it works and how to install it
The ATS is mounted on a DIN rail in the electrical panel and connected to two sources: Source A (public electrical grid) and Source B (generator). In Automatic mode, the device continuously monitors the voltage from the main grid and, when it disappears, instantly switches to the generator; when the grid returns, the transfer occurs automatically again. Installation should be carried out by an authorized electrician, as connections are clear and labeled directly on the device.
Frequently Asked Questions
Can I use this ATS in manual mode as well, without automatic switching?
Yes, the switch has a Manual position (A or B) and an Auto position — in manual mode, you directly choose the desired power source, regardless of the grid status.
Is it compatible with any single-phase 230V generator?
Yes, the ATS works with any single-phase generator providing 230V AC, provided that the generator's power is appropriately sized for the installation's consumption (max. 63A per phase).
What happens if the grid returns while the generator is running?
In Automatic mode, the ATS detects the return of grid voltage and automatically switches back to Source A, without any manual intervention.
Technical Specifications
| Model | DALBI 125/2P |
| Type | Automatic Transfer Switch (ATS) 2 Pole |
| Rated voltage | 230V AC |
| Rated current | 63A |
| Number of poles | 2P (L + N) |
| Transfer time | 0.05 seconds |
| Insulation voltage | 400V AC |
| Short-circuit current (Icw) | 50kA |
| Frequency | 50/60 Hz |
| Standard | IEC60947-6 |
| Control voltage | AC 220V |
| Utilization category | PC |
| Operating mode | Manual / Automatic |
| Mounting | DIN rail |
| SKU | Q-5A054 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with Romanian law. We accept returns within 30 days of receiving the package, with no justification required. Delivery is carried out quickly by courier, with shipping confirmation and tracking included.
