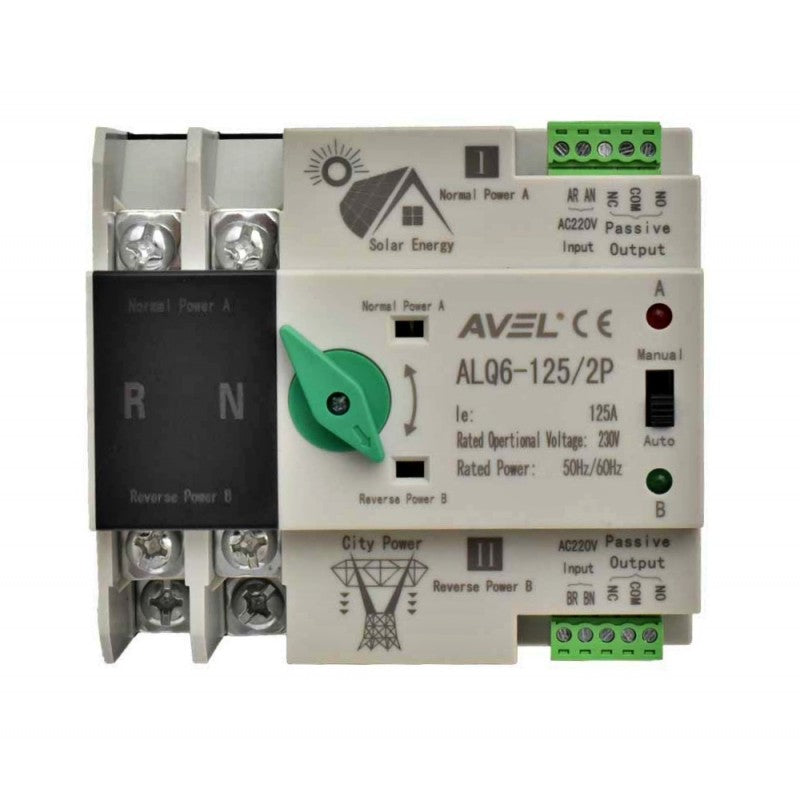

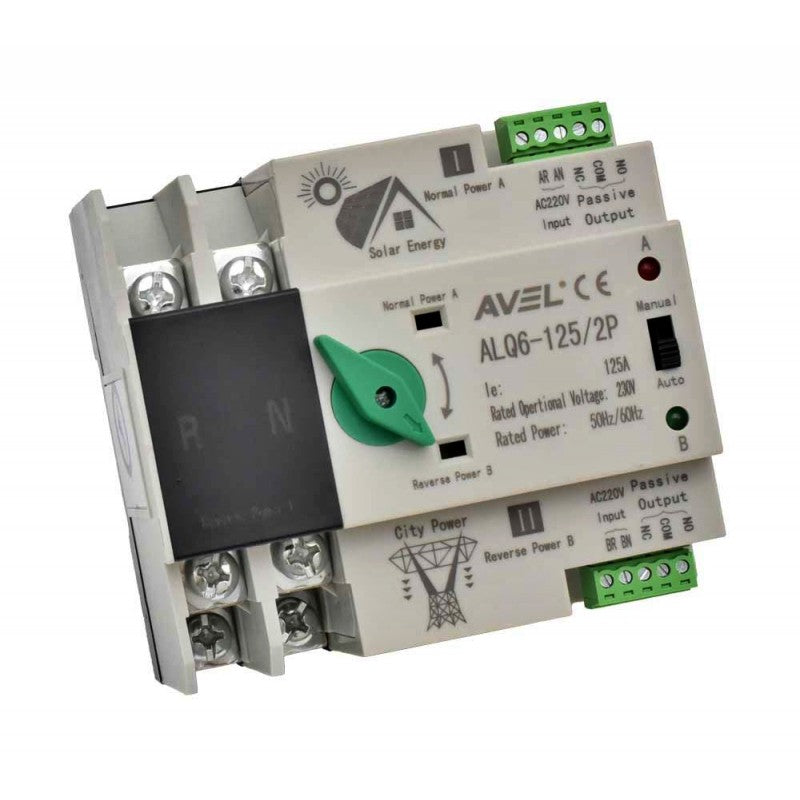

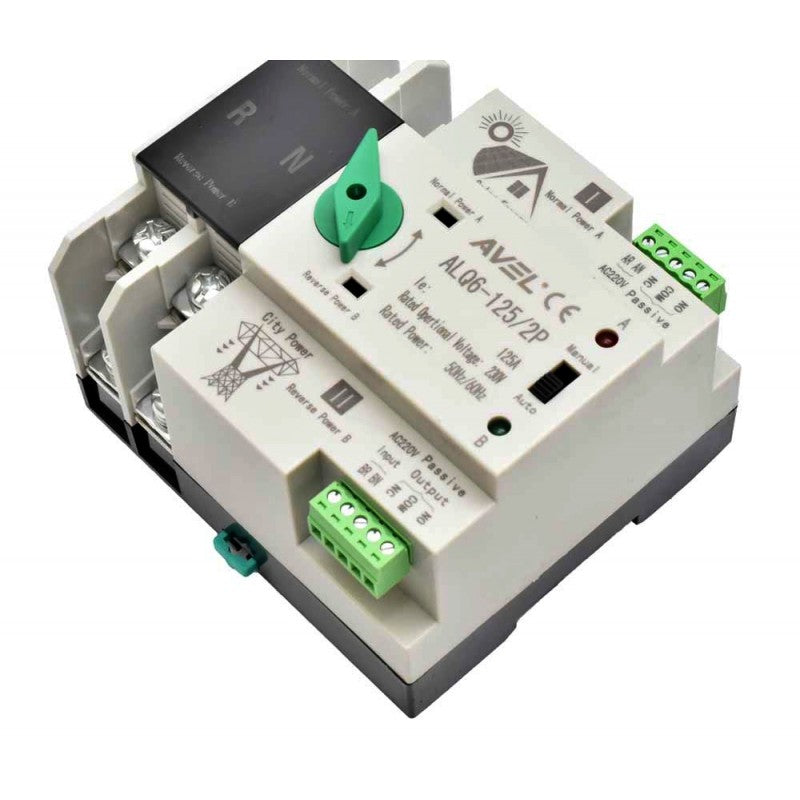

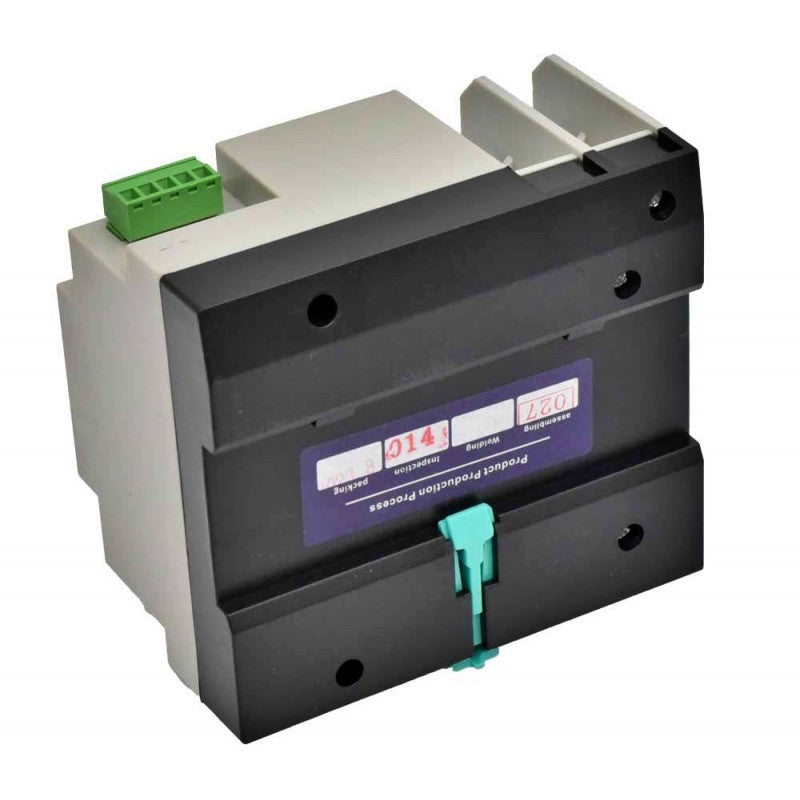

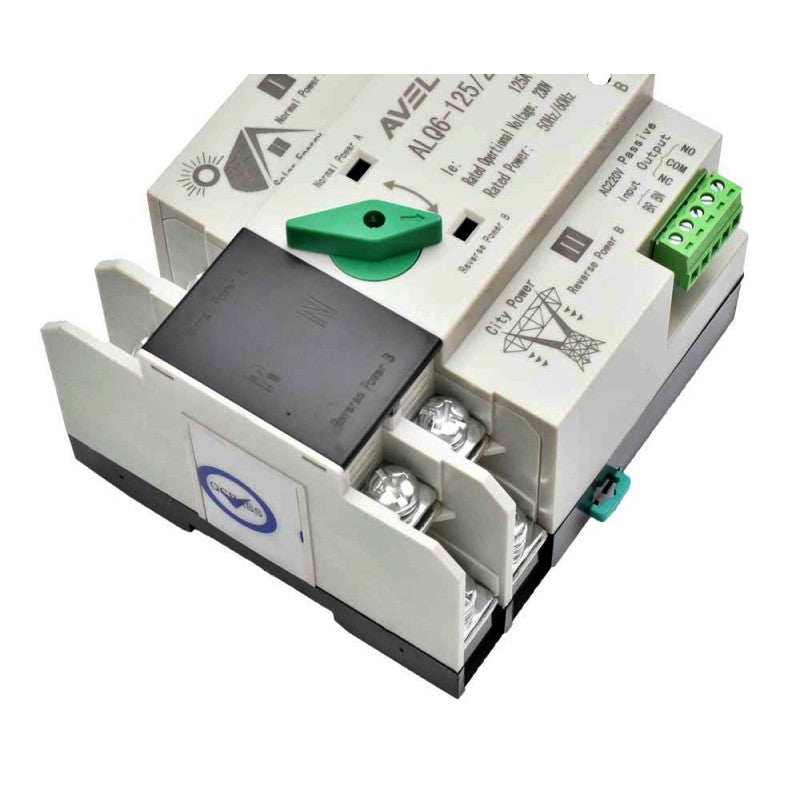

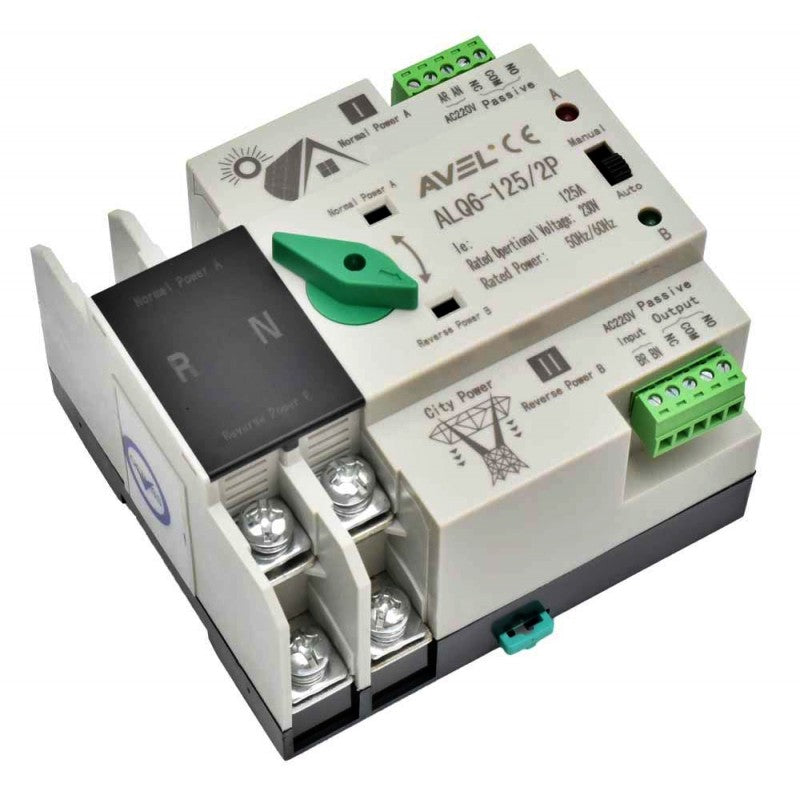

Photovoltaic Automatic Transfer Switch, ATS, 125A, 2 Pole
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
125A Automatic Transfer Switch for Photovoltaic Systems
This automatic photovoltaic transfer switch ensures continuity of power supply by instantly switching between the solar source and the public electricity grid. Recommended for homes with solar panels, farms, workshops, and commercial spaces that require uninterrupted operation. Switching occurs in just 0.05 seconds, without noticeable interruptions to consumers.
What you get with this product
- Fully automatic transfer between the photovoltaic system and the public grid — no interruptions, no manual intervention
- Ultra-fast switching of 0.05 seconds — sensitive equipment remains constantly functional
- 125A capacity at 400V — suitable for medium-sized residential and commercial installations
- Integrated manual switching option — direct control takeover when the situation requires it
- Robust construction with silver contacts and flame-retardant casing — wear resistance and increased safety
- Standard DIN rail mounting — simple integration into existing electrical panel
How it works and how to install it
The switch constantly monitors the availability of energy from panels and batteries. When the photovoltaic system does not produce enough energy or the batteries are discharged, it automatically transfers the power supply to the public electricity grid. Installation is done on a standard DIN rail in the electrical panel, with connection to the two energy sources and to consumers. The automatic-manual function is adjusted via the front button. Installation must be carried out by a licensed electrician according to the manufacturer's instructions.
Frequently Asked Questions
How quickly does it switch between sources and is the interruption noticeable?
Switching takes 0.05 seconds — practically imperceptible to equipment and lighting. Consumers operate continuously without turning off or resetting.
Can I switch it manually if I want to choose the source?
Yes, the switch has a manual option. You can manually select the desired source using the front button, ideal for maintenance or special situations.
Is it suitable for a house with a 5-7 kW photovoltaic system?
Yes, with a 125A capacity at 400V, this switch easily supports standard residential photovoltaic installations and household consumers.
Technical Specifications
| Model | ALQ6-125/2P (4 poles, extended version) |
| Rated Current | 125A |
| Number of Poles | 4 poles (2P + extension) |
| Rated Voltage | 400V AC |
| Input Voltage | 220V AC |
| Insulation Voltage | 690V |
| Frequency | 50/60Hz |
| Switching Time | 0.05 seconds |
| Rated Short-circuit Current | 50kA |
| Impulse Withstand Voltage | 8kV |
| Number of Switching Operations | Electrical: 2000 / Manual: 5000 |
| Casing Material | Flame-retardant ABS Plastic |
| Contact Material | Silver |
| Dimensions | 150 x 110 x 83 mm |
| Mounting | Standard DIN rail |
| Operating Mode | Automatic / Manual (selectable) |
Warranty and Support
The product benefits from a 2-year warranty in accordance with Romanian legislation. 30-day return right without justification. Fast delivery by national courier. Installation must be carried out exclusively by authorized personnel in accordance with current electrical regulations.
