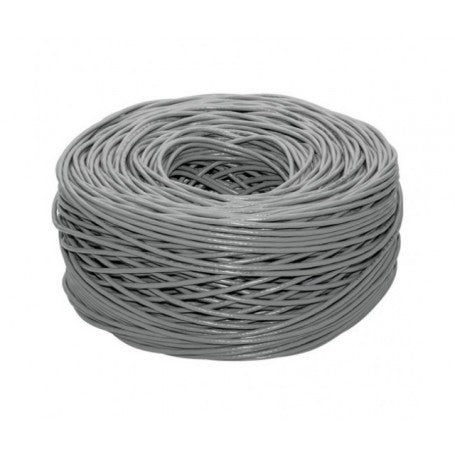

UTP Cable on a drum, 305 meters, CAT5, CCS Alloy Conductors, 8x0.5mm, PVC Jacket
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
UTP CAT5 Cable on Reel for Network and Surveillance
The UTP CAT5 cable on a 305-meter reel with CCS alloy wires and PVC sheath is a practical solution for network, internet, and video surveillance system installations. With a wire diameter of 0.5mm and a 4-twisted pair structure, it ensures stable data and video signal transmission over long distances. The 305-meter reel covers medium to large installations without the need for additional splices.
What you get with this product
- 305-meter reel — enough material for a complete network or surveillance installation without unwanted joints or intermediate connections
- Compatible with surveillance cameras, video intercoms, and standard CAT5 network equipment — a single cable for multiple applications
- Flexible PVC sheath — easily routed through conduits, protective pipes, and hard-to-reach areas without damage
- 4 color-coded twisted pair structure — quick identification of wires during installation, no confusion during termination
- 0.5mm wire diameter — compatible with standard RJ45 connectors and patch panel clips, no special tools required
- Compact reel format — easy storage and unwinding on site, without cable tangling
How it works and how to install it
The UTP CAT5 cable transmits data or video signals through its 8 wires grouped into 4 twisted pairs, each pair identified by a distinct color according to the EIA/TIA-568 standard. Installation involves unrolling the cable from the reel, routing it through conduits or protective pipes, and terminating the ends with RJ45 connectors using a standard crimping tool. No special tools or advanced knowledge are required for installation.
Frequently Asked Questions
Is this UTP CAT5 cable suitable for PoE surveillance cameras?
The cable is compatible with surveillance systems, including PoE-powered cameras at typical distances of up to 100 meters per segment, in compliance with the CAT5 standard.
What is the difference between CCS and pure copper in UTP cable?
CCS (copper-clad steel) wire has a higher electrical resistance than pure copper, making it more suitable for signal transmission over short and medium distances, not for direct power supply.
Can I use this cable for my home or office internet network?
Yes, the UTP CAT5 cable supports speeds up to 100 Mbps at 100 MHz, making it suitable for internet and LAN networks in homes, small offices, and surveillance installations.
Technical specifications
| Cable category | CAT5 |
| Cable type | UTP (Unshielded Twisted Pair) |
| Number of wires | 8 wires (4 twisted pairs) |
| Conductor diameter | 0.5 mm |
| Conductor material | CCS alloy (copper-clad steel) |
| Outer sheath | PVC |
| Reel length | 305 meters |
| Applications | Data network, internet, video surveillance, video intercom |
| SKU | Q-10D001 |
Warranty and support
The product comes with a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, without the need for justification. Delivery is fast by courier, with shipping confirmation and tracking included.
