Flat Electrical Cable, White, 2x0.75mm, MYYUP, 100m Roll
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

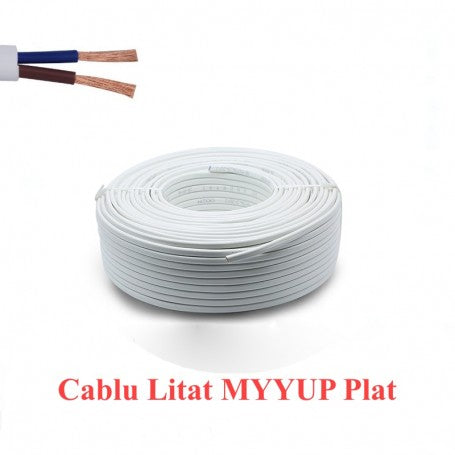

MYYUP 2x0.75mm Flat Electrical Cable for Installations and Accessories
The MYYUP 2x0.75mm flat electrical cable is frequently chosen for powering low-voltage accessories such as doorbells, video cameras, radios, and other low-power devices. The flat shape of the PVC sheath allows for discreet installation along walls or door frames, without the need for cable ducts. The 100m roll provides sufficient material for large-scale projects without additional splices.
What you get with this product
- Discreet and tidy installation — the flat profile of the MYYUP cable adheres to surfaces without creating visible bulges
- High installation flexibility — the class 5 stranded copper conductor allows repeated bending without the risk of wire breakage
- 100m roll cut to the exact length needed — eliminates waste and additional costs of unused meters
- Certified fire safety — PVC sheath with flame propagation retardant properties, according to SR HD standards
- Compatible with a wide range of applications — doorbells, video cameras, radios, control panels at voltages up to 300/300V
- Durable double PVC insulation — separate TI2 insulation layer and TM2 sheath ensure electrical and mechanical protection for long-term use
How it works and how to install

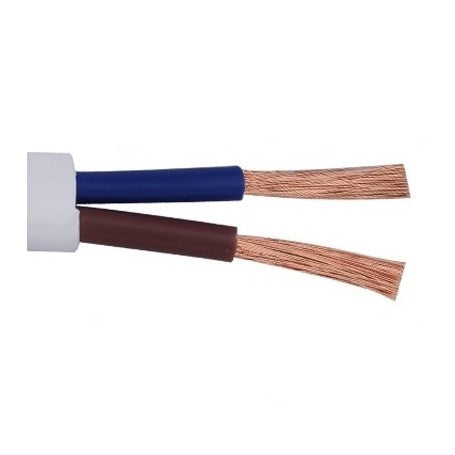

The MYYUP 2x0.75mm cable is cut to the desired length directly from the roll and positioned along flat surfaces, where it can be secured with clamps or ties without deforming the flat profile. The two stranded conductors, marked by distinct insulation colors (blue and brown), are easily connected to the terminals of the powered device, observing the indicated polarity. No special tools are required — an electrician's knife and wire stripper are sufficient for proper installation.
Frequently asked questions
Can I use this cable for my home lighting electrical installation?
It is not recommended for home lighting circuits — the 0.75mm² cross-section and nominal voltage of 300/300V make it suitable for powering low-power accessories, not for general outlet or lighting circuits.
Is it moisture resistant or can I use it outdoors?
The MYYUP cable is not recommended for use in high humidity conditions or unprotected outdoors — it is used in dry environments, at temperatures between -10°C and +70°C during operation.
How much cable does the roll provide and can I buy it by the meter?

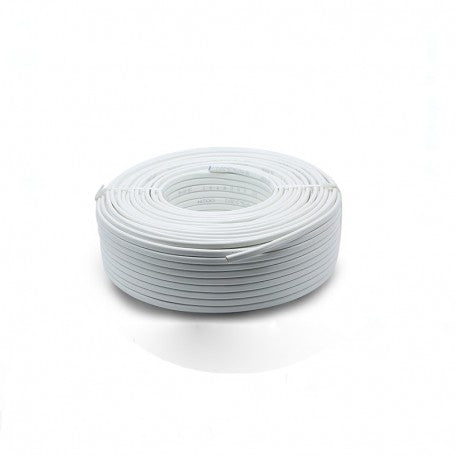

The roll contains 100 meters of cable; the product is sold exclusively as a full 100m roll.
Technical specifications
| Cable type | MYYUP |
| Conductor cross-section | 2 x 0.75 mm² |
| Number of conductors | 2 |
| Conductor type | Flexible stranded copper, Class 5 |
| Nominal voltage | 300/300V |
| Test voltage | 5 kVdc, 5 minutes |
| Insulation thickness | 0.50 mm |
| Outer diameter | 3.3 x 5.4 mm |
| Insulation type | PVC TI2, according to SR HD 21.1 S4:2004 |
| Sheath material | PVC TM2, according to SR HD 21.1 S4:2004 |
| Conductor insulation colors | Blue / Brown |
| Outer sheath color | White |
| Flame propagation retardant | Yes |
| Maximum operating temperature | +70°C |
| Minimum operating temperature | -10°C |
| Minimum handling temperature | +5°C |
| Storage temperature | -30°C / +50°C |
| Roll length | 100 m |
| Conductor standard | SR CEI 60228 |
| SKU | Q-10C011 |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with Romanian legislation. We accept returns within 30 days of receiving the order, without requiring justification. Delivery is carried out quickly by courier within Romania.
