Coaxial TV Cable RG6U Copper + Power 2x0.5 (Black)
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
RG6U Coaxial Cable with Power for HD Cameras
The RG6U coaxial cable with copper conductor and 2x0.5 mm power cable is the complete solution for installing digital and HD surveillance cameras. In a single pass through the wall, you get both the video signal and power supply, without additional cables. The 100-meter roll covers medium and large installations, significantly reducing working time.
What you get with this product
- Clean video signal, free of interference — the copper conductor and double shielding (32 copper wires + foil) eliminate electromagnetic disturbances
- A single cable run for signal and power — the integrated 2x0.5 mm power cable saves time and materials during installation
- Compatible with HD, AHD, TVI, CVI, and analog cameras — 75 Ohm impedance complies with the standard for video surveillance systems

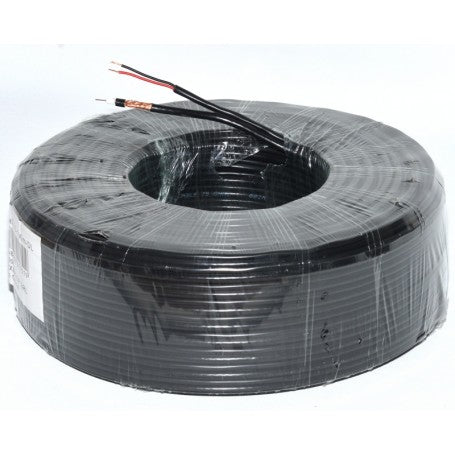

- 100-meter roll ready to deploy — ideal for residential and commercial installations without intermediate splices
- Robust black PVC insulation resistant to UV and outdoor conditions — suitable for surface mounting or buried in a protective conduit
- Competitive per-meter price when purchasing the roll — maximum efficiency for installers and CCTV system integrators
How it works and how to install it

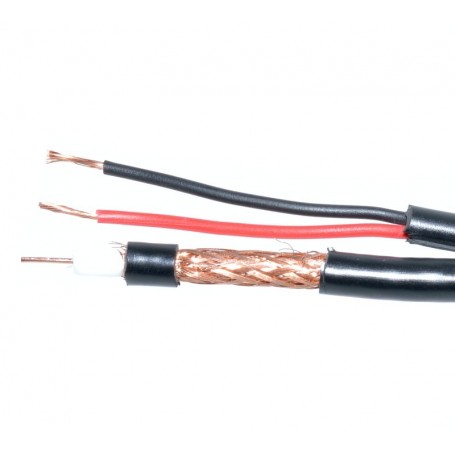

The RG6U coaxial cable transmits the video signal from the surveillance camera to the DVR or monitor through the shielded copper core, maintaining image quality over long distances. The two power wires (red and black, 2x0.5 mm cross-section) are attached in a common jacket, so you run a single cable and connect both the signal BNC and the power adapter. Installation does not require special tools — the ends are terminated with BNC connectors via crimping or screwing, an operation accessible to any technician.
Frequently Asked Questions
Does this cable work for IP cameras or only for analog and HD-AHD cameras?
The RG6U cable is intended for analog, HD-AHD, HD-TVI, and HD-CVI cameras that use a BNC connection. For IP cameras, UTP cable is used, not coaxial.
How much signal is lost over 100 meters?
At common CCTV frequencies (up to 8 MHz for HD), the attenuation over 100 m is small enough to maintain a clear image without an amplifier, provided correct shielding at the ends.
Does the 2x0.5 power wire support the current of a typical surveillance camera?
Yes, the 2x0.5 mm cross-section is dimensioned for typical surveillance camera currents (under 1A at 12V DC), over distances of up to 30-40 meters without significant voltage drop.
Technical Specifications
| Cable type | RG6U Coaxial + Power |
| Central conductor | Copper, 0.75 mm diameter |
| Internal insulation | PE Foam |
| Shielding | 32 copper wires x 0.12 mm + copper foil |
| Impedance | 75 Ohm |
| Integrated power cable | 2 x 0.5 sq mm |
| PVC jacket color | Black |
| Roll length | 100 m |
| Box contents | 4 rolls |
| SKU | Q-10B005 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with Romanian law. Returns accepted within 30 days of receiving the order, no justification required. Delivery is carried out quickly by courier, with parcel tracking available.
