Metallic Push Button, 220V, 22mm, Latching, Red LED, Socket included, ElectroAZ
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun

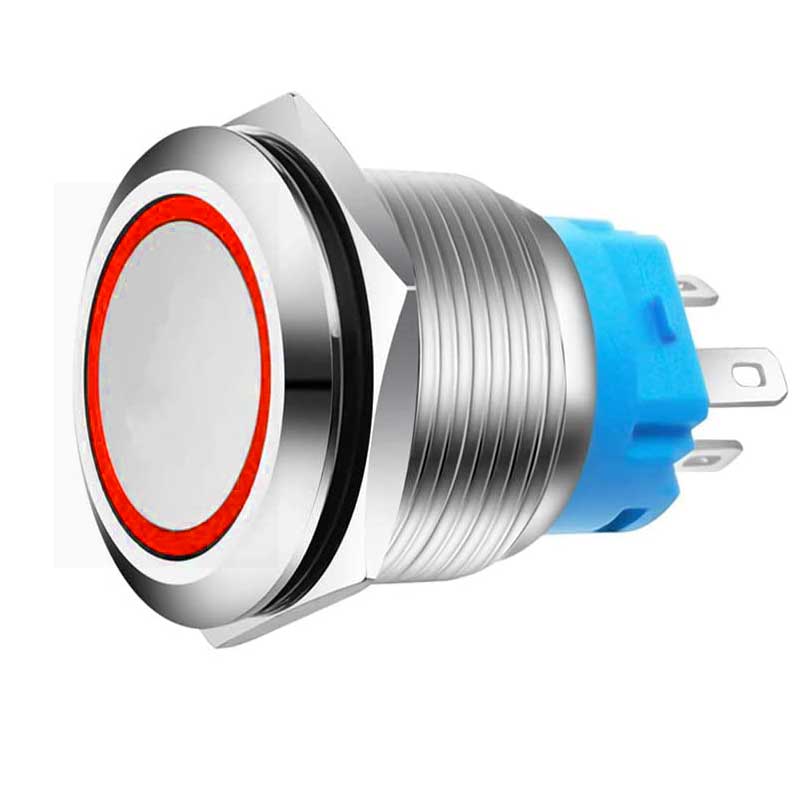

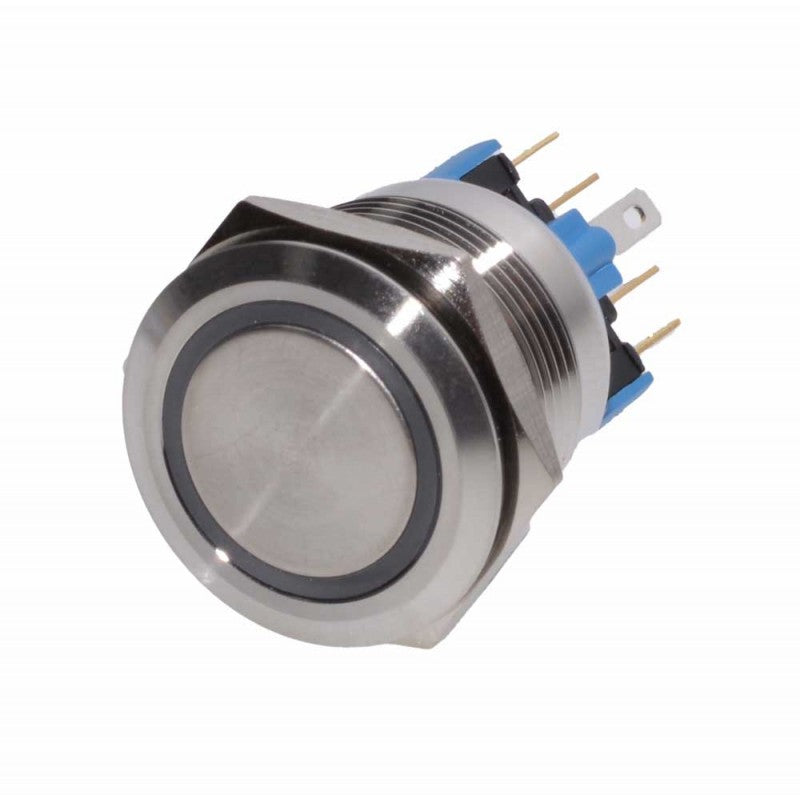

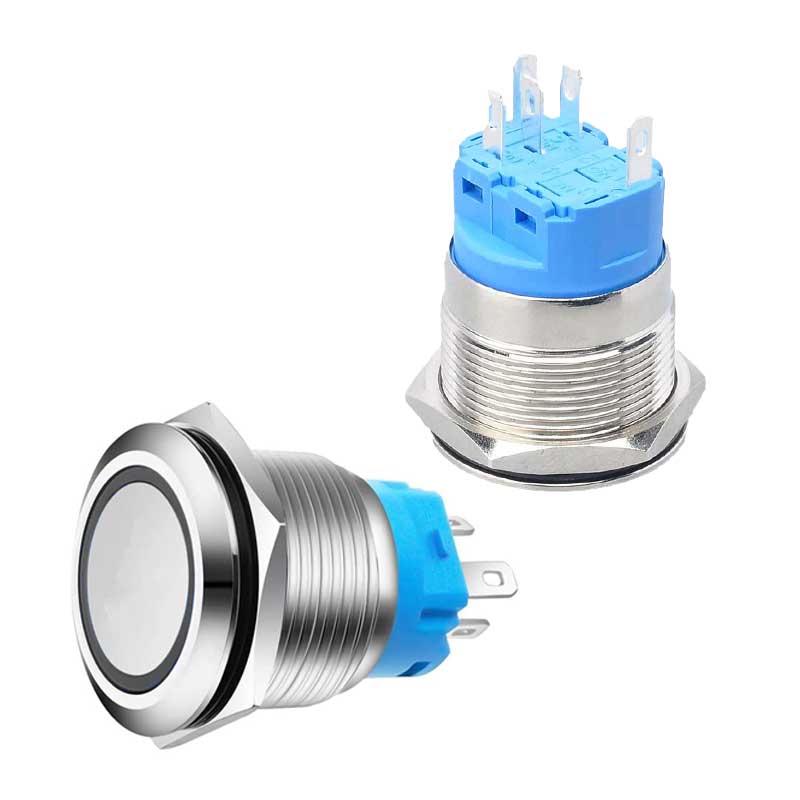

22mm Metal Push Button with Red LED and Latching Function
The 22mm metal push button with red LED is a robust solution for industrial control panels, elevators, and equipment that require a quality switch that is easy to identify visually. Powered at 220V, its stainless aluminum body provides mechanical resistance and impermeability, suitable for both indoor and exposed environments. The wire connector is included in the package, meaning you can connect it directly without additional purchases.
What you get with this product
- Immediate visual identification — the red LED ring illuminates the button and indicates its active status, useful in panels with multiple switches
- Latching function (self-locking) — the button remains pressed after actuation, eliminating the need for continuous manual holding
- Vandal and weather resistance — 304/316 aluminum housing with IP67 and IK09 rating, suitable for exposed panels
- Compatible with NO and NC circuits — the 5 pins allow configuring normally open or normally closed contacts, depending on your connection diagram
- Wire connector included — connection can be made directly from the package, without additional accessories
- Quick mounting with M22 thread — it fixes into any panel with a standard 22mm hole, nut and rubber gasket are included
How it works and how to install it

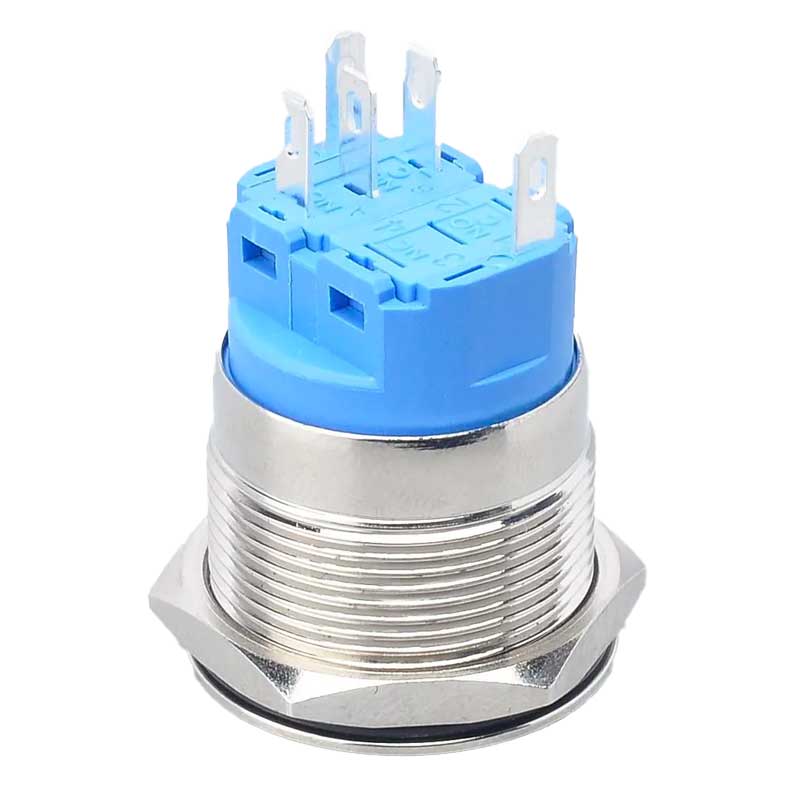

The button is mounted in any panel with a 22mm hole: it is inserted from the front, the nut is tightened from the back, and the rubber gasket ensures sealing. Connection is made via the 5 pins — 2 for LED power (LED+ and LED-) and 3 for switching contacts (NO, NC, COM), clearly marked on the button's blue base. No advanced electrical knowledge is required: the pinout diagram is simple and can be followed according to the included diagram.
Frequently Asked Questions
Does the button stay pressed or does it return on its own after actuation?
This model has a latching (self-locking) function: the button remains in the pressed position and is only released by a new press, unlike momentary variants.
Is the wire connector included in the package?
Yes, for this SKU the wire connector is included, so it does not need to be purchased separately.
What hole diameter do I need in the panel for mounting?

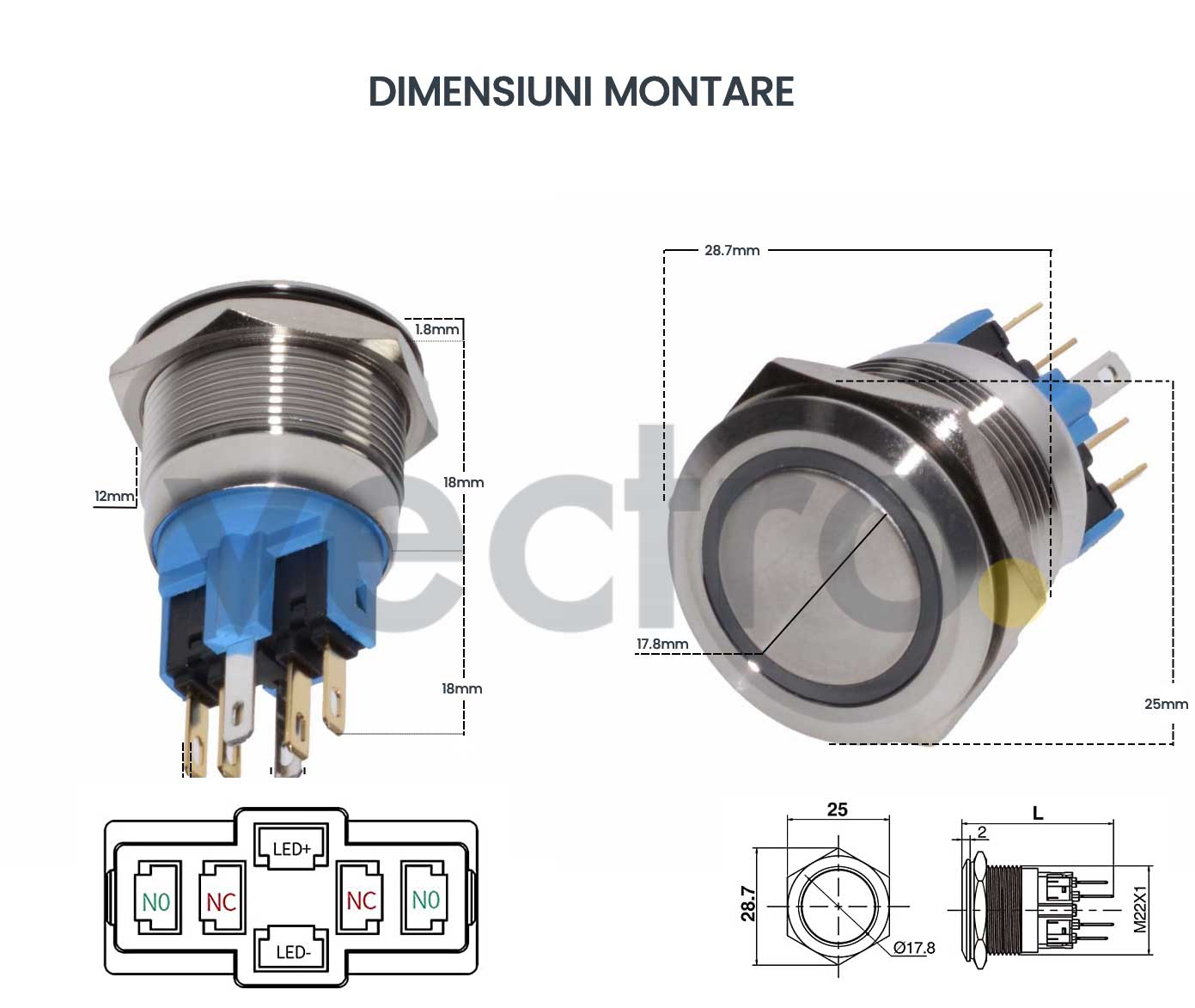

A 22mm diameter hole is required; the button thread is M22x1, and the outer diameter of the flange is 28.7mm.
Technical Specifications
| SKU | EAZ-BP026 |
| Brand | ElectroAZ |
| Mounting diameter | 22 mm |
| Thread | M22x1 |
| Flange diameter | 28.7 mm |
| Button diameter | 17.8 mm |
| Total height | approx. 36 mm (body 18 mm + connectors 18 mm) |
| LED supply voltage | 220V AC |
| LED color | Red |
| Illumination type | Ring illumination |
| Operation type | Latching (self-locking) |
| Number of pins | 5 (2 LED, 3 contact: NO, NC, COM) |
| Available contact types | NO (normally open) and NC (normally closed) |
| Body material | 304/316 Stainless Aluminum |
| Contact material | Gold-plated silver alloy |
| Protection class | IP67 |
| Impact resistance | IK09 |
| Wire connector | Included |
| Sealing gasket | Rubber, included |
| Fixing nut | Included |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days of delivery, provided the product is kept in its original condition. Fast courier delivery throughout Romania.
