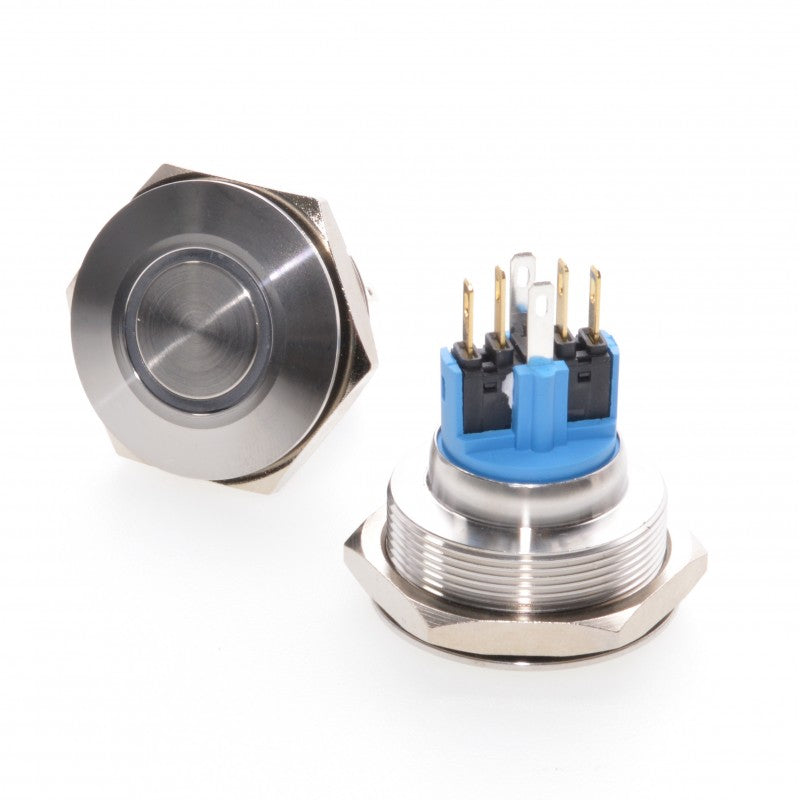

30mm Push Button with Return, 24V Red LED
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
30mm Industrial Push Button with Red LED 24V
The 30mm push button with a 24V red LED is designed for industrial applications where mechanical resistance and status visibility are essential. Its stainless steel housing, IP67 protection rating, and IK09 vandal-proof construction make it suitable for automation panels, self-service car washes, vending machines, and HORECA equipment. With momentary action and dual NO/NC contacts, it integrates directly into control circuits without additional modifications.
What you get with this product
- IP67 certified resistance — the button resists water and dust ingress, functioning correctly even in wet environments or those exposed to the elements
- IK09 vandal-proof protection — the 304/316 stainless steel housing absorbs mechanical shocks without deformation or mechanism blockage

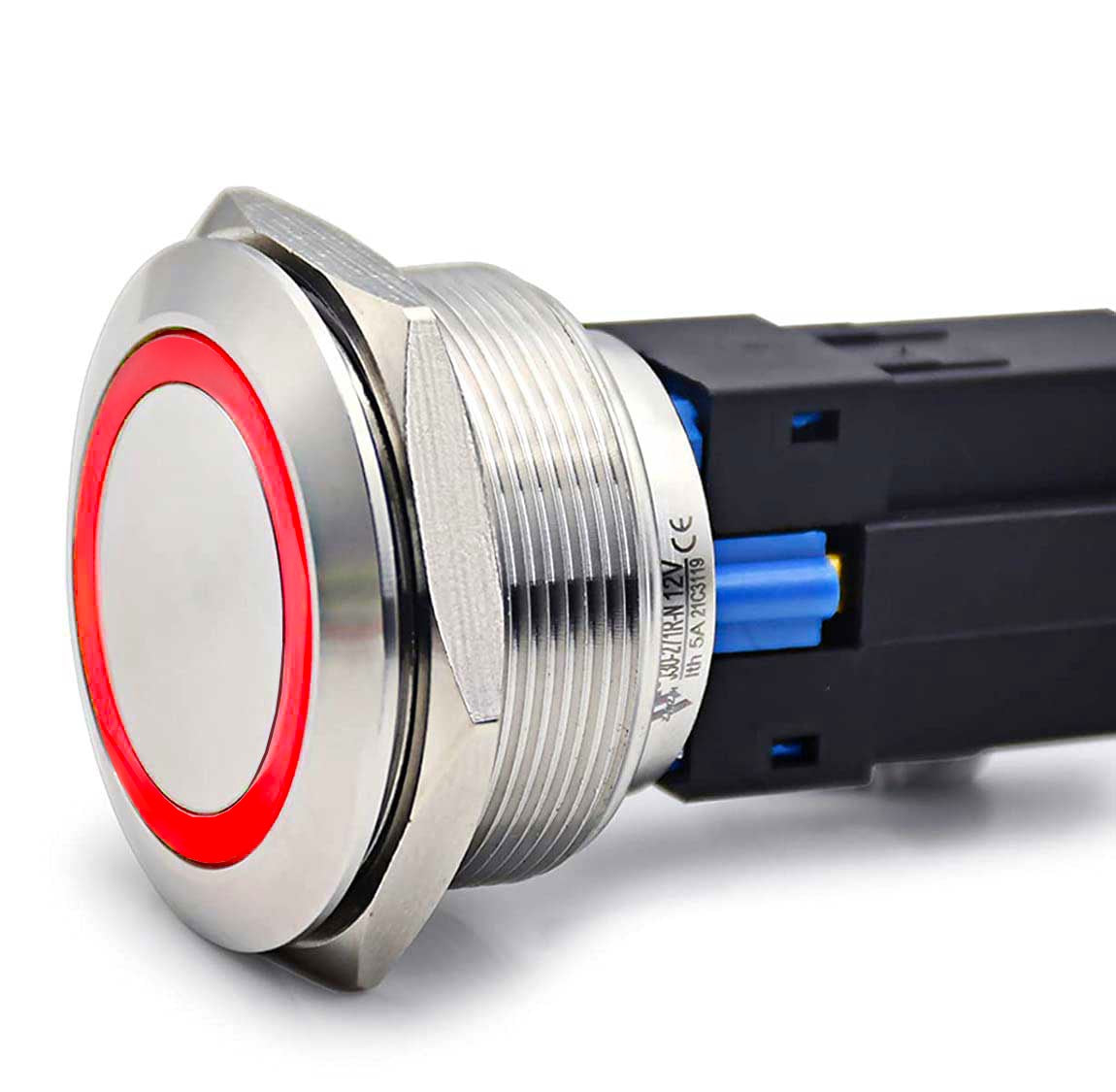

- Immediate status visibility — the 24V red illuminated ring clearly signals whether the circuit is active, even in conditions of high ambient light
- Connection flexibility — two contact types available simultaneously (NO and NC) on the 4 control pins, without adapters or additional parts
- Gold-plated silver alloy contacts — stable long-term conductivity, without oxidation at signal connections
- Direct panel mounting — M30 thread, 13mm thread length, compatible with standard industrial panel sheet thicknesses
How it works and how to install it

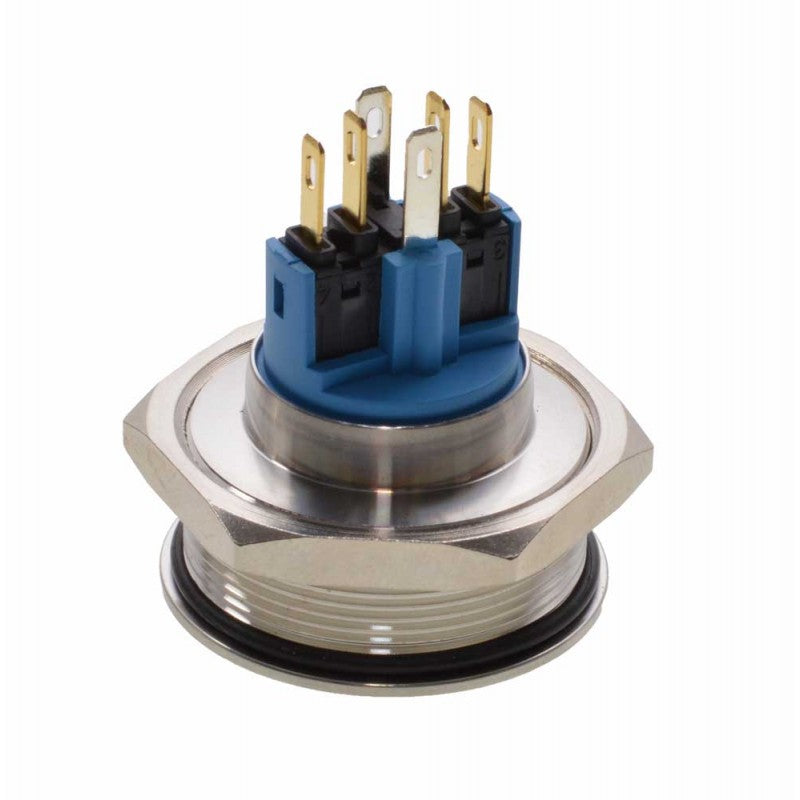

The button is mounted in a 30mm hole by screwing it in with a fixing nut on the back — no special tools are required. The 6-pin connector clearly separates the LED power supply (LED+, LED-) from the control contacts (NO, NC), making wiring intuitive even without advanced electronics experience. The LED is powered by 24V DC, and the contacts support currents up to 5A, covering most industrial control applications.
Frequently Asked Questions
Does the button stay pressed or return on its own after pressing?
It returns on its own — it is a momentary action button, which means the circuit closes only as long as you hold it down, then returns to its initial position.
Can I use this push button outdoors, exposed to rain?
Yes. The IP67 protection class guarantees watertightness against temporary immersion in water, so resistance to direct rain is not a problem.
What diameter should I drill in the panel for mounting?
The mounting hole must have a diameter of 30mm; the button is fixed by an M30 thread with the included tightening nut.
Technical Specifications
| Mounting diameter | 30 mm |
| Thread | M30, thread length 13 mm |
| External dimensions | 38.8 x 33.8 mm |
| Total length | 40 mm |
| LED voltage | 24V DC |
| Illumination color | Red |
| Max contact current | 5A |
| Action type | Momentary |
| Contact type | NO (normally open) and NC (normally closed) |
| Number of pins | 6 pins (2 LED, 4 contact) |
| Connector pin pitch | 2.8 mm / 0.5 mm |
| Housing material | 304/316 Stainless Steel |
| Contact material | Silver alloy, gold plated |
| Protection class | IP67 |
| Vandal-proof class | IK09 |
| Certification | CE |
| SKU | Q-6D050 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receipt, without the need for justification. Delivery is carried out by express courier, with dispatch confirmation and parcel tracking available.
