30mm Latching Push Button 24V Red LED
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

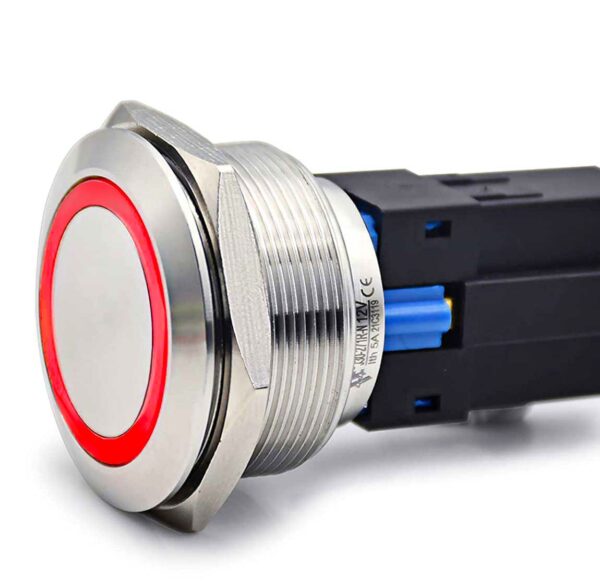

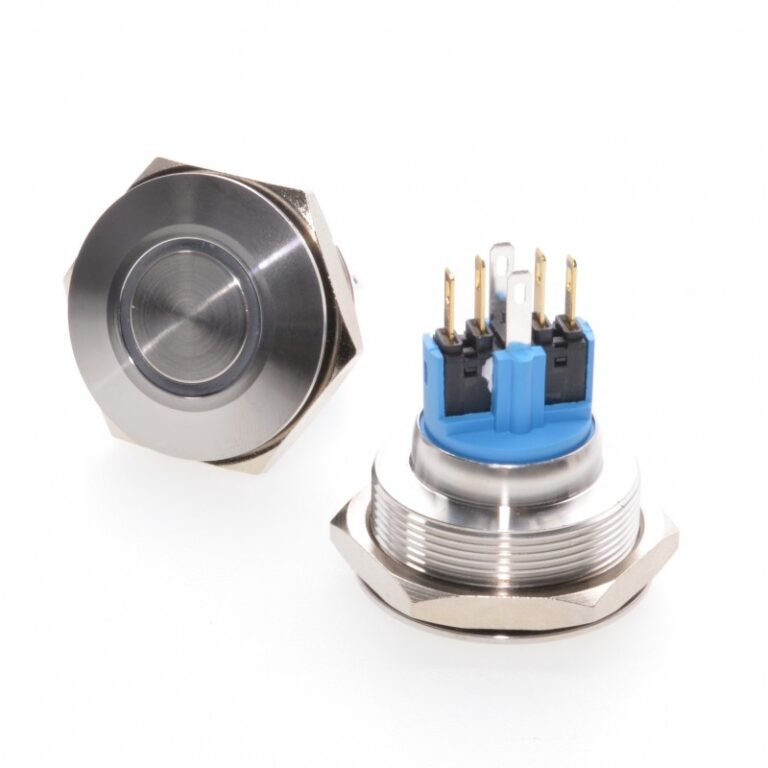

30mm Latching Push Button with Red 24V LED
The 30mm metal push button with latching action and red 24V LED illumination is designed for industrial control panels, technical equipment, and applications where durability matters. Its stainless steel, vandal-resistant casing and IP67 protection make it suitable for both indoor and outdoor use. The 6-pin connection allows for NO or NC contact configuration depending on the electrical diagram of the installation.
What you get with this product
- Latching mechanical action — the button stays pressed until the next press, ideal for on/off circuits
- Red LED ring illumination at 24V — clear visibility of active status, even in low light conditions
- Vandal-proof stainless steel metal body with IK09 protection — resists mechanical shocks and intensive use
- IP67 sealing — fully protected against dust and temporary immersion in water, without contact degradation
- Connection flexibility — 4 contact pins (1NO + 1NC) and 2 dedicated LED pins, compatible with most automation schemes
- Silver alloy contacts with max 50 mOhm contact resistance — stable long-term conductivity
How it works and how to install it
The button is mounted in a panel or housing through a 30mm hole, secured with the included detachable nut, and sealed with the attached rubber ring. Connection is made via the 6-pin connector: 2 pins for LED power and 4 pins for NO and NC contacts. No special tools are required — the M30 thread and fastening nut ensure a firm fit in standard thickness panels, without the intervention of a licensed electrician for the mechanical assembly itself.
Frequently Asked Questions
Is the connection plug included in the package?
No, the 6-pin plug is not included and must be purchased separately. The package only contains the push button with nut and sealing ring.
Can this button be used at 12V instead of 24V?
The nominal voltage of the LED is 24V. Use at 12V may significantly reduce light intensity or the LED may not function correctly; it is recommended to observe the indicated voltage.
What is the difference between NO and NC contacts on this button?
NO (normally open) means the circuit is open at rest and closes when pressed, while NC (normally closed) works in reverse. Both variants are available on the same button via dedicated pins, with the choice made at the time of connection.
Technical Specifications
| SKU | EAZ-BP070 |
| Mounting diameter | 30 mm |
| Thread | M30, thread length 13 mm |
| Total length | 40 mm |
| Outer head diameter | 38.8 mm |
| Outer body diameter | 33.8 mm |
| LED voltage | 24V |
| LED color | Red, illuminated ring |
| Action type | Latching |
| Number of pins | 6 pins (2 LED+ / LED-, 4 contact: 1NO + 1NC) |
| Connection type | 6-pin connector (2.8 mm / 0.5 mm) |
| Housing material | Stainless steel |
| Contacts | Silver alloy |
| Rated current | 5A |
| Protection level | IP67 / IK09 |
| Operating pressure | 500 gf |
| Operating temperature | -20°C to +85°C |
| Tightening torque | 5 - 14 Nm |
| Mechanical travel | 2.0 mm |
| Contact resistance | max 50 mOhm |
| Insulation resistance | max 1000 mOhm |
| Certification | CE |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days from the date of receipt, provided the product has not been mounted or damaged. Fast courier delivery within Romania, with shipping confirmation via e-
