25mm Push Button Switch with Return, 12-24V Blue LED
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

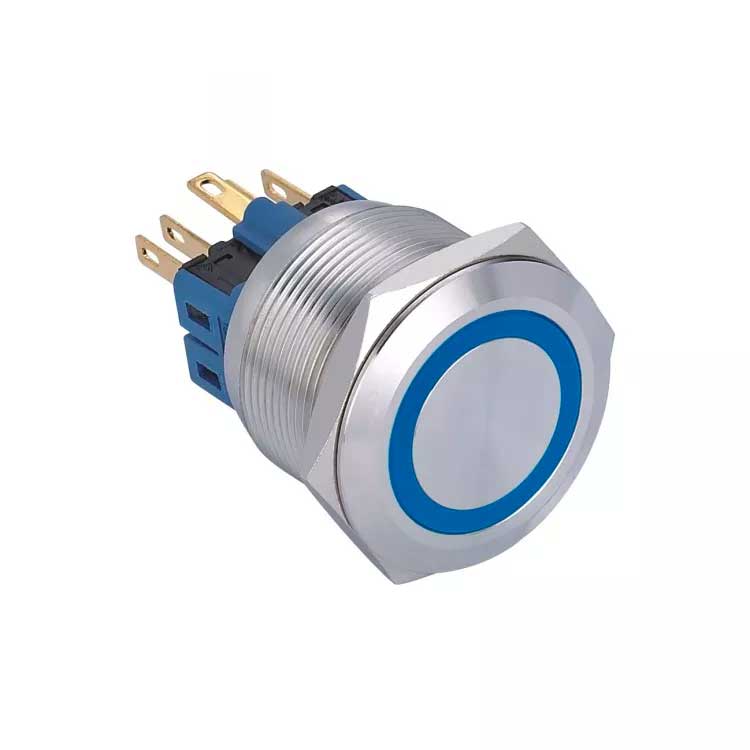

25mm Metal Push Button with Blue LED for Industrial Applications
The 25mm push button with blue LED is designed for control panels, industrial equipment, and applications requiring a robust and visible switch. It operates within the 9-30V range, covering standard 12V and 24V voltages, with 1NO + 1NC contacts for maximum connection flexibility. Its aluminum metal body and sealed construction make it suitable for demanding industrial environments, as well as residential or automotive applications.
What you get with this product
- Blue LED indicator, permanent or active when pressed — always know the circuit status without manual checking
- Aluminum body with IP67 protection rating and IK09 class — resistant to moisture, dust, and vandalism attempts
- Compatible with 9-30V DC — works without modifications at both 12V and 24V, the most common voltages in installations
- 1NO + 1NC contacts with gold-plated silver alloy — high conductivity and extended connection lifespan
- 6-pin connector with 150mm pre-assembled cable — wiring is fast, with color-coded wires for easy identification
- Removable nut and rubberized gasket included — mounting on panels of variable thickness can be done without specialized tools
How it works and how to install

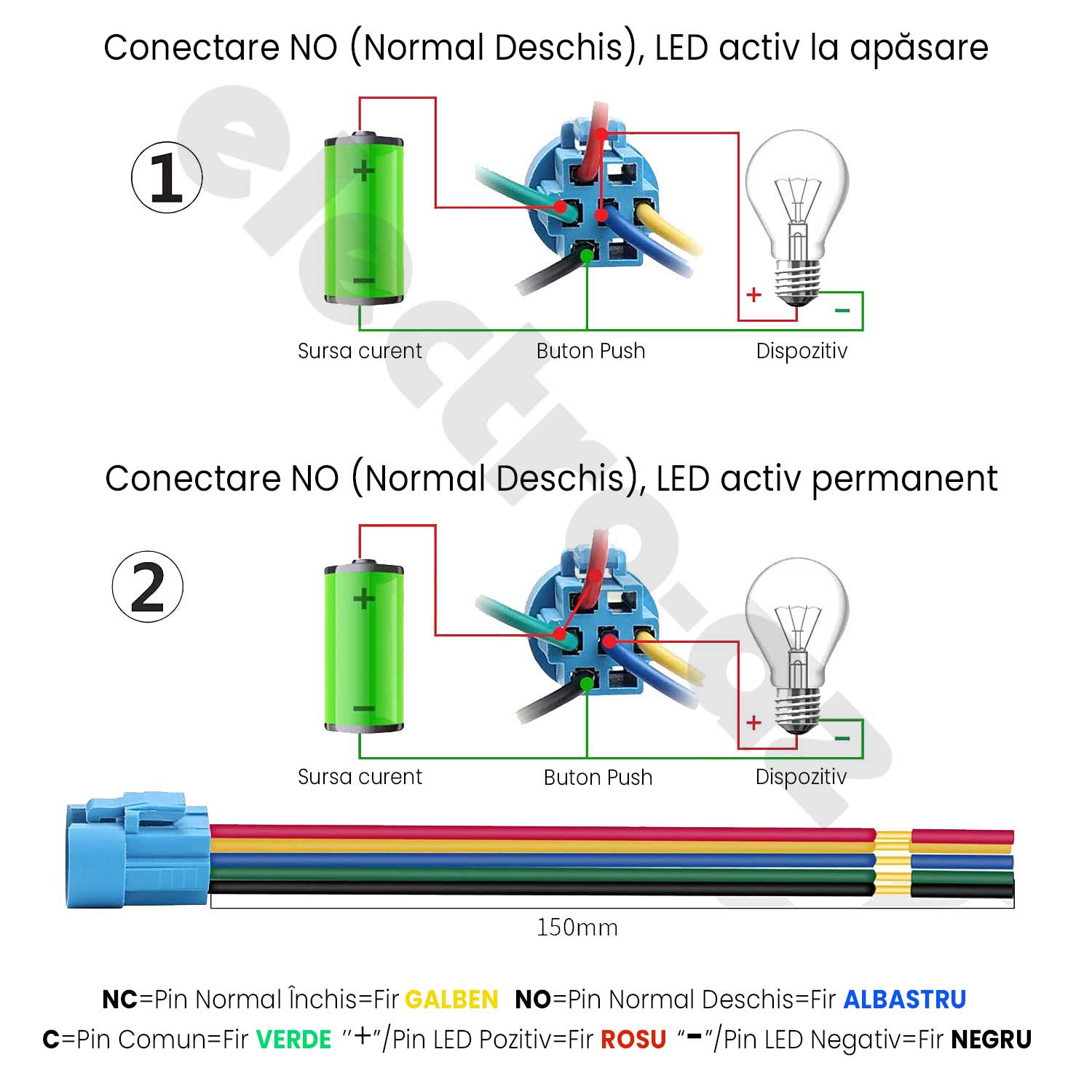

The 25mm push button is mounted in a 25mm hole (M25 thread) by screwing it from the back with the included nut. Connection is made via the 6 pins: red wire to the positive pole of the LED, black to negative, green to the common pin (C), blue to NO (normally open) and yellow to NC (normally closed). Depending on the desired scheme, the LED can be configured to light permanently or only when the button is pressed, following the provided wiring diagrams.
Frequently Asked Questions
Does the button work directly at 12V without an additional resistor?
Yes, the button is designed to work natively in the 9-30V range, so at 12V or 24V, it connects directly, without additional components.
What is the difference between NO and NC connection?
In NO (normally open) mode, the circuit closes only as long as you press the button. In NC (normally closed) mode, the circuit is closed at rest and interrupts when pressed. The choice depends on your application's logic.
Is the button water resistant if I mount it outdoors?
Yes, the rubberized gasket and metal body provide IP67 protection, meaning resistance to temporary immersion in water — suitable for outdoor mounting or in humid environments.

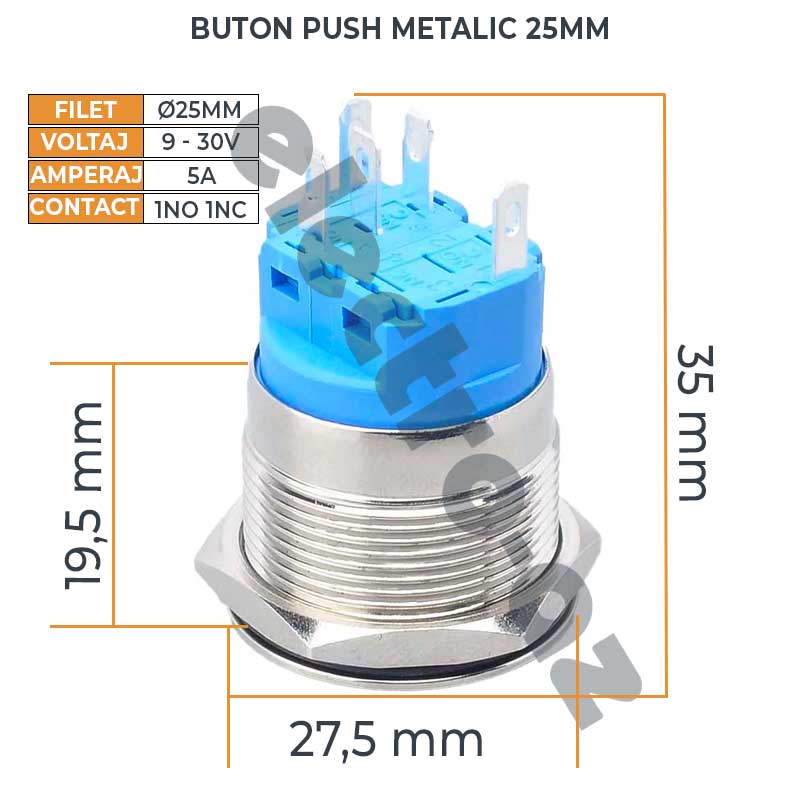

Technical specifications
| Thread diameter | M25 mm |
| Overall diameter (flange) | 27.5 mm |
| Overall length | 35 mm |
| Mounting depth (thread) | 19.5 mm |
| Supply voltage | 9 - 30V DC |
| Maximum current | 5A |
| Contact type | 1NO + 1NC (momentary) |
| Number of pins | 6 (2 LED + 4 contact) |
| Pre-assembled cable length | 150 mm |
| LED color | Blue |
| Body material | Aluminum 304/316 |
| Contact material | Gold-plated silver alloy |
| Protection rating | IP67 |
| Anti-vandalism class | IK09 |
| SKU | EAZ-BP066 |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days from the delivery date, without the need for justification. Delivery is carried out quickly by courier, with shipping confirmation.
