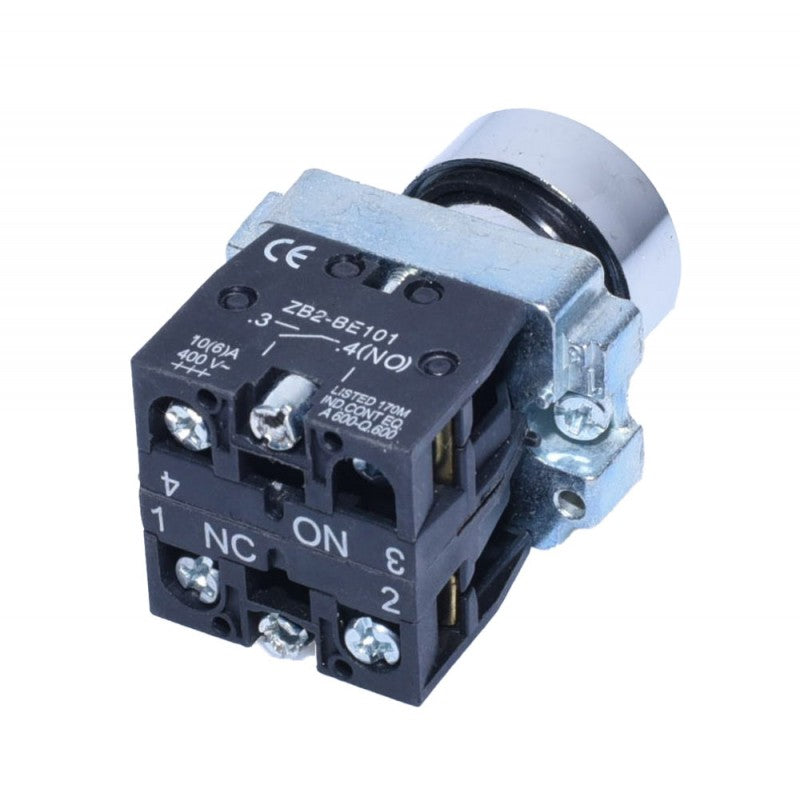

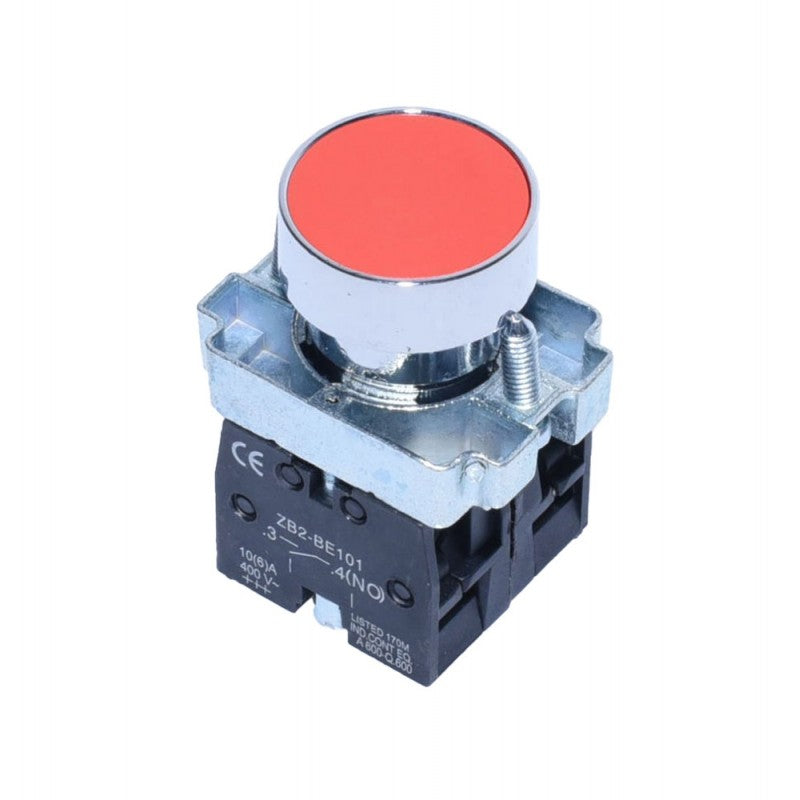

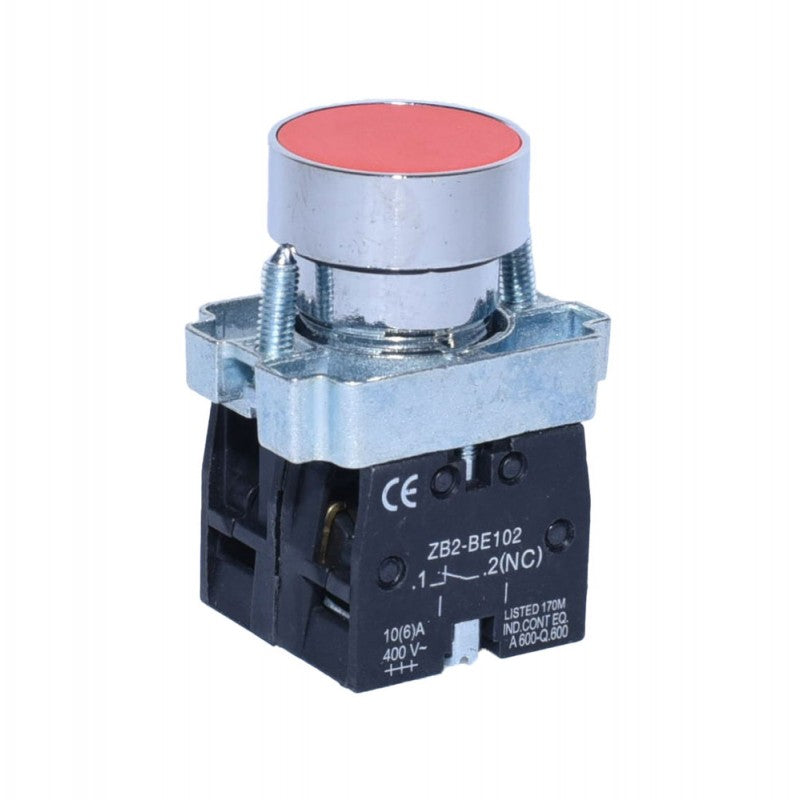

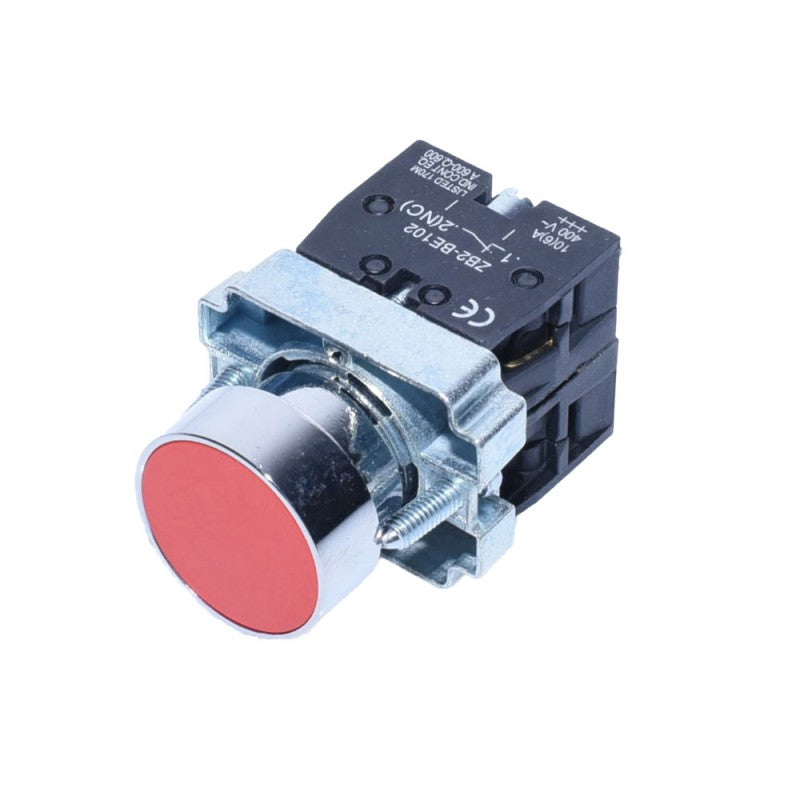

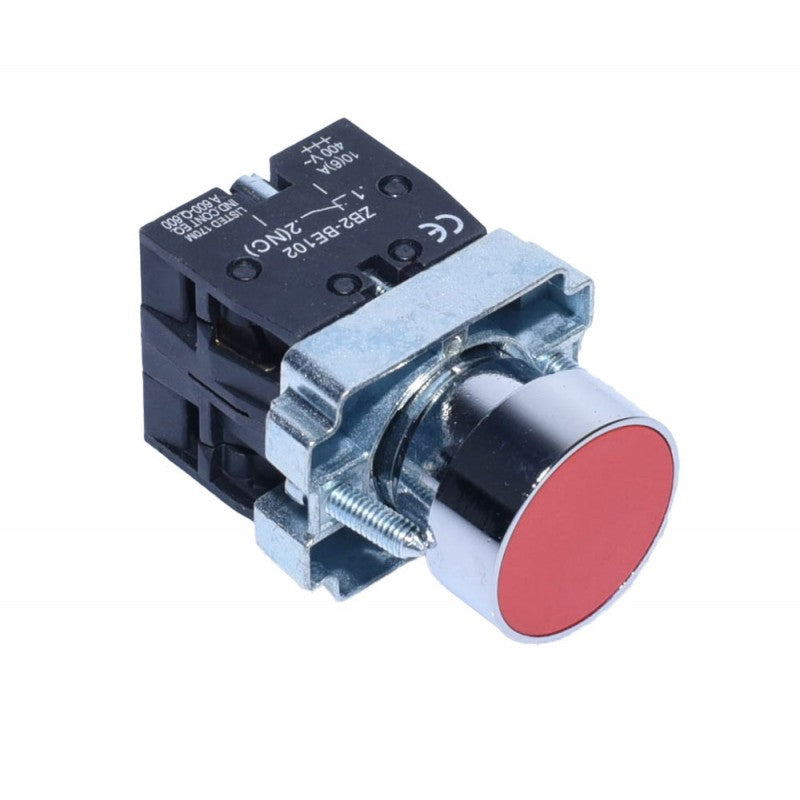

Push Button Motor BA45 Red 10A
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Red Industrial Latching Push Button 10A
The red BA45 motor push button is a reliable solution for manual control of electric motors, pumps, and industrial machinery. With a rated current of 10A and an insulation voltage of 600V, it is suitable for both domestic applications and demanding production environments. The NO or NC contact is easily made by pressing, with automatic return upon release.
What you get with this product
- Direct manual control of motors and pumps — safe operation with a simple press, no additional tools required
- Available with NO (ZB2-BE101) or NC (ZB2-BE102) contact — choose the right variant for your application without additional modifications
- Rated current 10A at 400V — supports real industrial loads, not just signal circuits
- Robust chromed metal housing — withstands vibrations and repeated mechanical stress in production environments
- Fast panel mounting — standard 22mm hole, secured with included threaded ring, no special adapters
- Automatic return upon release — eliminates the risk of remaining in active position and protects the controlled equipment
How it works and how to install
The BA45 push button works by direct pressing: when actuated, it closes (NO) or opens (NC) the controlled circuit, and upon release, the internal spring returns the button to its initial position. Mounting is done in a 22mm cutout in the control panel — insert the button from the front, tighten the fixing ring from the back, and connect the wires to the screw terminals of the contact block. It does not require special tools and can be installed by any authorized electrician in just a few minutes.
Frequently Asked Questions
What is the difference between the NO and NC versions?
The NO (normally open, ZB2-BE101) version has the circuit open at rest and closes it when pressed; the NC (normally closed, ZB2-BE102) version has the circuit closed at rest and opens it when pressed. Choose NO for starting and NC for stopping or protection functions.
Can this button be mounted directly on the electrical panel of a hydrophone or pump?
Yes, the button supports 10A at 400V, which covers most household and semi-industrial pumps and hydrophones. Check the absorbed current of the motor before mounting.
What hole diameter should I make in the panel for mounting?
A circular hole with a diameter of 22mm is required, standard for the XB2 series. The included tightening ring ensures mounting on panels with a thickness of up to approximately 5mm.
Technical specifications
| Model | XB2-BA45 |
| SKU | Q-6E065 |
| Contact type | 1NO (ZB2-BE101) / 1NC (ZB2-BE102) |
| Number of contacts | 4 contacts (2 poles) |
| Action type | Push with automatic return |
| Rated current | 10(6)A |
| Rated insulation voltage | 600V |
| Operating voltage | 400V |
| Mounting diameter | 22mm |
| Product dimensions | 54 x 40 x 30 mm |
| Button color | Red |
| Housing material | Chromed metal |
| Certification | CE |
| Package contents | 1x BA45 red push button |
Warranty and support
The product benefits from a 2-year warranty according to Romanian law. You can return the product within 30 days of receipt if it does not meet expectations. Delivery is fast via courier, with shipping confirmation by email.
