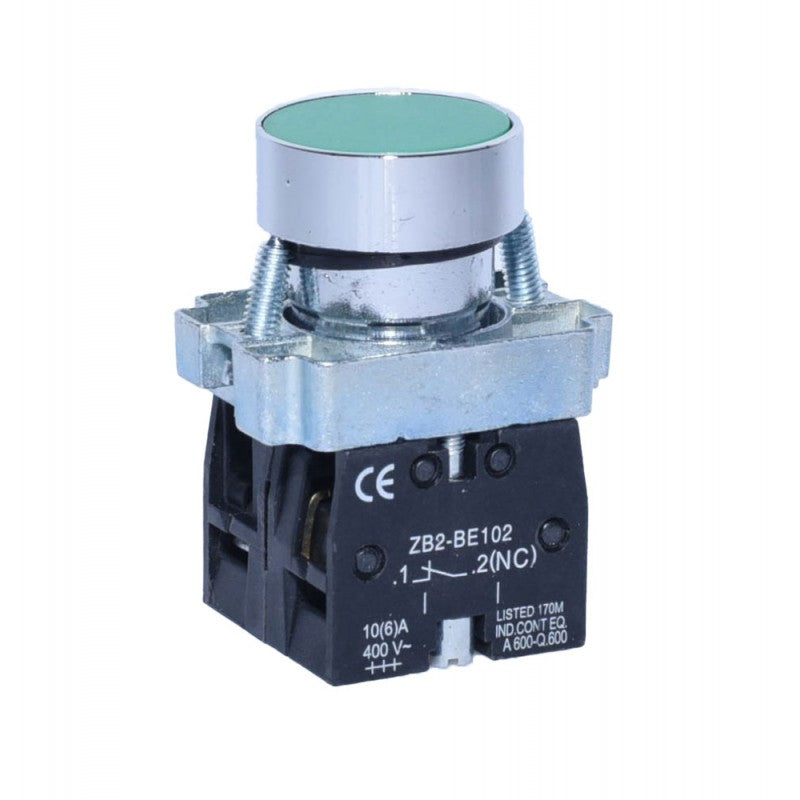

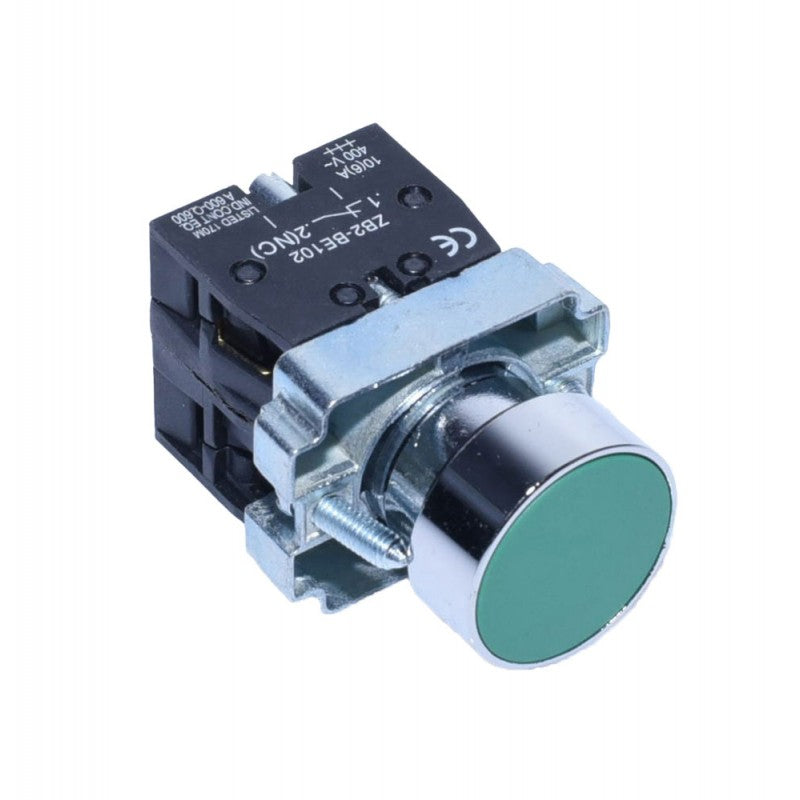

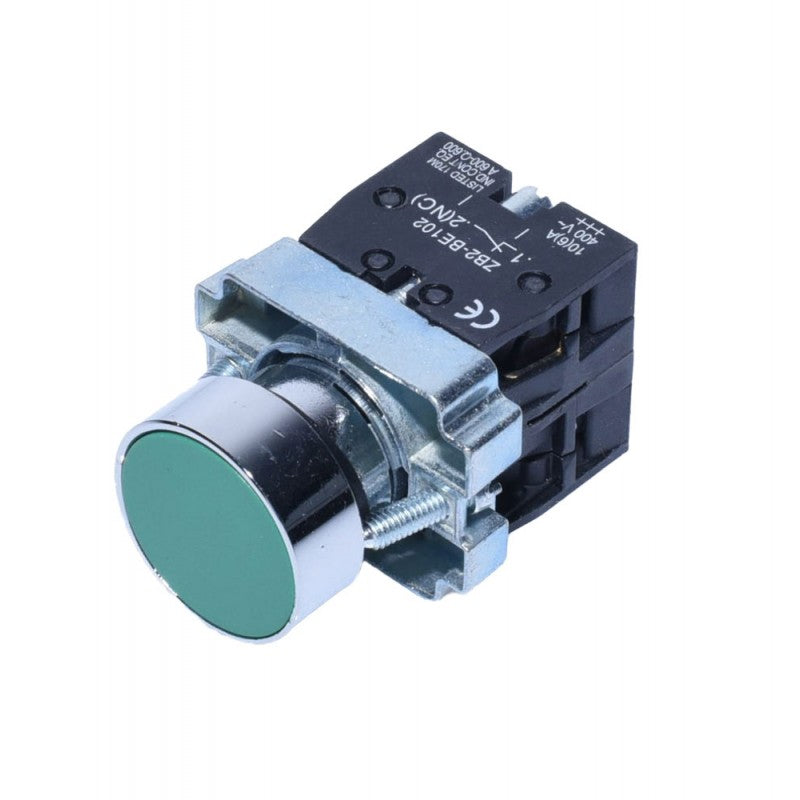

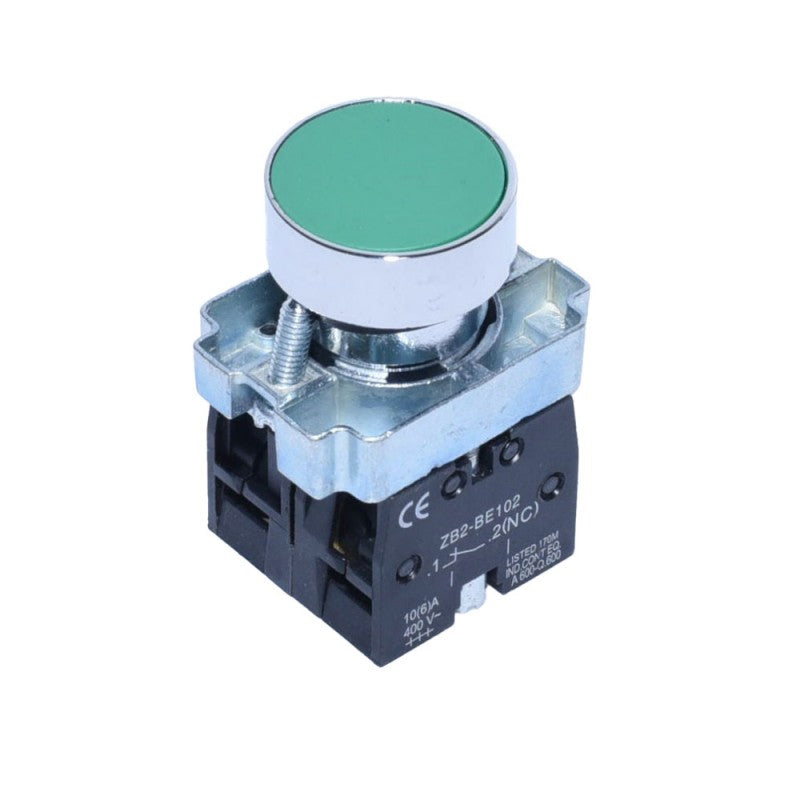

Green Push Button Motor Switch BA35 10A
Out of stock
-
Estimated delivery: 08 Jun - 12 Jun
Green Industrial Push Button 10A for Motors and Machinery
The BA35 Green Push Button is a reliable solution for manual control of electric motors, pumps, hydrophores, and production machinery. Featuring an NC (normally closed) contact and automatic return upon release, this 22mm panel-mount button ensures precise and safe control in industrial or domestic applications. Its robust metal construction and CE certified ZB2-BE102 contact block make it suitable for demanding environments.
What you get with this product
- Direct and immediate control of the motor or machinery — contact is made instantly upon pressing, with no additional effort required
- Automatic return upon release — the button does not remain stuck in the pressed position, eliminating the risk of accidental startup
- Compatible with a wide range of equipment — electric motors, water pumps, hydrophores, elevators, cutting and sawing machines
- Durable metal construction — chrome-plated housing and fire-retardant contact block, suitable for intensive industrial use
- Quick panel mounting — standard 22mm hole, secured with included nut, no special tools required
- CE certification and 600V rating — the BA35 push button complies with European standards and can be used in industrial electrical panels
How it works and how to install it
The BA35 Green Push Button operates on the momentary contact principle: when pressed, the NC (normally closed) circuit opens, and upon release, it automatically returns to its initial state. Installation is done by a 22mm circular cutout in the control panel, after which the button is secured with the included tightening nut. Electrical connections are made via the screws on the ZB2-BE102 contact block, accessible directly, without specialized tools.
Frequently Asked Questions
Does the button stay pressed after I push it or does it return automatically?
It automatically returns to its initial position immediately after release — it is a momentary push button, not a latching switch.
What diameter hole do I need to make in the control panel?
A 22mm circular cutout is required, which is a standard size for XB2/BA series buttons.
Can it be used with a hydrophore or three-phase water pump?
Yes, the button supports up to 10A at 400V and can be integrated into the control circuit of single-phase pumps or in conjunction with contactors for three-phase applications.
Technical Specifications
| Model | XB2-BA35 |
| SKU | Q-6E064 |
| Contact type | 1NO / 1NC (NC — normally closed) |
| Number of contacts | 4 contacts |
| Contact block | ZB2-BE102 |
| Action type | Momentary push button |
| Rated current | 10(6)A |
| Rated voltage | 400V AC |
| Rated insulation voltage | 600V |
| Panel mounting diameter | 22mm |
| Product dimensions | 54 x 40 x 30 mm |
| Button color | Green |
| Certification | CE |
| Package contents | 1x BA35 Green Push Button 10A |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is fast via courier, with shipping confirmation and tracking included.
