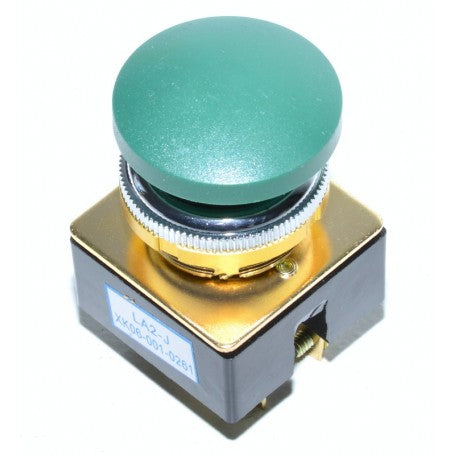

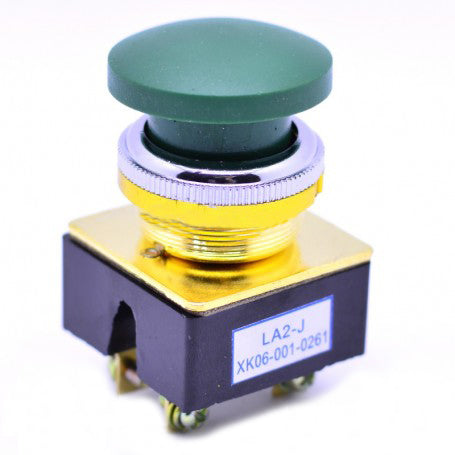

Push Button Motor 5A Momentary Green
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
5A Industrial Push Button Non-Latching, Momentary Contact
The LA2-J green push-button switch is a reliable solution for controlling industrial electrical circuits, contactors, and electromagnetic starters. With momentary (non-latching) action, the command is active only while pressed, making it ideal for applications where safety and precise control are essential. The flame-retardant body and rubber head ensure durability in demanding environments.
What you get with this product
- Precise command control — the button transmits a signal only while pressed, eliminating the risk of accidental circuit locking
- Compatible with a wide range of equipment — works directly with contactors, relays, electromagnetic starters, and other 250V AC circuits
- Robust construction with a 36 mm threaded mounting ring — stable mounting on control panels, electrical cabinets, or metal enclosures
- Green mushroom-head rubber cap — easy to visually identify and operate quickly, even with protective gloves
- Flame-retardant body material — reduces the risk of flame spread in case of electrical overload

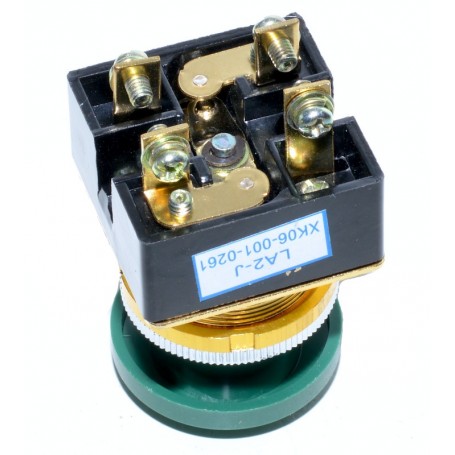

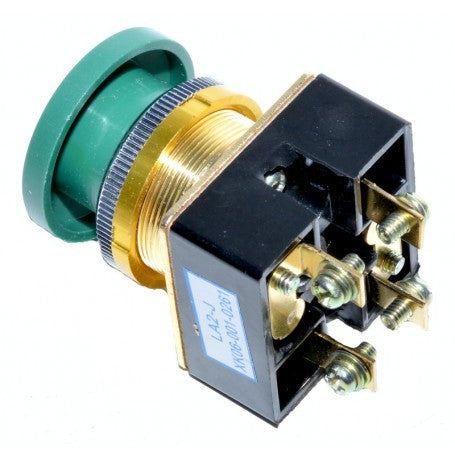

- Accessible screw connections on all four sides of the contact block — fast and secure wiring without special tools
How it works and how to install it
The non-latching push button operates on the principle of momentary contact: when pressed, the normally closed contact (1 NC) changes state and sends a command to the connected circuit, automatically returning to its original position when released. Installation is done by inserting the body into the panel opening (minimum 36 mm threaded diameter) and securing it with the included ring nut, followed by connecting the wires to the screw terminals of the contact block. No special tools or advanced electrical knowledge are required, but work on electrical panels must be carried out with the power disconnected and, if necessary, by qualified personnel.
Frequently asked questions
Does the button stay pressed after I activate it or does it return on its own?
It automatically returns to its initial position as soon as you release the press — it is a non-latching (momentary) button, not a locking switch.
What diameter opening do I need in the control panel to mount it?
An opening compatible with a 36 mm diameter mounting thread is required; the button body has basic dimensions of 40 x 40 mm.
Can it also be used for 24V DC circuits or only for 250V AC?
The manufacturer's specifications indicate a nominal voltage of 250V AC; for DC applications or different voltages, check compatibility with your circuit before installation.
Technical specifications
| Model | LA2-J |
| SKU | Q-6E015 |
| Actuation type | Mushroom push button, non-latching (momentary) |
| Contact type | 1 NC (normally closed) |
| Working voltage | 250V AC |
| Working current | 5A |
| Overall height | 68 mm |
| Base dimensions | 40 x 40 mm |
| Mounting thread diameter | 36 mm |
| Body material | Flame-retardant material |
| Button head material | Rubber |
| Button head color | Green |
| Package contents | 1 x green 5A non-latching motor push button |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is fast by courier, with shipping confirmation and package tracking possibility.
