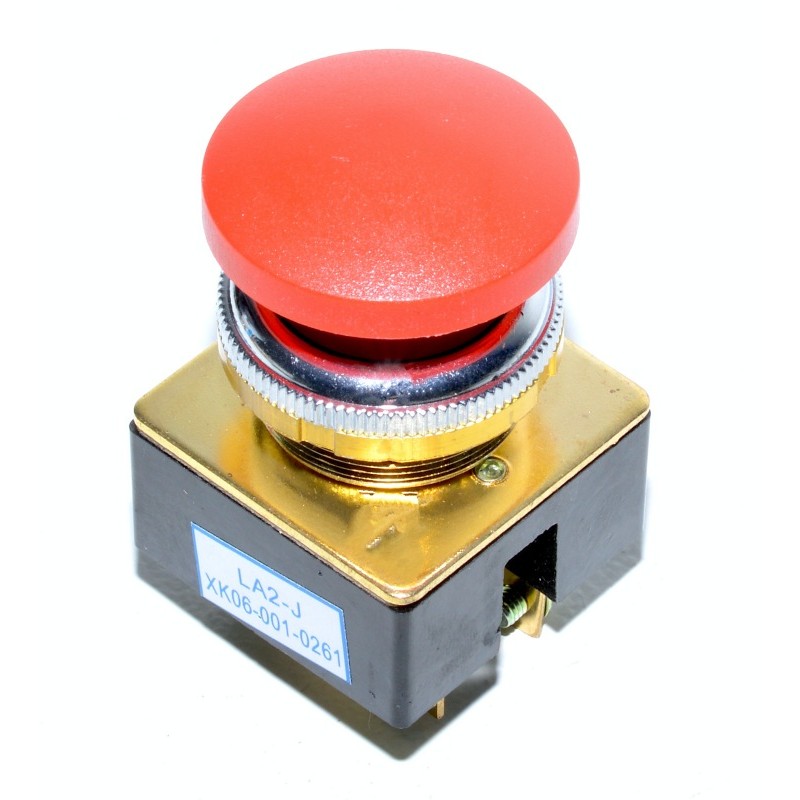

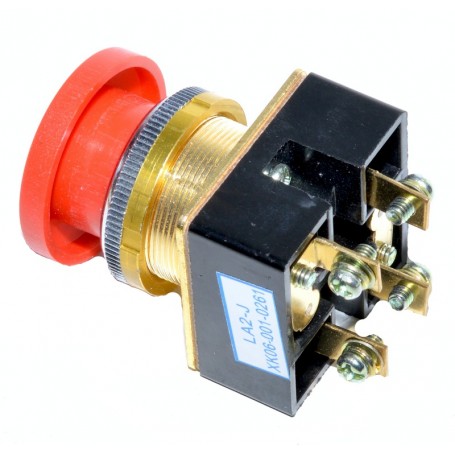

Push Button Engine 5A Non-Latching Red
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Industrial mushroom push button, 5A, non-latching
The red 5A non-latching motor push button is a reliable solution for controlling industrial electrical circuits, with momentary action and automatic return to the initial position. Suitable for control panels, electrical cabinets, and equipment with contactors or relays, it ensures quick and safe switching with every press. The robust construction with a flame-retardant casing and brass contacts makes it suitable for use in demanding industrial environments.
What you get with this product
- Precise circuit control — the contact closes only while the button is pressed, with no risk of accidental locking in the ON position
- Directly compatible with electromagnetic starters, contactors, and relays — no additional modifications needed during installation
- Flame-retardant casing and red rubber cap — resistance to mechanical shocks and quick visual identification in the control panel
- High-reliability brass contacts — stable contact resistance over time, without accelerated oxidation
- Simple 36mm threaded mounting — integrates into standard industrial panel openings without adapters
- Compact dimensions 40 x 40 mm — takes up minimal space in the electrical cabinet, compatible with existing installations
How it works and how to install it

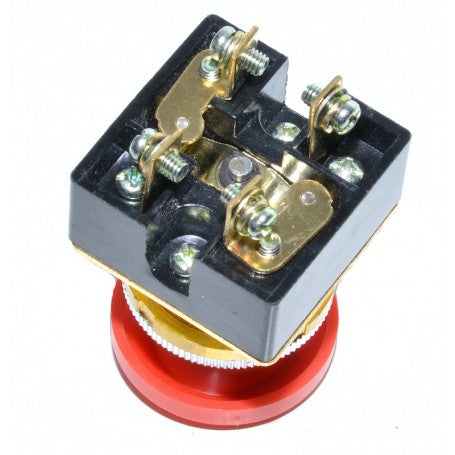

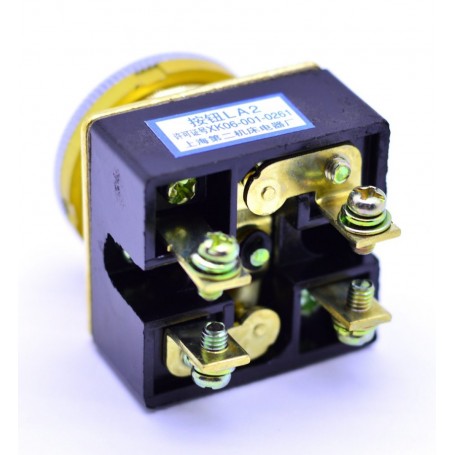

The button operates on the principle of momentary contact: when pressed, the normally closed (1 NC) contact opens and interrupts the circuit, automatically returning to the initial position upon release. Installation is done by inserting the 36mm thread into the panel opening and tightening the included fixing nut, after which the wires are connected to screw terminals, visible in the product images. No special tools or advanced electrical knowledge are required for mounting.
Frequently asked questions
Does the button stay locked in the pressed position or does it return automatically?
It automatically returns to the initial position as soon as you release the pressure — it is a non-latching, momentary action button.
What diameter should the panel opening have for mounting?
The mounting thread has a diameter of 36 mm, so the panel opening must be compatible with this size.
Can it also be used with direct current (DC), not just AC?
The specified technical data is for 250V AC / 5A. For use on DC, check compatibility with your circuit parameters before mounting.
Technical specifications
| Model | LA2-J |
| SKU | Q-6E016 |
| Actuator type | Mushroom, non-latching |
| Contact type | 1 NC (normally closed) |
| Contact | Momentary |
| Operating voltage | 250V AC |
| Operating current | 5A |
| Total height | 68 mm |
| Housing diameter | 40 x 40 mm |
| Mounting thread diameter | 36 mm |
| Housing material | Flame-retardant plastic |
| Button cap material | Red rubber |
| Contact material | Brass |
| Color | Red |
| Package contents | 1 x Red 5A Non-Latching Motor Push Button |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with Romanian legislation. We accept returns within 30 days of receiving the order, no justification required. Delivery is carried out quickly by courier, with dispatch confirmation and parcel tracking available.
