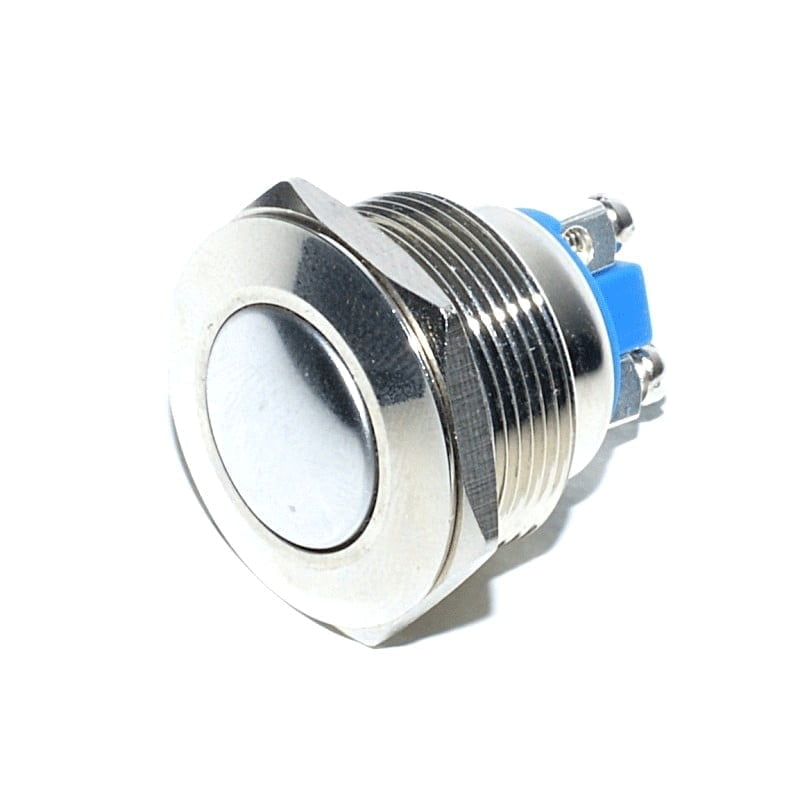

Simple Metal Push Button, Momentary, 22mm, 220V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
22mm metal push button, non-latching, for industrial applications
The 22mm non-latching metal push button is a robust solution for manual control in electrical panels, machinery, and industrial equipment. Its nickel-plated metal casing ensures superior mechanical resistance compared to plastic alternatives, maintaining functionality even in environments with vibrations or frequent use. Simple screw connection and included mounting nut allow for quick integration into any 220V control panel.
What you get with this product
- Momentary contact — the button automatically returns to its initial position upon release, ideal for impulse control without accidental locking
- Nickel-plated metal construction — resistant to mechanical wear, impacts, and corrosion compared to plastic buttons
- Quick panel mounting — standard 22mm hole and included mounting nut, no specialized tools required
- Compatible with 220V / 3A networks — operates directly on mains voltage without an additional transformer
- Reliable screw connection — screw terminals eliminate the risk of accidental wire disconnection in vibrating environments
- Compact profile — 28mm height allows installation in shallow panels
How it works and how to install
The button operates on the principle of normally open (NO) contact: the circuit closes only while the button is pressed, automatically returning to open upon release. Installation involves three simple steps — drill or verify a 22mm hole in the control panel, insert the button and tighten the mounting nut, then connect the wires to the two screw terminals. Advanced electrical knowledge is not required, but work on 220V installations must be performed with the power disconnected.
Frequently asked questions
Does the button stay pressed after I push it, or does it return on its own?
It automatically returns to its initial position as soon as you release it — it is momentary (non-latching), not a locking switch.
Does it have a built-in LED light?
No, this model does not include an LED. It is a simple button without illumination, making it suitable for applications where visual signaling is not required.
What diameter hole do I need in the panel for mounting?
A hole of exactly 22mm is required. The mounting nut included in the package secures the button to panels of standard thickness.
Technical specifications
| SKU | Q-6D032 |
| Type | Non-latching push button (momentary) |
| Supply voltage | 220V |
| Maximum current | 3A |
| Contact type | NO (Normally Open) |
| Number of contacts | 2 |
| Connection type | Screw terminal |
| Mounting diameter | 22mm |
| Overall diameter | 25mm |
| Height | 28mm |
| Built-in LED | No |
| Housing material | Nickel-plated metal |
| Fixing | Mounting nut included |
| Package contents | 1 x 22mm metal push button |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Free returns within 30 days if the product does not meet expectations. Fast courier delivery throughout Romania, with order tracking available.
