Push Metal Button 22mm with RETURN, 220V-10A, Green LED, ElectroAZ
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

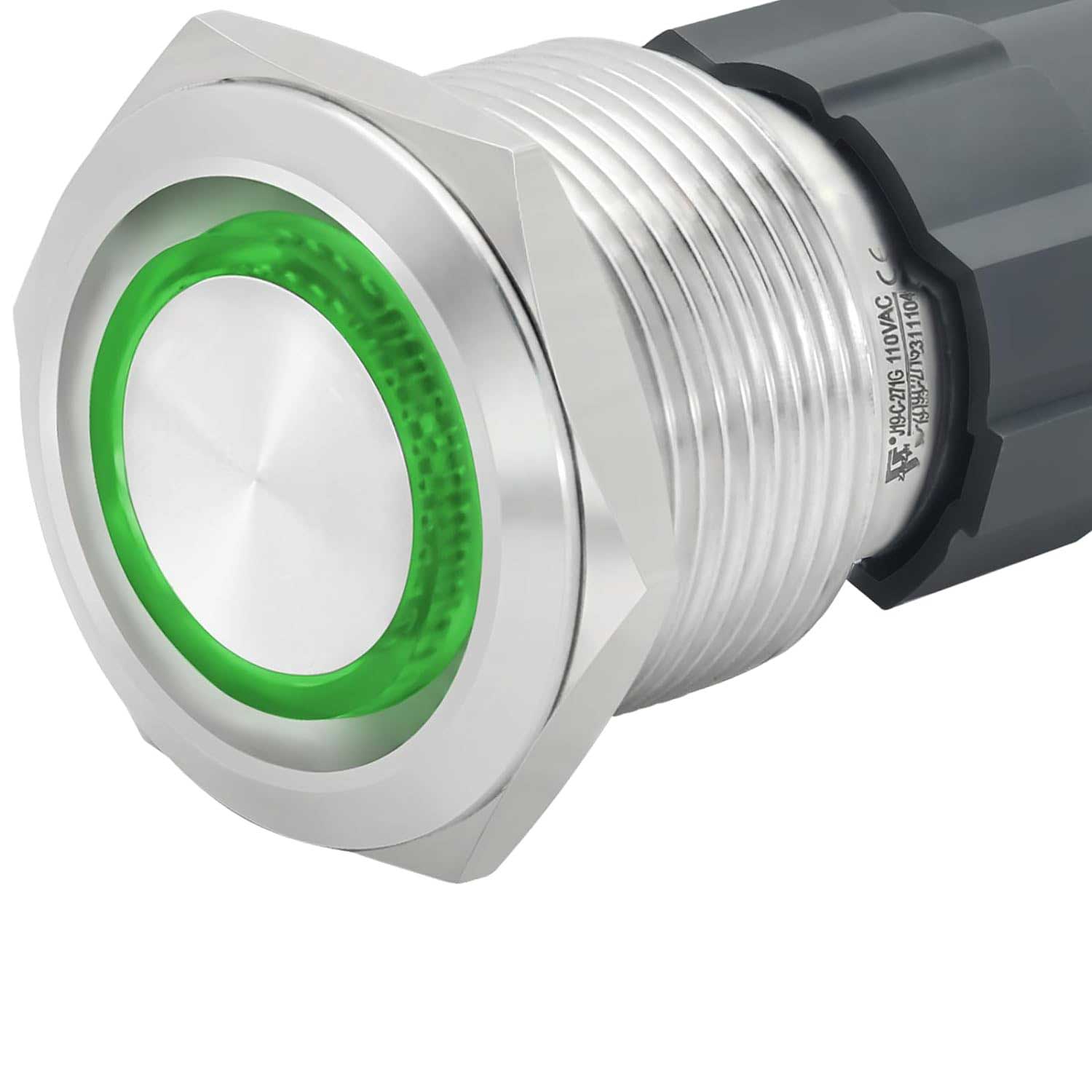

22mm Metal Push Button with Green LED for Industrial Installations
The 22mm metal push button with momentary action is designed for industrial applications requiring high reliability and mechanical resistance. With 220V power supply and 10A capacity, it integrates into automation panels, self-service car washes, vending machines, and HORECA equipment. The 304/316 aluminum housing and IP65 protection rating make it suitable for both wet environments and areas at risk of vandalism.
What you get with this product
- Safe operation in wet and dusty environments — certified IP65 protection, no risk of infiltration or corrosion
- IK09 anti-vandalism rating — 304/316 aluminum housing resists strong mechanical impact
- Connection flexibility — 6 pins with double NO and NC contacts, adaptable to existing electrical diagrams
- Clear visual status indication — the illuminated green LED ring quickly signals if the circuit is active
- Quick installation without additional modifications — standard M22mm thread, removable nut and rubber gasket included
- Gold-plated silver alloy contacts — improved conductivity and extended lifespan in intensive use
How it works and how to install
The momentary push button activates the contact only while pressed, automatically returning to its initial position upon release — ideal for momentary start or stop commands. Installation is done in a 22mm hole by screwing with the included nut, without special tools. The 6 pins are divided into 2 for LED power and 4 for NO/NC contacts, allowing direct connection according to the control panel's schematic.
Frequently Asked Questions
Does the button also work at 12V or 24V DC for the LED?
The LED of this button is calibrated for 220V AC power. For 12V or 24V DC voltages, a variant specifically for these voltages is required.
Can I use this button in a car wash exposed to water jets?
Yes, IP65 protection ensures sealing against direct water jets, making it suitable for self-service car washes and other high-humidity environments.
What is the difference between NO and NC contacts and how do I choose?
NO (normally open) means the circuit closes only when pressed, and NC (normally closed) means the circuit is permanently closed and opens when pressed. The choice depends on the operating logic of your control panel.
Technical specifications
| SKU | EAZ-BP057 |
| Mounting diameter | 22 mm |
| Thread | M22 mm |
| LED supply voltage | 220V AC |
| Maximum current | 10A |
| Button type | Momentary push button |
| LED color | Green |
| Number of pins | 6 pins (2 LED + 4 contact) |
| Contact type | 1NO + 1NC |
| Housing material | Aluminum 304/316 |
| Contact material | Gold-plated silver alloy |
| Protection class | IP65 |
| Anti-vandalism class | IK09 |
| Actuation pressure | 500 gf |
| Button profile | Flat |
| Brand | ElectroAZ |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the package, with no additional costs. Delivery is carried out quickly by courier, with dispatch confirmation and tracking included.
