Red LED Metal Push Button, Latching, 19mm, 220V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

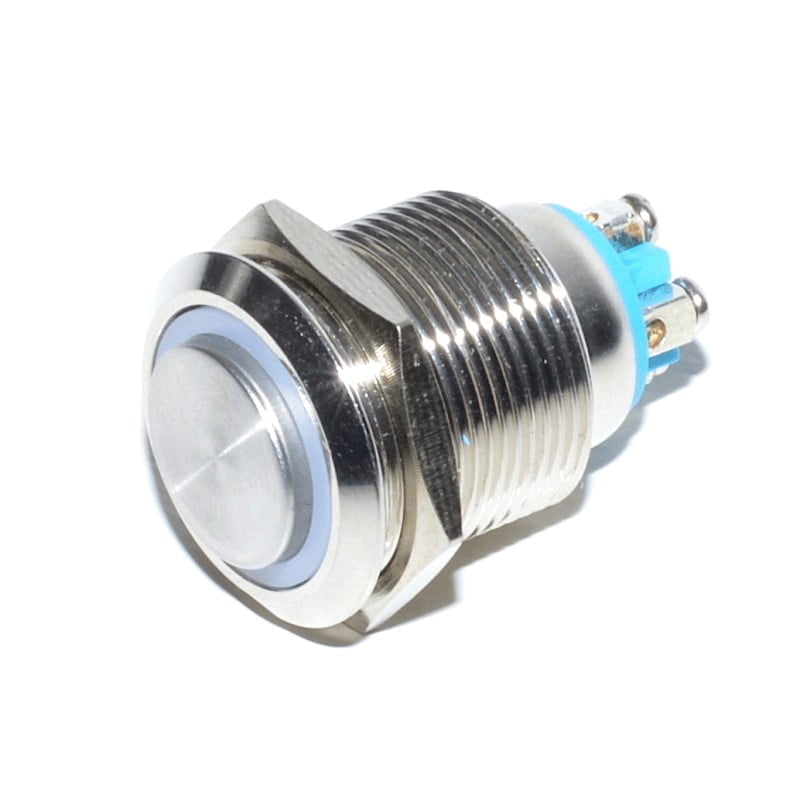

Latching Metal Push Button with Red LED, 19mm, 220V
This metal push button with a red LED and latching action is a robust solution for industrial applications, electrical panels, or equipment requiring visual indication of active status. The stainless steel body ensures high mechanical resistance, while the red illuminated ring provides a clear indication of the circuit's status. Compatible with 220V mains voltage, it installs easily in any panel with a 19mm cutout.
What you get with this product
- Immediate visual confirmation of active status — the red LED ring remains lit as long as the button is latched in the actuated position
- Stainless steel body resistant to mechanical shocks and corrosion, suitable for demanding industrial environments
- Operates directly at 220V — no separate power supply needed for the LED
- Quick installation with a standard 19mm cutout and included nut fastening, no special tools required
- Secure connection via screw terminals — 4 accessible NO (normally open) contacts, suitable for control circuits
- Compact format — total height of 31mm, integrates into panels or enclosures with limited space
How it works and how to install it
The button operates via mechanical latching: upon the first press, the circuit closes and the red LED illuminates, remaining in this state until the next press, which releases the contact. Installation involves creating a 19mm cutout in the desired panel, inserting the button, tightening the fastening nut, and connecting the wires to the screw terminals according to the NO scheme. The entire operation does not require advanced electrical knowledge, but working with 220V necessitates adherence to electrical safety regulations.
Frequently Asked Questions
What does NO contact mean and how do I connect it correctly?
NO (Normally Open) means that the circuit is open at rest and closes only when the button is pressed and latched. You connect the control wires to the two NO contacts, and the LED is powered from the dedicated terminals marked on the button body.
Does the red LED work automatically or does it have a separate power supply?
The LED is powered at 220V through its own terminals on the button and illuminates automatically when the circuit is closed, without the need for an additional external source.
Is it suitable for outdoor use or in wet environments?
The metal body offers good resistance to mechanical wear, but the product does not have a certified IP rating mentioned in the specifications. Therefore, use in protected environments or enclosed panels is recommended.
Technical Specifications
| Supply Voltage | 220V AC |
| Maximum Current | 3A |
| Actuation Type | Latching Push |
| Contact Type | NO (Normally Open) |
| Number of Contacts | 4 |
| LED Color | Red |
| Mounting Diameter (Cutout) | 19mm |
| Overall Diameter | 22mm |
| Total Height | 31mm |
| Body Material | Stainless Steel |
| Connection Type | Screw Terminals |
| Fastening | Mounting nut included |
| SKU | Q-6D027 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with Romanian law. We accept returns within 30 days of receipt, provided the product is in its original condition. Delivery is made quickly by courier, with delivery confirmation.
