Red LED Metal Push Button, Latching, 16mm, 220V
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

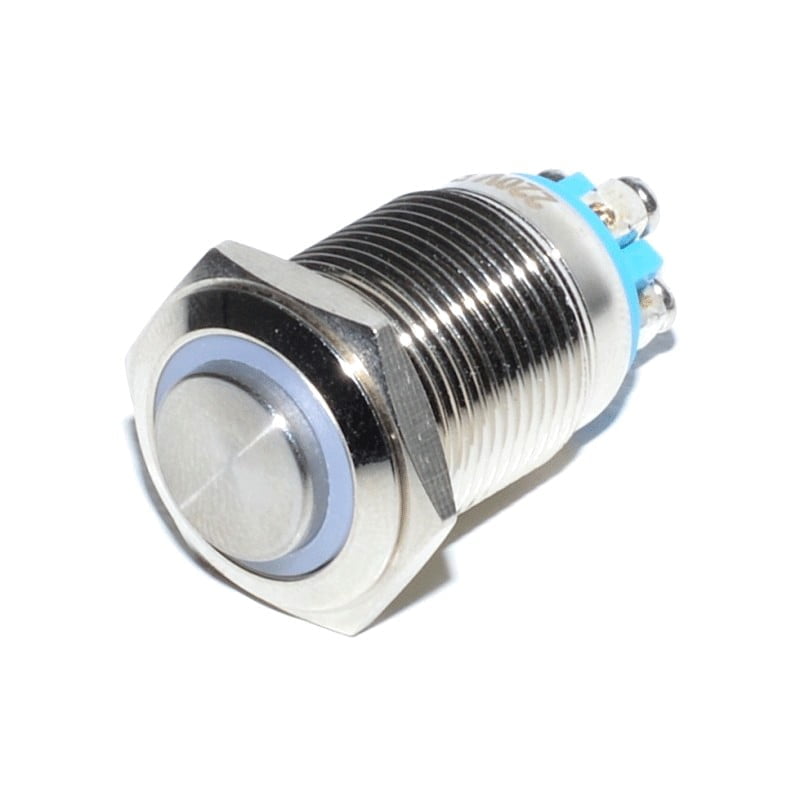

16mm Metal Push Button with Red LED and Latching Function, 220V
The metal push-button with red LED and latching function is a robust solution for industrial control panels, automation systems, or electrical equipment that requires a durable and easily identifiable control element. The brushed stainless steel housing resists mechanical wear and demanding work environments. The red illumination of the indicator ring ensures immediate visibility of the activation status, even in low light conditions.
What you get with this product
- Clear and permanent control — the latching function keeps the circuit closed after a single press, without needing to continuously hold the button down
- Quick status identification — the red LED ring illuminates actively when the button is engaged, eliminating confusion in panels with multiple controls
- Robust construction resistant to mechanical stress — the stainless steel metal body withstands vibrations, impacts, and intensive use in industrial environments
- Simple mounting in any panel with a 16mm hole — mounting nut included, screw connections without special tools
- Directly compatible with 220V mains — does not require a separate power supply for the LED, operates directly from the main circuit
- Compact format with 4 contacts — allows flexible NO/NC connections in automation schemes or electrical panels
How it works and how to install
The button is mounted in a 16mm hole drilled in the control panel, secured with the included nut, and connected via screw terminals to the control circuit and the 220V power supply for the LED. Upon the first press, the contact closes and remains in this position — the latching function maintains the state — and a second press disengages the mechanism and opens the circuit. Connection is straightforward, without advanced electrical knowledge, by following the wiring diagram of the equipment it integrates into.
Frequently Asked Questions
What is the difference between a latching button and a momentary button?
A latching button remains in the pressed position after you release your finger, keeping the circuit closed until the next press. A momentary button automatically returns to its initial position as soon as it is no longer pressed.
Does the LED require a separate power supply or does it operate from the same circuit?
The LED is powered directly by 220V through the dedicated terminals of the button; it does not require a separate voltage source or external resistors.
What is the maximum panel thickness this button can be mounted on?
The total height of the button is 30mm, and the threaded body allows mounting in panels of common thicknesses up to approximately 10-12mm, depending on the available thread length after the 16mm hole.
Technical Specifications
| SKU | Q-6D028 |
| Type | Latching push button |
| Mounting diameter | 16 mm |
| Body diameter | 18 mm |
| Total height | 30 mm |
| Supply voltage | 220V AC |
| Maximum current | 3A |
| LED indicator color | Red |
| Contact type | NO (Normally Open) |
| Number of contacts | 4 |
| Connection type | Screw |
| Body material | Stainless steel |
| Fixing | Mounting nut included |
| Package contents | 1 x metal push button with red LED and latching function |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days of receiving the order, without requiring a reason. Fast courier delivery throughout Romania.
