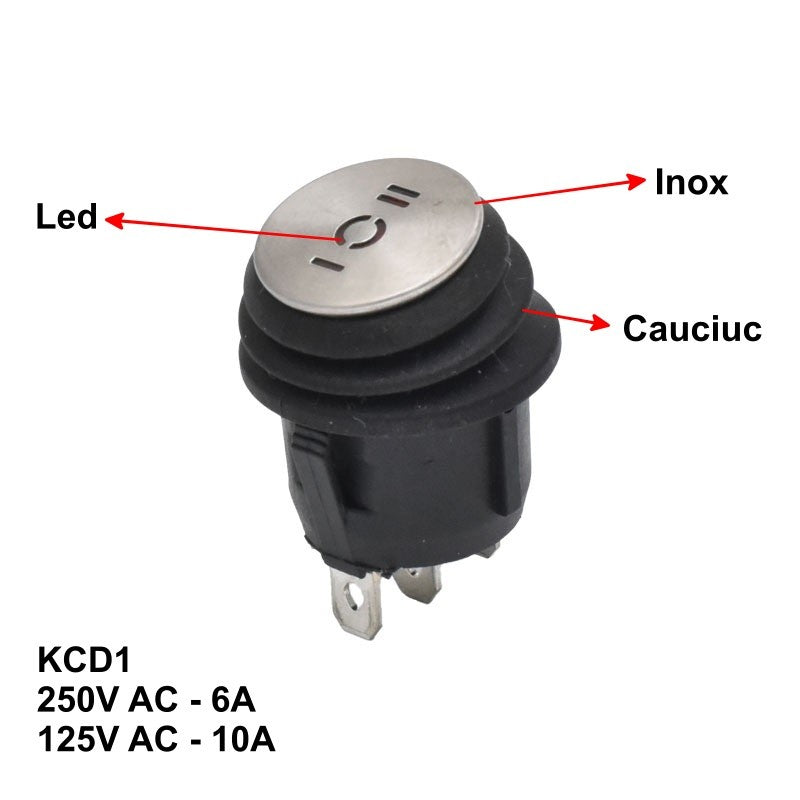

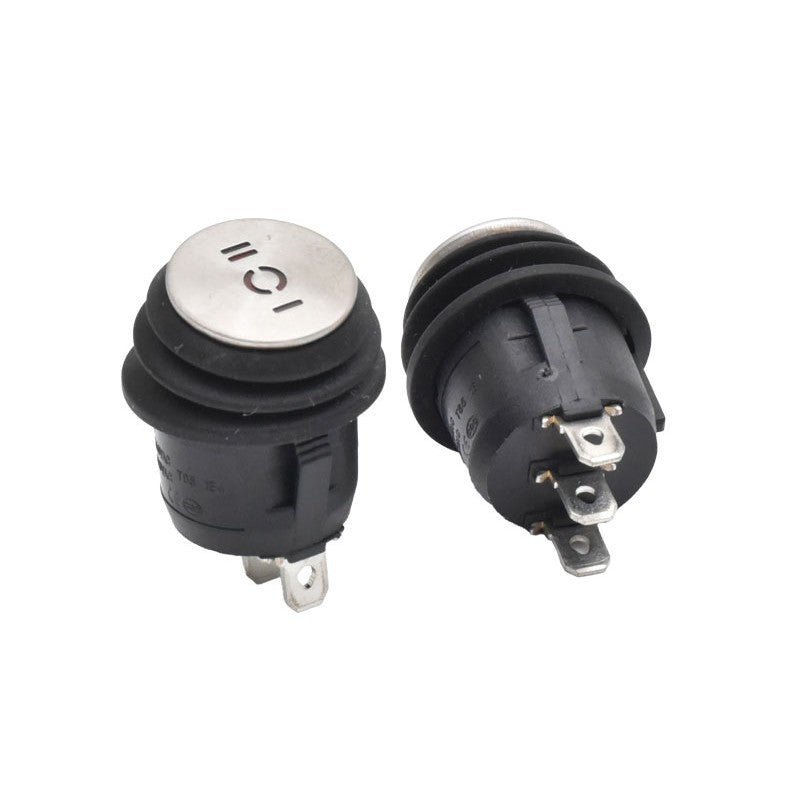

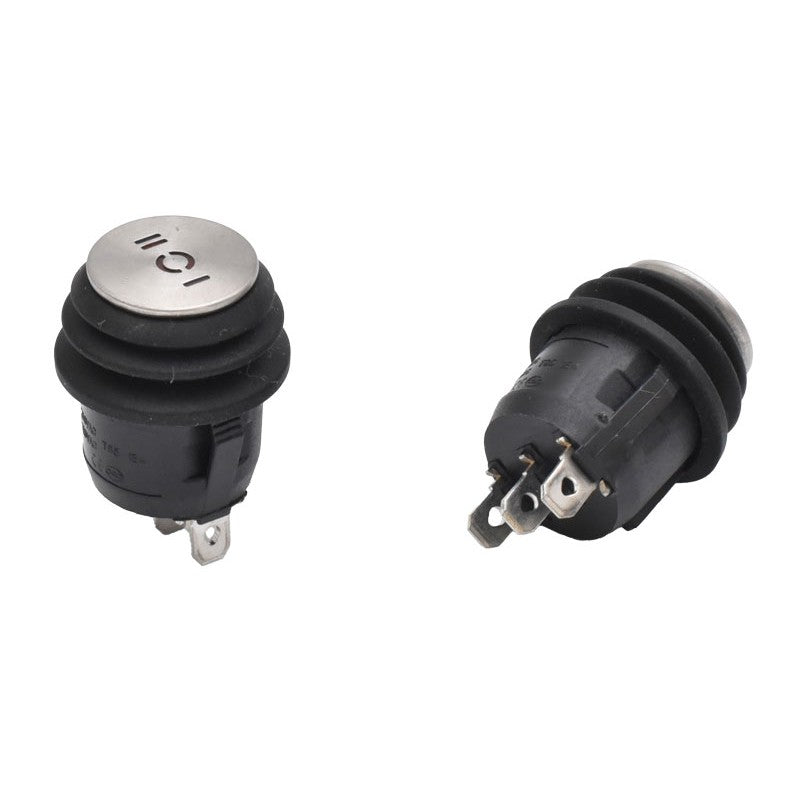

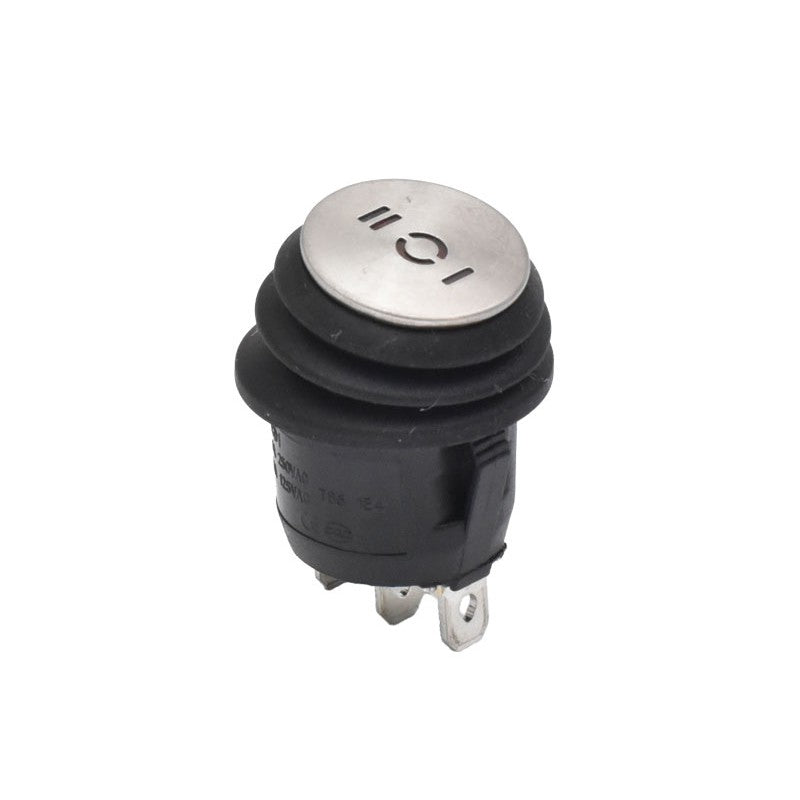

Stainless Steel Button, Round, 6A, LED, 3 Positions, 20x33mm
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun
Stainless Steel 3-Position Button for Precise Control
This round switch with IP67 protection offers reliable control in industrial and domestic applications. With a stainless steel cap, signaling LED, and water and dust-resistant construction, it's the perfect solution for machines, pumps, power tools, or lighting systems. Quickly mounted in 20mm cutouts, it supports loads of up to 6A at 250V.
What you get with this product
- Complete IP67 protection against water and dust — functions in wet or dusty environments without damage
- Integrated red LED for visual status signaling — instantly identifies if the circuit is active
- Corrosion-resistant stainless steel cap and protective rubber — increased resistance to wear and difficult conditions
- 3 On-Off-On switching positions — controls two independent circuits from a single command point
- Quick installation in a 20mm hole — easily installed in metal or plastic panels up to 5mm thick
- Supports loads of 6A at 250V or 10A at 125V — compatible with small motors, pumps, lights, or solenoid valves
How it works and how to install it
The button works with 3 electrical contacts that allow switching between two active states and a central off position. Installation is done by cutting a 20mm hole in the desired panel, inserting the button, and securing it with the nut from behind. You connect the wires to the 3 terminals according to your circuit diagram — the upper and lower positions activate different circuits, and the central position interrupts the power supply. The red LED automatically lights up when the circuit is energized.
Frequently Asked Questions
Can I use the button outdoors or in wet areas?
Yes, IP67 protection ensures resistance to water and dust, making it suitable for outdoor use or in high-humidity environments.
What is the maximum current the button can handle?
It supports 6A at 250V AC or 10A at 125V AC. For larger loads, use an intermediate relay.
Does the LED power separately or is it connected to the main circuit?
The LED is integrated into the button and lights up automatically when the circuit is energized, with no separate power supply required.
Technical specifications
| Dimensions | 20 x 33 mm (mounting diameter x total height) |
| Maximum amperage | 6A at 250V AC / 10A at 125V AC |
| Number of contacts | 3 contacts |
| Switching type | On-Off-On (3 positions) |
| Protection | IP67 (water and dust resistant) |
| Cap material | Stainless steel |
| Body material | Rubber and plastic |
| LED color | Red |
| Mounting hole diameter | 20 mm |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation. 30-day right of return without justification. Fast delivery by national courier in 1-3 working days.
