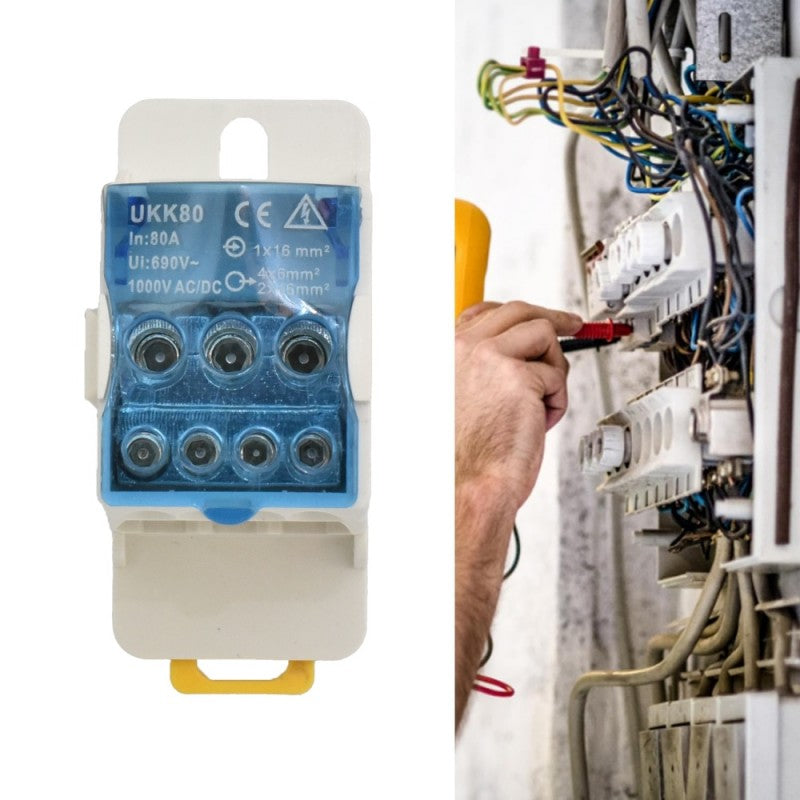

Distribution Terminal Block 80A - UKK80
Out of stock
-
Estimated delivery: 07 Jun - 11 Jun

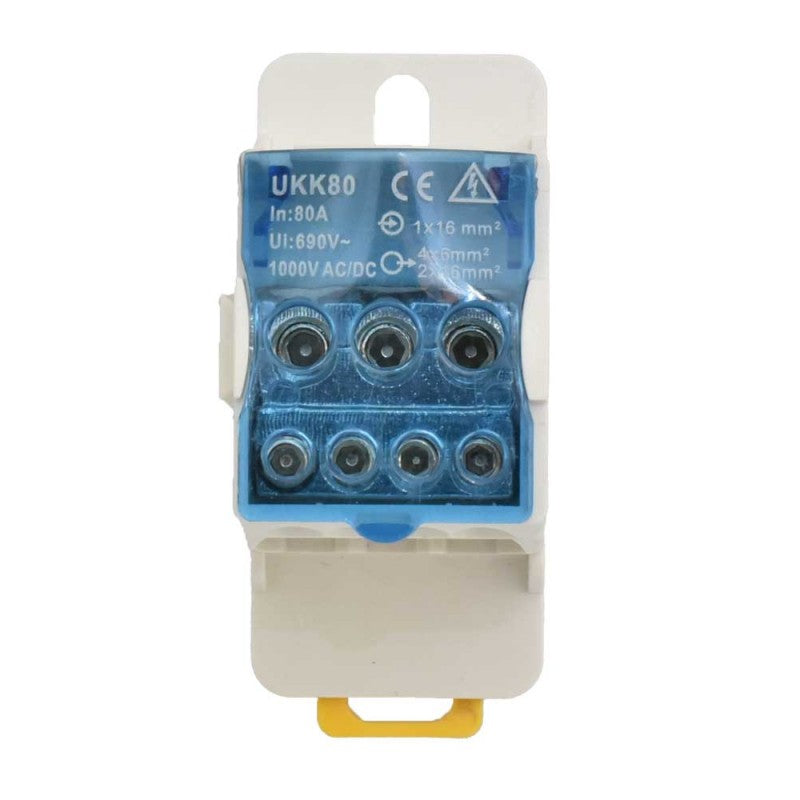

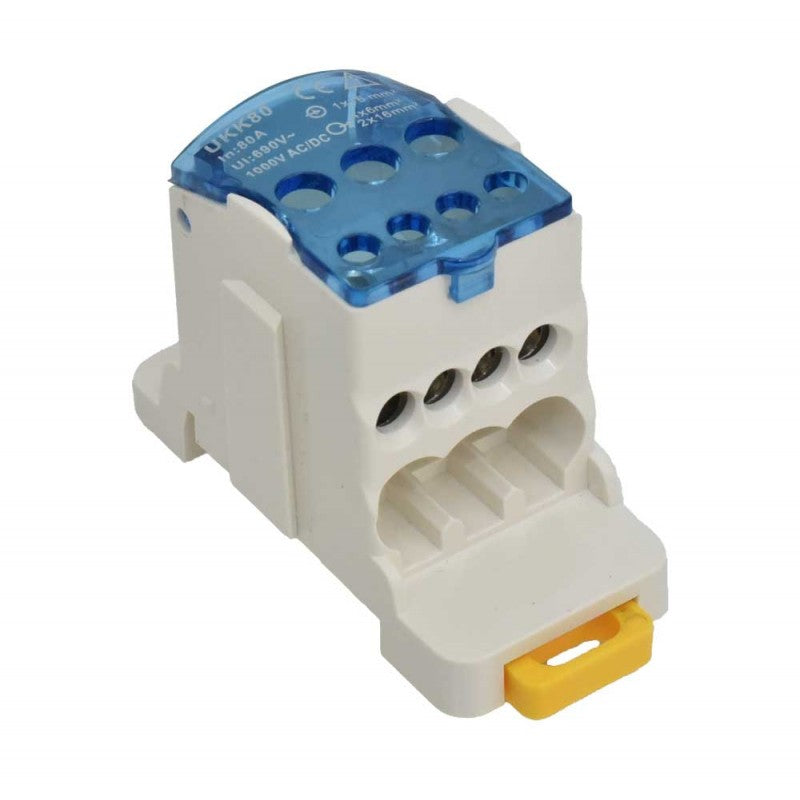

80A Distribution Terminal Block for Secure Branching
The UKK80 distribution terminal block allows a 16mm² main cable to be split into four 6mm² and two 16mm² wires, without leaks or overheating. It's ideal for distribution panels in homes, apartment buildings, commercial spaces, or warehouses where clear and secure electrical network branching is required. The flame-retardant casing and copper construction guarantee long-term reliability.
What you get with this product
- Branch a main cable into 6 separate circuits without risk of error or uninsulated contact, efficiently organizing the electrical installation
- Certified flame-retardant material that does not propagate flames, reducing fire risk in the electrical panel

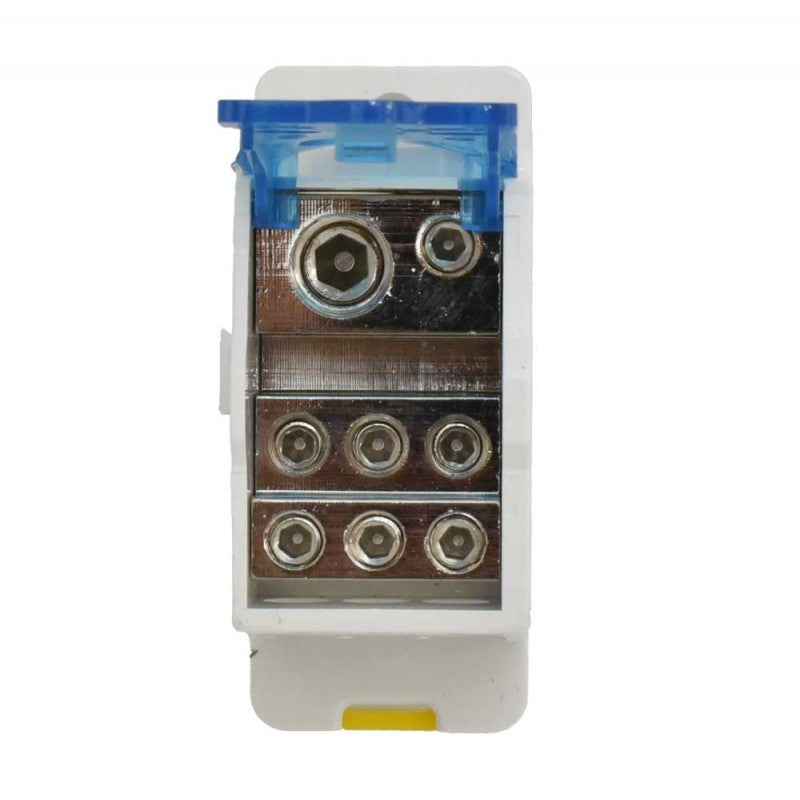

- Solid copper terminals ensure stable electrical contact and minimal resistance, eliminating energy losses

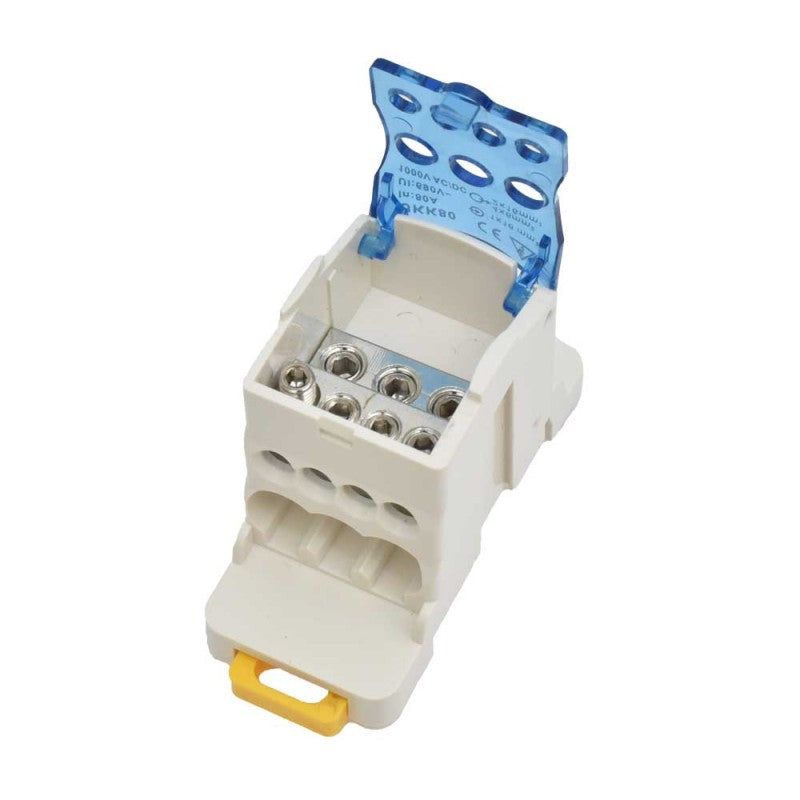

- Removable transparent cover with screws — quickly check connections without disconnecting wires
- Compatible with cables between 6mm² and 16mm², covering most standard residential and commercial installations
- Mounting on DIN rail or with dedicated supports, integrated directly into the existing panel without major modifications
How it works and how to install it
The terminal block distributes electrical current from a main cable to multiple secondary circuits through a screw terminal system. You insert the input cable into the upper terminals and the output cables into the lower terminals, tighten them firmly with a screwdriver according to the diagram on the casing, then secure the block to the DIN rail in the panel. The entire operation takes less than 10 minutes and does not require specialized tools — just a screwdriver and a voltage tester for verification.
Frequently asked questions
Can I connect more wires than the number of available terminals?
No, strictly adhere to the configuration: 1 x 16mm² input and a maximum of 6 outputs (2x16mm² + 4x6mm²). Overloading the terminals creates faulty contact and fire risk.
Is it mandatory to use a 16mm² cable for the input?
Not mandatory, but recommended to utilize the 80A capacity. You can also use 10mm² if your installation does not exceed 60A total.
Does the block heat up during normal operation?
At nominal current below 80A and properly tightened connections, heating is minimal. If you feel excessive heat, check the screw tightness and cable cross-section.
Technical specifications
| Model | UKK-80A |
| Rated current | 80A |
| Maximum voltage | 690V AC/DC |
| Input | 1 x 16mm² |
| Output | 2 x 16mm² + 4 x 6mm² |
| Terminal material | Electrolytic copper |
| Casing material | Flame-retardant ABS plastic |
| Dimensions | 80mm x 50mm x 29mm |
| Mounting | DIN rail or panel mounting |
| Certifications | CE |
Warranty and support
The product benefits from a 2-year warranty in accordance with Romanian law, covering manufacturing defects. You have the right to return within 30 days of receipt if the product does not meet expectations. Delivery is fast via national courier with telephone confirmation.
